Studer OnAir 3000 User Manual

OnAir 3000 Digital Mixing Console
Operation 5-83
Document generated: 10.10.14
SW V6.0
If the PFL signal is listened on the CR monitor speakers, it is automatically
cut on the internal Speaker.
If the CR red light is active, the internal speaker is automatically muted.
SP Level setting for the internal speaker.
TB RETURN If pressed, the corresponding contribution level to the internal speaker is indi-
cated on the LED ring around the SP knob and can be adjusted individually.
The mixing ratio of the PFL and talkback return signals also influences the
TB return on the DJ headphones.
MPX MASTER If pressed, the SP knob adjusts the level of the MPX conference signal in
the internal speaker, and the current level setting is indicated on the LED ring.
EXT PFL (If Configured on F... Key) For CAB system operation, a push-button switch can trigger the CAB system
to play the PFL signal. If the PFL signal is started from the CAB system’s
own user interface, a control signal is fed to the monitoring input which will
then route the external PFL signal to the PFL bus.
Any input can be configured to be the external PFL input. An external control
system such as a CAB system can activate the PFL sum to monitor an external
source.
The EXT PFL key is illuminated if a PFL control signal is applied to the external
input. If EXT PFL is pressed it toggles the external PFL control output.

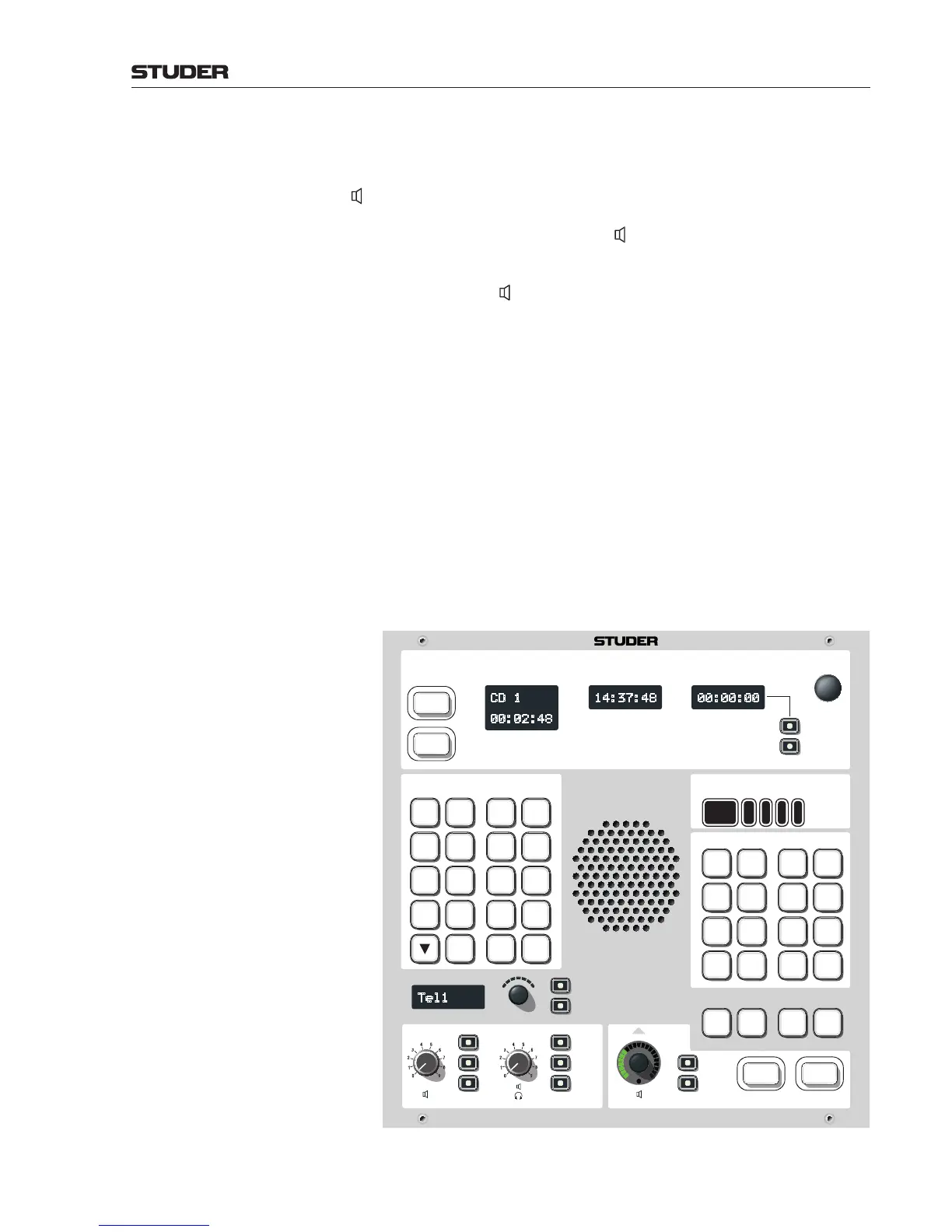

Extended Producer Module: Starting with SW V2.1, a separate fader stop watch can be configured for
every fader channel. This FADERSTART TIMER value can be, together with
the corresponding label, brought to the producer or host in the Studio using
the extended producer monitoring module. Next to the FADERSTART TIMER
display there are additional local STOP WATCH and TIME OF DAY displays.
Tel1
CD 1
00:02:48
14:37:48 00:00:00
MONO
CUT
DIM
MON
MON / PFL
PFL
TB RETURN
MPX MASTER
START
STOP
STOP WATCHTIME OF DAYFADERSTART TIMER
PFL TO MON
ADD
SELECT
MONITOR
TIMER SECTION
MIC OPEN
TALKBACK
AUX 1
AUX 2
NCR 1
NCR 2
AUX 3 NCR 3
NCR 4AUX 4
TEL 1
ON AIR CR 1 2 3
TEL 2
TEL 3
TEL 4
SUB
GRP 1
AUX 1 TEL 1
PGM
2
PGM
3
PGM
4
SUB
GRP 2
AUX 2 TEL 2
PFL AUX 3 TEL 3
RECORD AUX 4 TEL 4
PROGRAM
F 14F 12 F 13F 11
ON AIR
ON AIR
MIC KEY
TB HOST 1
START
TB HOST 2
