Studer OnAir 3000 User Manual

OnAir Digital Mixing Consoles
6-60 Conguration
Document generated: 10.10.14
SW V6.0

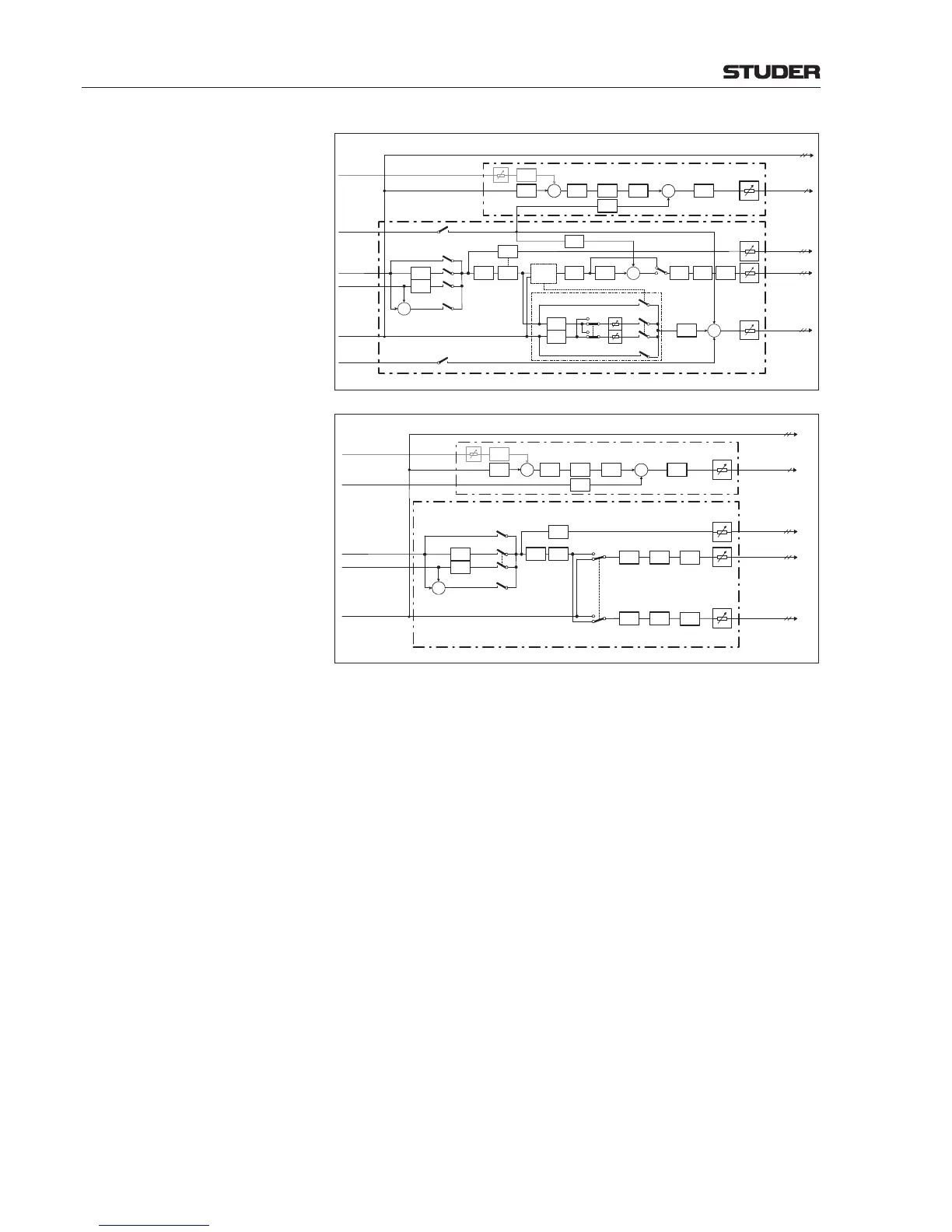

CR/ST1 Monitoring Mode I (DJ Headphones)
CR/ST1 Monitoring Mode II (Nearfield Speakers instead of DJ Headphones)
SP SRC
CUT
MONO
MPX
CUT
TB
DIM
CONTROL ROOM (or STUDIO 1)
NONE
SPLIT
ADD MODE
MONO MONO
Ø
MONO
MONO
MIX
MONITOR
PFL
CR/ST1 ADD SRC
CR/ST1 SP SRC / PFL
LSP
SWAP
MODE
TB to CR/ST1
MPX
CR/ST1 SRC
PFL CR (or STUDIO 1)
CR/ST1 SP
CUT
CUT
DIM
DIM
CUT DIM
CR/ST1 MON LSP
CR/ST1 NF LSP
CR/ST1 GUEST HP
CR/ST1 PFL
TB
CUT
+
+
+
SP SRC
CUT
MONO
MPX
CUT
TB
DIM
2xLSP
ON
2xLSP
ON
MPX
PFL CR (or STUDIO 1)
CR/ST1 SP
CUT DIM
CR/ST1 PFL
TB
CUT
+
+
TB
DIM
TB
DIM
TB
TB
TB
SP SRC
SP SRC
/ MON
CONTROL ROOM (or STUDIO 1)
NONE
SPLIT
CR ADD MODE
MONO MONOØ
MONO
MONO
MONO
MONO
MIX
HP SPLIT
with PFL SP
TALK
CR ADD SRC
CR SP SRC
MON to L
TALK
TB to CR
TB to CR HP
CR SRC
DIM
2xLSP
ON
CR MON LSP
CR DJ HP
CR GUEST HP
MON
CUT
TB
CUT
LSP
BAL
LSP
SPLIT
DJ HP MODE
+
+
+
CR / STx LSP Mode on RedLight Selects whether the CR or studio loudspeaker levels are attenuated (DIM),
muted (CUT) or remain unchanged (Nothing) as long as a microphone is
open (and, subsequently, the red light is on). Since SW V3.2, the CUT Allow
TB function has been added; it allows talkback to loudspeakers although
a microphone is open. This function is also known as ‘Re-Injection’ or
‘Rehearsal Mode’. Re-Injection mode may be activated either with desk keys
(up to 4 per location) or, if a main screen is available, with soft buttons at its
right edge.
OnAir 1500/2500: Studio 1 / Studio 3 not supported.
