OnAir Digital Mixing Consoles
6-146  Conguration
Document generated: 10.10.14
SW V6.0

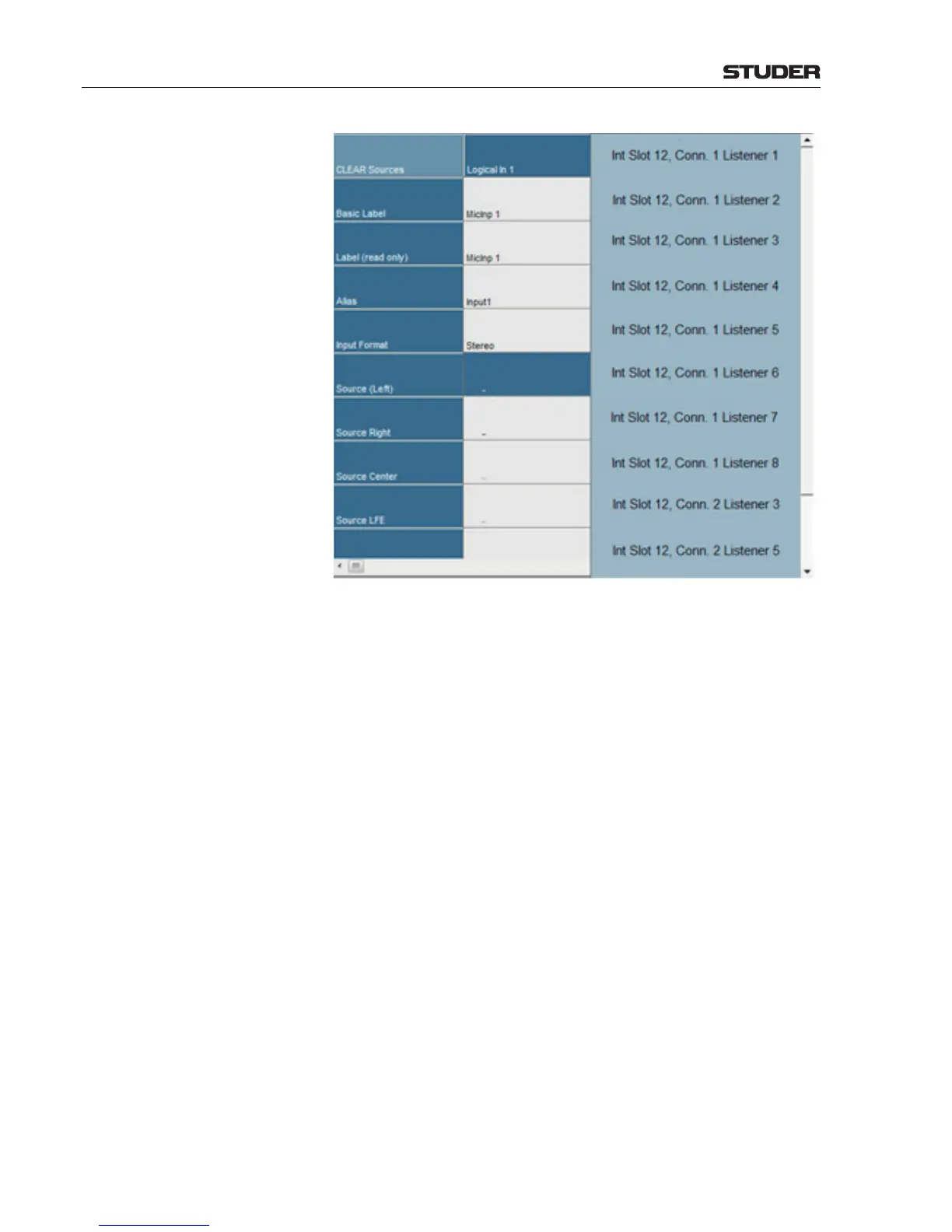

The Label of a Livewire Listener is unique.
It consists of the name of the D21m rack and the slot number, where the
Livewire I/O card is located, as well as the connector number and the index
of the Listener.
Since Livewire Listeners are logical sources of format stereo, the OnAir
application software (especially the Configuration Tool) handles consecutive
sources (Source Right, etc.) as known from other logical sources, e.g. PRG
A (they are ignored and grayed out).
LVDS inputs associated to Livewire I/O cards can also be mapped to Logi-
calInputs, but without a Listener mapped to the First Source of a LogicalIn-
put, neither stream selection/patching nor label transfer is provided for that
LogicalInput.
