Studer OnAir 3000 User Manual

OnAir 3000 Digital Mixing Console
9-18 Networking
Document generated: 10.10.14
SW V6.0

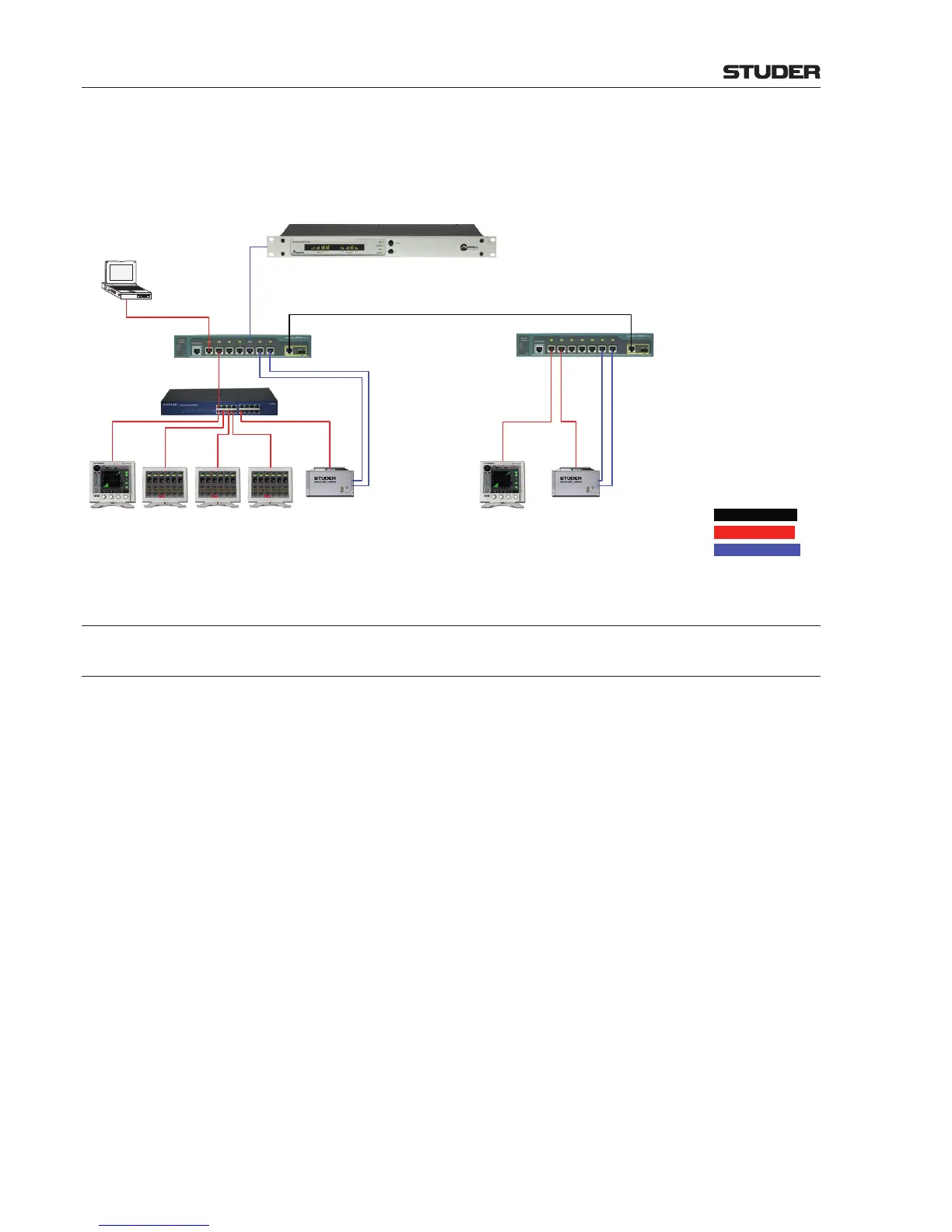

Customer switch configurations for this type of network topology are avail-
able for
•Cisco 2960-8 (Master)
•Cisco 2960-8
Cisco C2960G-8
Switch IP VLan 1: 192.168.0.2 / 255.255.0.0
Management Console
Fix IP: 192.168.0.10
Subnet: 255.255.0.0
Gateway: 192.168.0.1
Core
Fix IP: 192.168.90.10
Subnet: 255.255.0.0
Gateway: 192.168.0.1
Desk
Fix IP: 192.168.90.100
Subnet: 255.255.0.0
Cisco C2960G-8 (Master/Gateway)
Switch IP VLan 1: 192.168.0.1 / 255.255.0.0
Switch IP VLan 2: 10.0.0.1 / 255.255.255.0
Axia Livewire xNode
Fix IP: 10.0.0.10
Subnet: 255.255.255.0
Gateway: 10.0.0.1
VLan 1 (Control)
VLan 2 (Livewire)
VLan 1/2 (Trunk)
Core
Fix IP: 192.168.70.10
Subnet: 255.255.0.0
Gateway: 192.168.0.1
Desk
Fix IP: 192.168.70.100
Subnet: 255.255.0.0
Netgear 16-Port
Switch FS516
Channel Screen
Fix IP: 192.168.90.110
Subnet: 255.255.0.0
D21m Livewire card
LW1 Fix IP: 10.0.0.11
LW2 Fix IP: 10.0.0.12
Subnet: 255.255.255.0
Gateway: 10.0.0.1
D21m Livewire card
LW1 Fix IP: 10.0.0.13
LW2 Fix IP: 10.0.0.14
Subnet: 255.255.255.0
Gateway: 10.0.0.1
9.4.2.2 Integrated Solution
Not defined yet.
9.4.2.3 Routed
The Routed topology is to be preferred compared to the Integrated topology,
when integration with existing IT infrastructure is needed. The big advantage
is that data flow between the IT- and the OnAir Control network can be con-
trolled. In case of malfunction in the IT network, the OnAir Control network
will not be affected.
In the routed network solution one or more OnAir consoles are placed into
their own physical network (OnAir Control network). Using a router, the
OnAir Control network is connected to the IT network.
UDP multicast packets must be used by the OnAir consoles subsystems to
establish and maintain the DNet communication as they are routable in con-
trast to broadcast messages.
The switches and routers of the network must support IGMP V3.
The routed solution provides the same functionality as the integrated solution,
refer to chapter 9.4.1.2. The only difference is that the traffic between the
OnAir Control network and the IT network can be controlled by the router.
The picture on the next page shows an example of a routed network topology.
The Routed topology is used where different networks are brought together
by a router.
