3-4
IM 701210-05E
Do Not Install the Instrument in the Following Places.
• In direct sunlight or near heat sources.
• Where an excessive amount of soot, steam, dust, or corrosive gas is present.
• Near strong magnetic field sources.
• Near high voltage equipment or power lines.
• Where the level of mechanical vibration is high.
• In an unstable place.

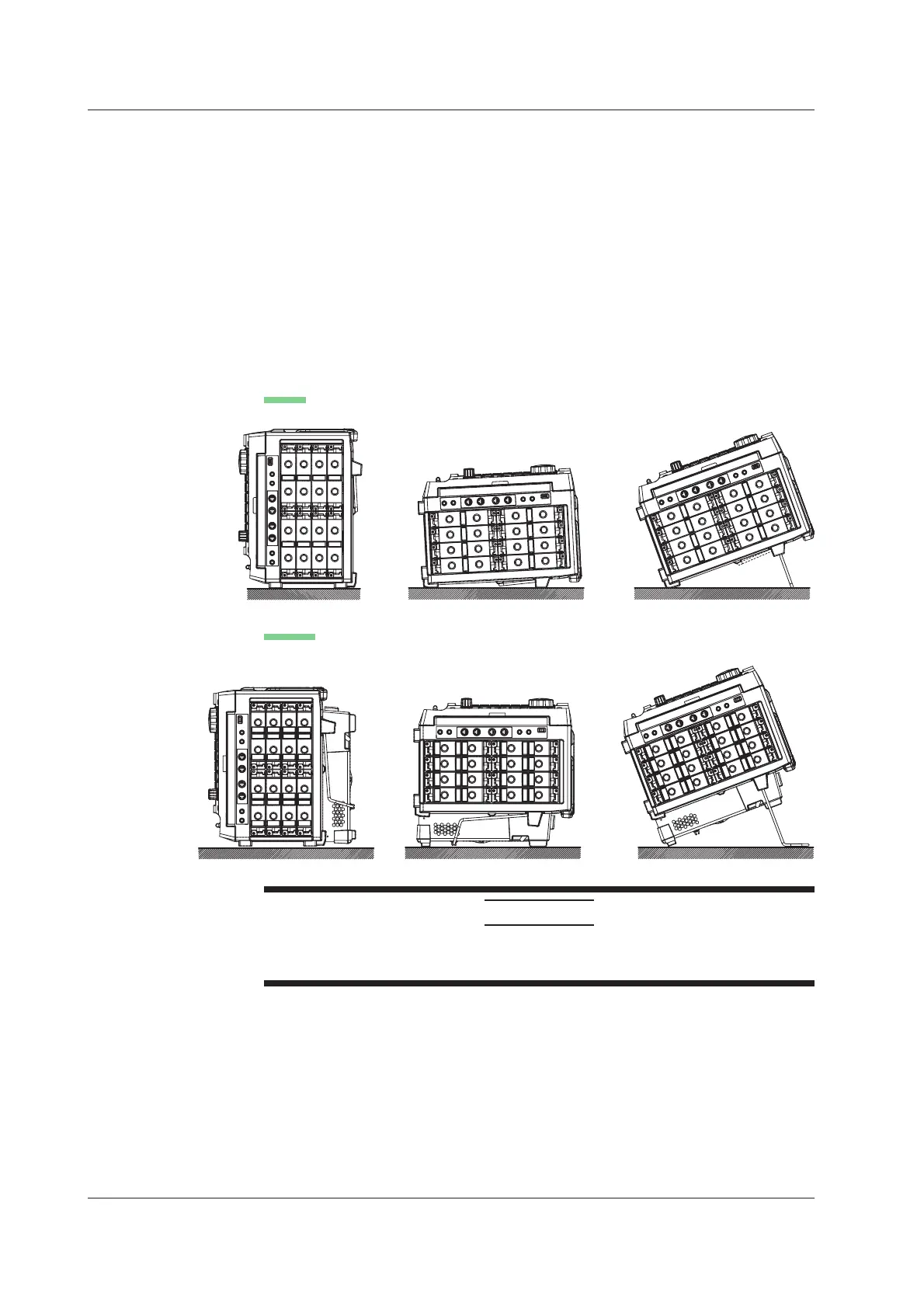

Installation Position
Place the instrument in a horizontal position or with the rear panel facing down. When
using the stand, pull it until it locks (see the lower left figure). To retract it, press the
stand backward while pressing it inward.
DL750
Installed with the rear panel facing downInstalled horizontally Installed using the stand
DL750P
Installed with the rear panel facing downInstalled horizontally Installed using the stand
CAUTION
Do not use the Zip drive when the instrument is placed on the stand, as it may
damage the data on the Zip disk.
Rubber Feet
If the instrument is installed in a horizontal position as shown in the figure above, rubber
stoppers can be attached to the feet to prevent the instrument from sliding. One set (four
pieces) of rubber feet are included in the package.
3.2 Installing the Instrument
To Next Page
