YOKOGAWA DL750 - Performing Addition, Subtraction, Multiplication, and Division (DSP Channels)

15-4
IM 701210-06E

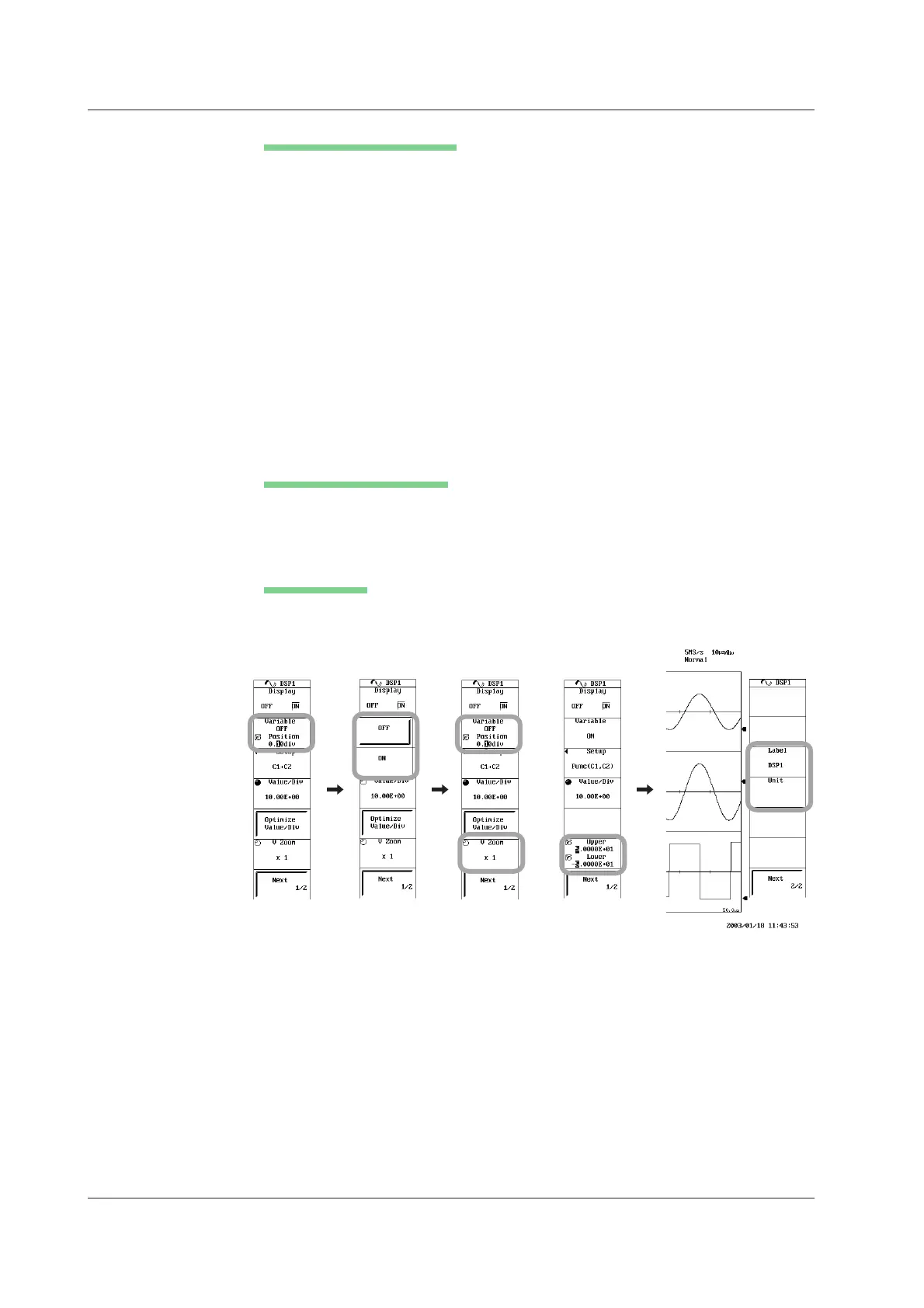

15.2 Performing Addition, Subtraction, Multiplication, and Division (DSP Channels)
Zooming in on the Waveform
• Zooming in or out Vertically by Setting the Zoom Rate
8. Press the Variable soft key to select OFF.
9. Press the V Zoom soft key.
10. Turn the jog shuttle to set the zoom rate.
11. Press the Variable soft key to select Position.
12. Turn the jog shuttle to set the vertical position. The center position of zoom
changes. Proceed to step 13.
• Zooming/Expanding Vertically According to the Upper and Lower Limits of the
Display Range
8. Press the Variable soft key to select ON.
9. Press the Upper/Lower soft key to set the jog shuttle control to Upper.
10. Turn the jog shuttle to set the upper limit.
11. Press the Upper/Lower soft key to set the jog shuttle control to Lower.
12. Turn the jog shuttle to set the lower limit. Proceed to step 13.
Setting the Waveform Label
13. Press the Next 1/2 soft key.
14. Press the Label soft key.
15. Enter the waveform label according to the procedure given in section 8.10.
Setting the Unit
16. Press the Unit soft key.
17. Enter the unit according to the procedure given in section 4.2.
Variable OFF
Variable ON
