13-7
IM 701210-06E
Saving and Loading Data
13

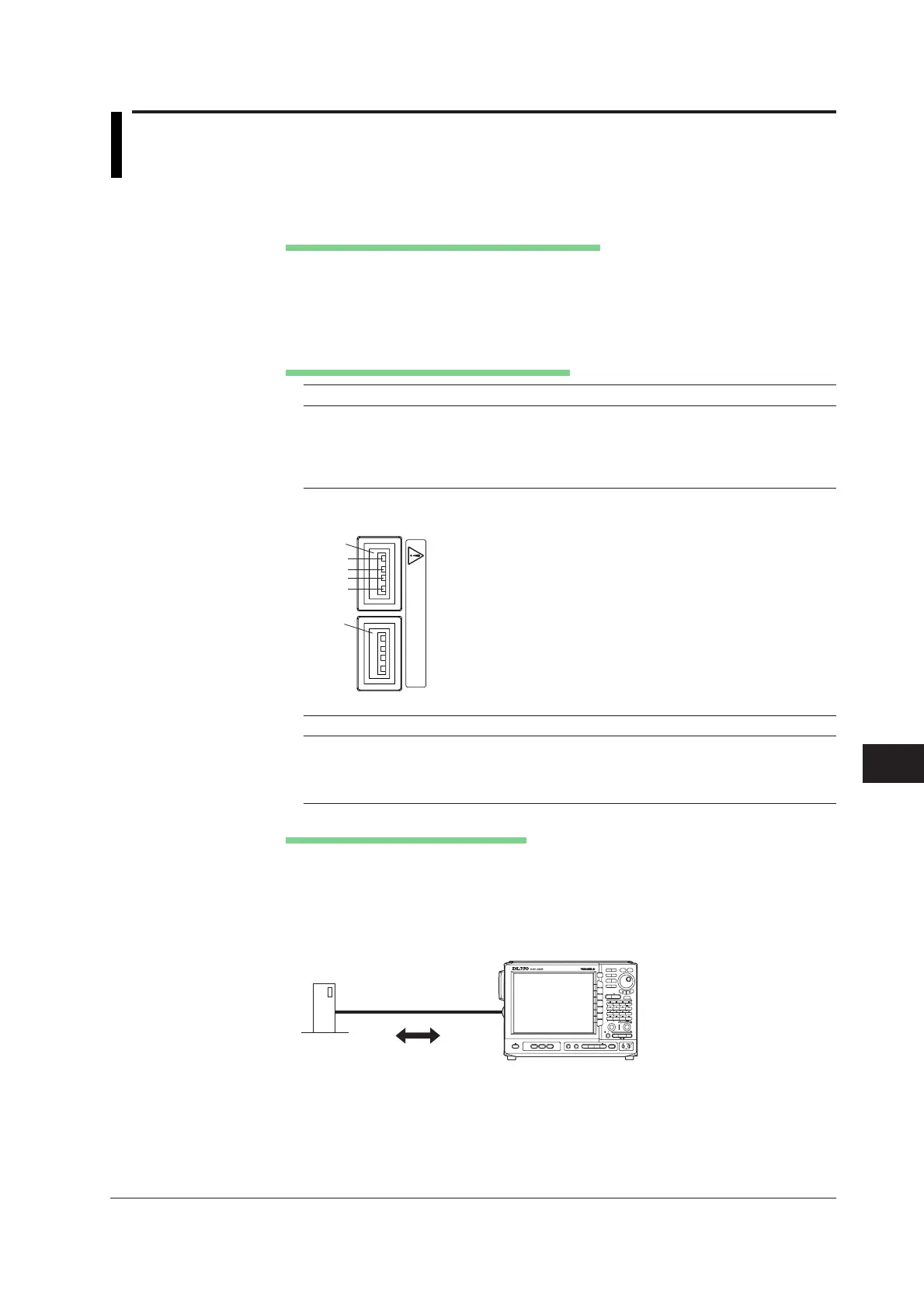

13.3 Connecting a USB Storage Device (MO Disk
Drive, Hard Disk, or Flash Memory) to the USB
PERIPHERAL Interface
Model That Can Connect a USB Storage Device
• DL750: Check the overview screen by choosing MISC > Overview.
If USB Storage: Yes and Soft Version: 6.02 (or later) are displayed, a USB
storage device can be connected.
• DL750P: All DL750Ps can connect to a USB storage device.
USB PERIPHERAL Interface Specifications
Item Specifications
Connector type USB type A connector (receptacle)
Electrical and mechanical specifications Conforms to USB Rev.1.1
Data rate 12 Mbps maximum
Power Supply 5 V, 500 mA* (per port)
Number of ports 2
* Devices whose maximum current consumption exceeds 100 mA cannot be connected
simultaneously to the two ports.
Port 1
USB PERIPHERAL
1
2
3
4
Port 2
Pin No. Signal Name
1 VBUS: +5 V
2 D–: –Data
3D+: +Data
4 GND: Ground
Connecting the USB Storage Device
When connecting a USB storage device, directly connect the printer to the DL750/
DL750P using a USB cable as shown below. You can connect the USB cable
regardless of whether the power switch on the DL750/DL750P is ON or OFF (supports
hot-plugging). When the power switch is ON, the USB storage device is detected and
enabled approximately six seconds after it is connected.
USB PERIPHERAL
USB storage
device
DL750/
DL750P
FILE
SHIFT
HELP
MISC
NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
ESC
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
SNAPSHOT CLEAR TRACE
MENU MENU
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
To Next Page
