6-17
IM 701210-05E
Triggering
6

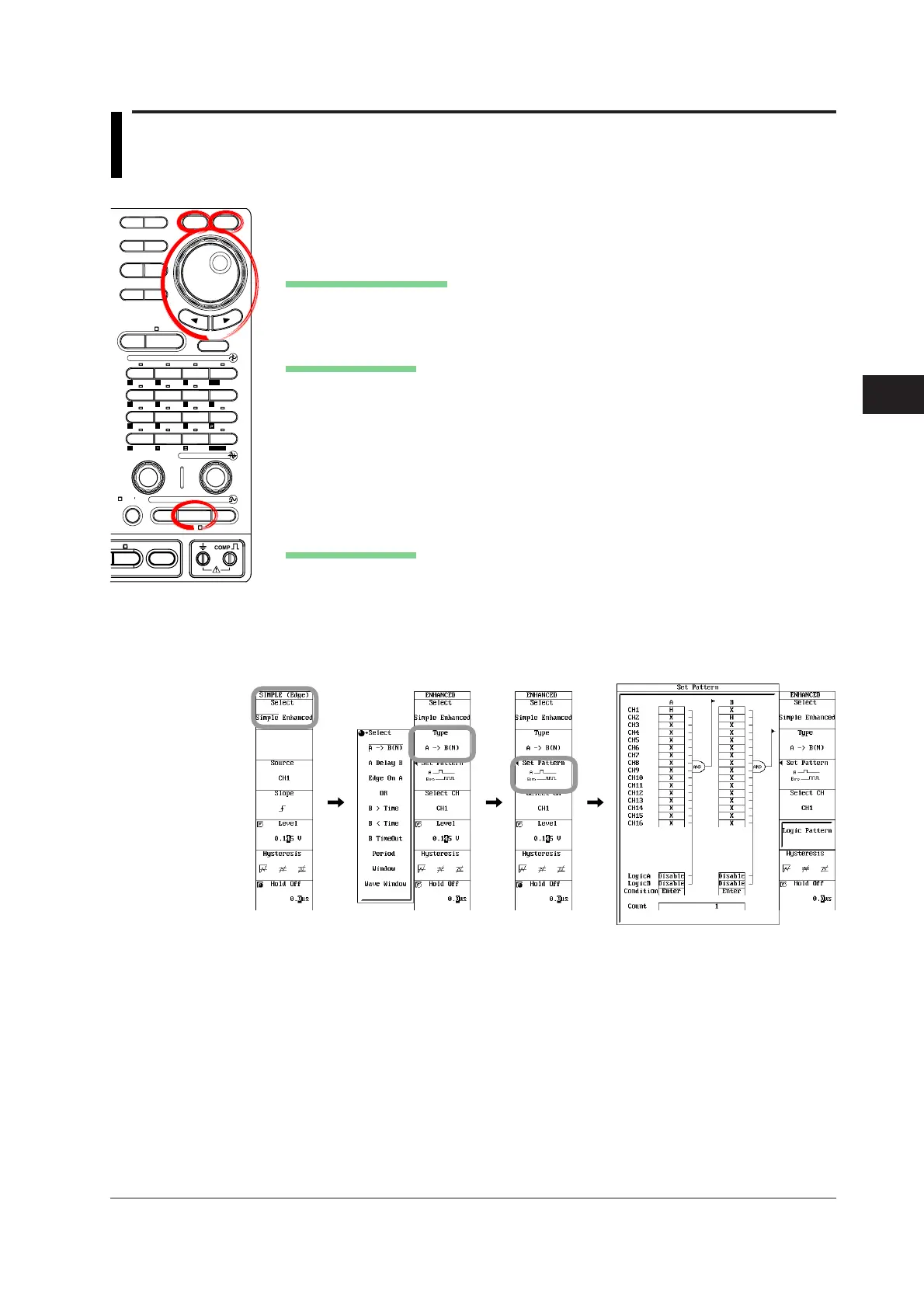

6.10 Setting the A -> B(N) Trigger (ENHANCED)
<For a description of this function, refer to page 2-21.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Enhanced.
Setting the Trigger Type
3. Press the Type soft key. The trigger type selection menu appears.
4. Use the jog shuttle and SELECT to select A -> B(N).
Setting Condition A
5. Press the Set Pattern soft key. The A -> B(N) trigger setup menu appears.
• Setting the Condition A Pattern
6. Use the jog shuttle and SELECT to select the pattern of each channel (CH1 to
CH16) from H, L, and X. For logic input channels, select Disable or Enable.
• Setting the Condition A Condition
7. Use the jog shuttle and SELECT to set Condition to Enter or Exit.
Setting Condition B
8. Set the pattern and condition of condition B in a similar fashion as in steps 6 and
7.
• Setting the Number of Times Condition B Is to Be Met
9. Use the jog shuttle and SELECT to set Count (the number of times condition B
is to be met). Pressing RESET resets the number to 1.
To Next Page
