5.10 Setting the Offset Value
<For a description of this function, refer to page 2-6.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

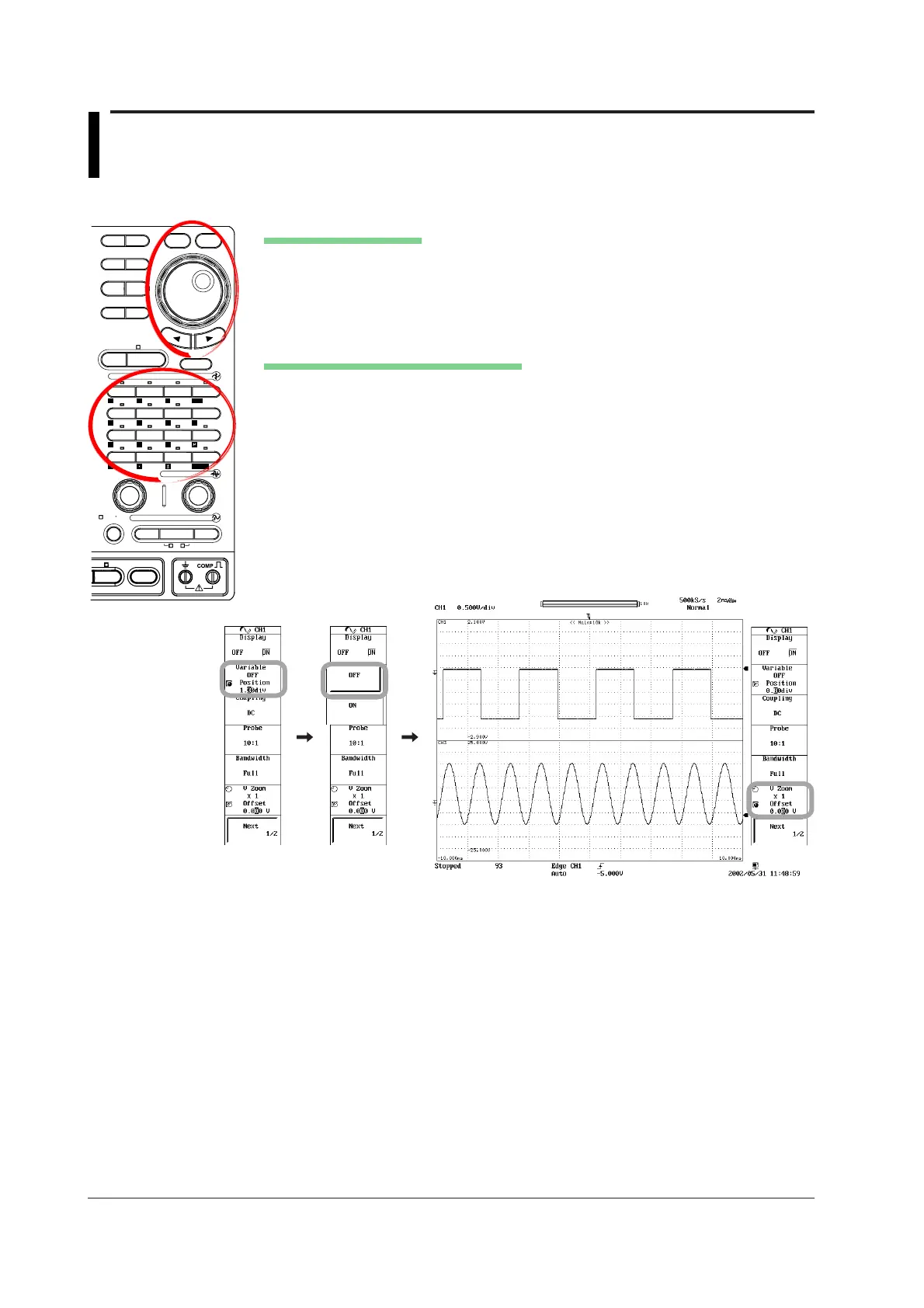

Setting the Offset Value
1. Press a key from CH1 to CH16 keys to select the desired channel.
2. Press the Variable soft key to select OFF.
3. Press the V Zoom/Offset soft key to set jog shuttle action to Offset.
4. Turn the jog shuttle to set the offset value.
When Resetting the Offset Value to 0 V
5. Press RESET to set the offset voltage to 0 V.
