YOKOGAWA DL750 User Manual

11-11
IM 701210-06E
Waveform Analysis/Search
11

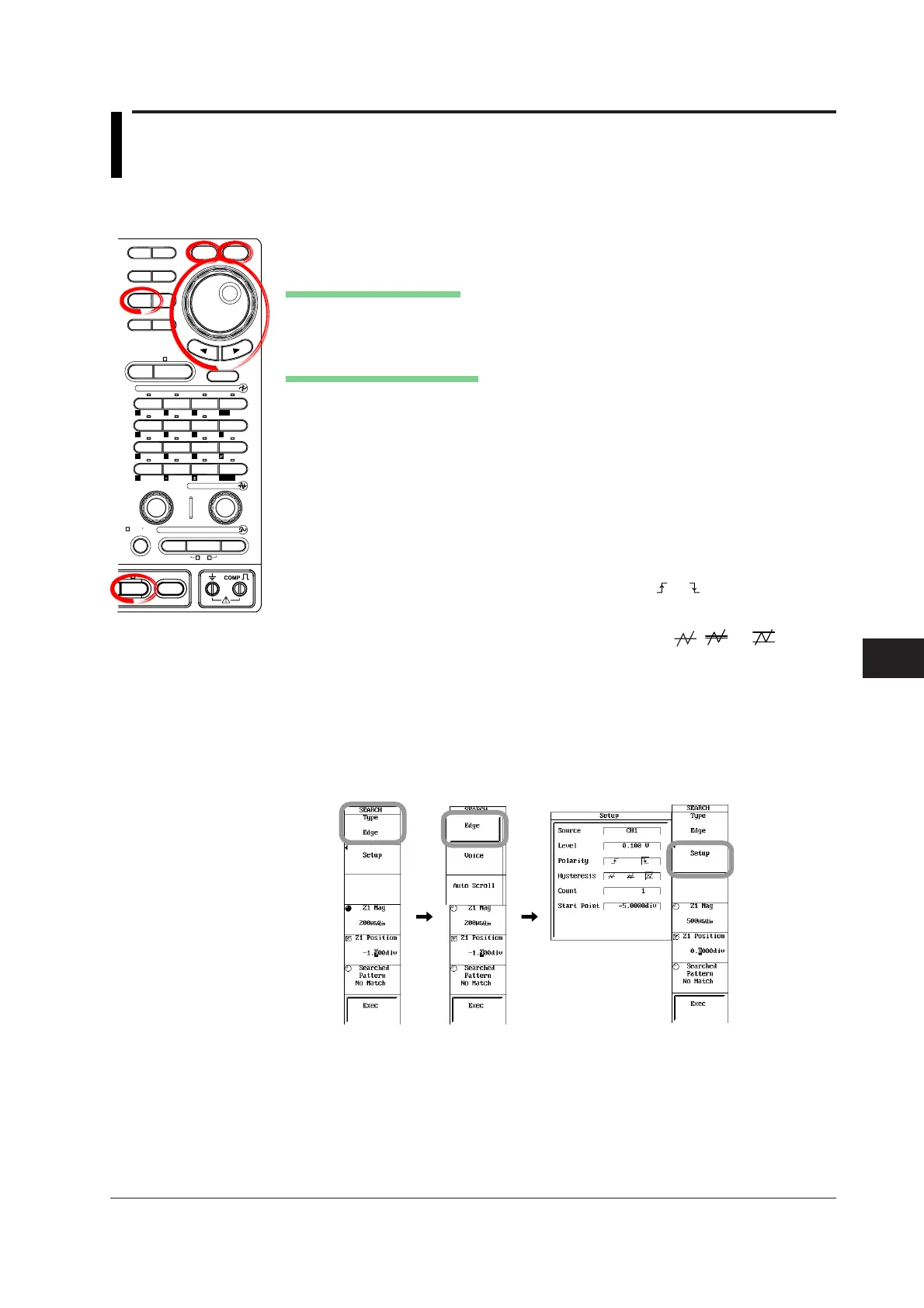

11.4 Search Data Using Search and Zoom Function
<For a description of this function, refer to page 2-54.>
Procedure
Edge Search
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press SHIFT+ZOOM.
Selecting the Search Type
2. Press the Type soft key. The search type selection menu appears.
3. Press the Edge soft key.
Setting the Search Condition
4. Press the Setup soft key. The search condition setup dialog box appears. Turn
the jog shuttle to set the parameter.
• Setting the Search Source Channel
5. Use the jog shuttle and SELECT to select Source.
• Setting the Level
6. Use the jog shuttle and SELECT to set Level. Pressing RESET resets the
level to 0 V.
• Setting the Edge Polarity
7. Use the jog shuttle and SELECT to set Polarity to
or .
• Setting the Hysteresis
8. Use the jog shuttle and SELECT to set Hysteresis to
, , or .
• Setting the Search Count
9. Use the jog shuttle and SELECT to set Count. Pressing RESET resets the
value to 1.
• Setting the Search Start Point
10. Use the jog shuttle and SELECT to set Start Point. Pressing RESET resets
the value to –5 divisions.
