7-5
IM 701210-05E
Acquisition and Display
7

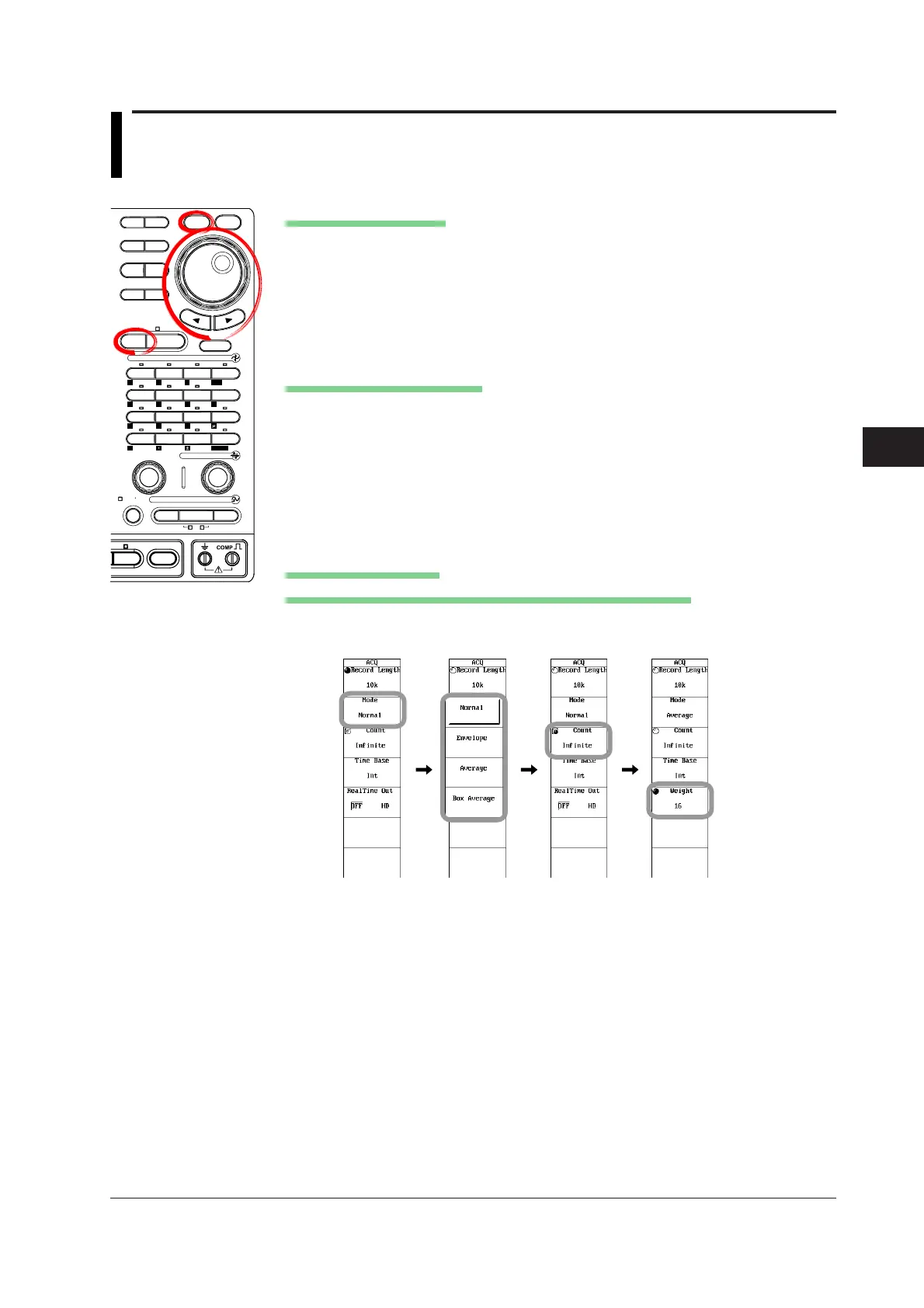

7.3 Setting the Acquisition Mode
<For a description of this function, refer to page 2-31.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
Setting the Action Mode
1. Press ACQ.
2. Press the Mode soft key. The mode selection menu appears.
3. Press the soft key corresponding to the desired mode from Normal, Envelope,
Average, and Box Average.
You may not be able to select some modes depending on the trigger mode
setting.
Setting the Acquisition Count
4. Press the Count soft key.
You cannot set the acquisition count when the trigger mode is Single, Single
(N), or Log.
5. Turn the jog shuttle to set the acquisition count.
Pressing RESET resets the count to Infinite.
If the acquisition mode is Average and you set Count to Infinite, proceed to step
6.
Setting the Attenuation
(When the Acquisition Mode Is Average and Count Is Infinite)
6. Press the Weight soft key.
7. Turn the jog shuttle to set the attenuation.
To Next Page
