9-8
IM 701210-05E

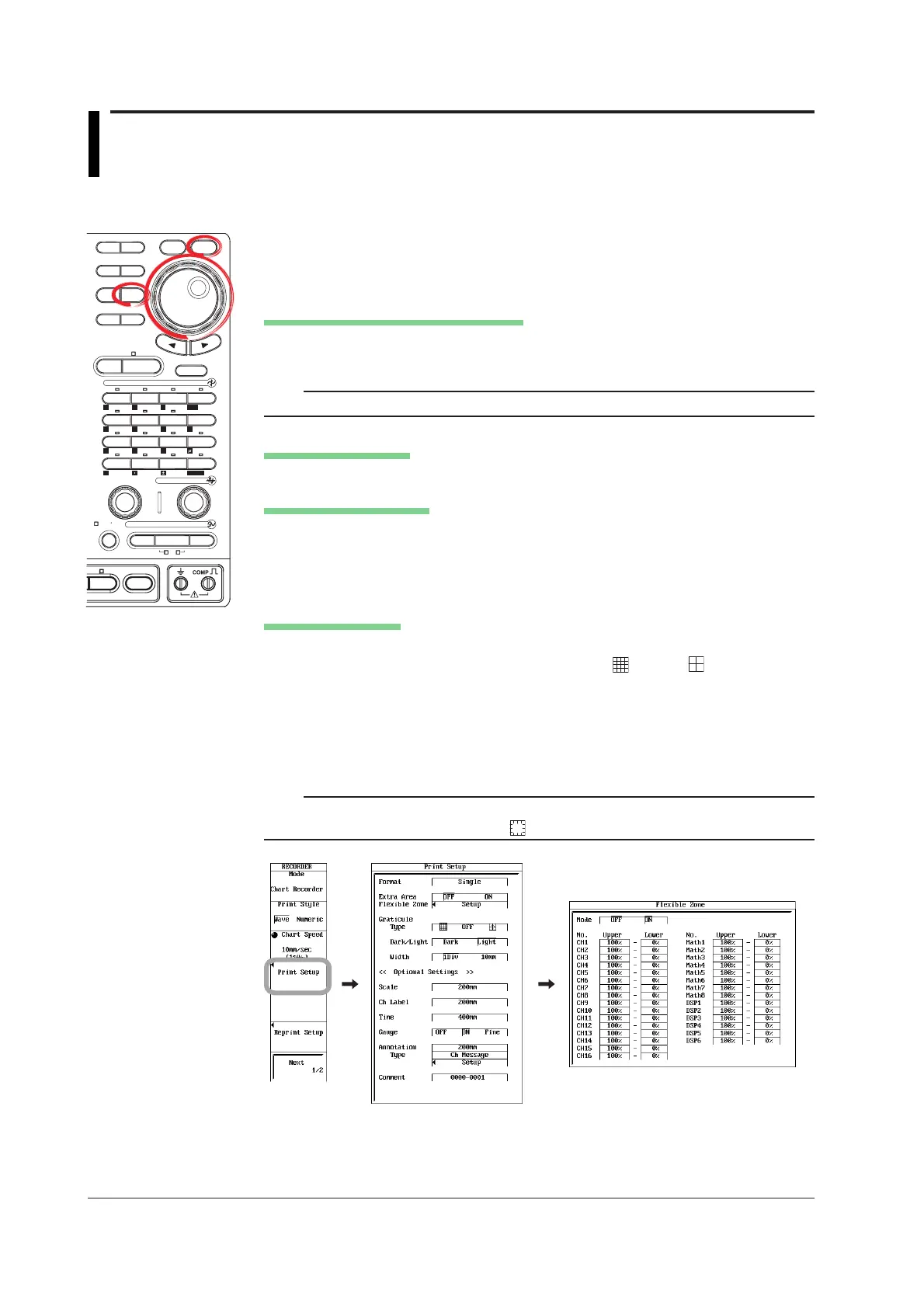

9.4 Setting the Recording Format of T-Y Waveform
Recording
<For a description of this function, refer to page 2-43.>
Procedure
Before carrying out the procedure below, set the recording conditions of T-Y waveform
recording according to the procedures in sections 9.2 and 9.3.
1. Press the Print Setup soft key to display the print setup dialog box.
Setting the Display (Recording) Format
2. Use the jog shuttle and SELECT to select Format from Single (1 division) to
Hexadecimal (16 divisions).
Note
The display (recording) format setting is linked with the DISPLAY menu > Format setting.
Setting the Extra Area
3. Use the jog shuttle and SELECT to set Extra Area to ON or OFF.
Setting the Flexible Zone
4. Use the jog shuttle and SELECT to select Setup in Flexible Zone.
5. Use the jog shuttle and SELECT to set Mode to OFF or ON.
6. Use the jog shuttle and SELECT to set Upper/Lower of the waveform to be
recorded.
Setting the Graticule
Setting the Graticule
7. Use the jog shuttle and SELECT to set Type to , OFF, or .
Setting Dark/Light
8. Use the jog shuttle and SELECT to set Dark/Light to Light or Dark.
Setting the Width of the Vertical Scale
9. Use the jog shuttle and SELECT to set Width to 1div or 10mm.
Note
The graticule setting is linked with the DISPLAY menu > Graticule setting. However, if OFF is
selected, the DISPLAY menu is set to .
When Setup of Flexible Zone is selected
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
RECORDER
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
DUAL
CAPTURE
