5-22

IM 701210-05E

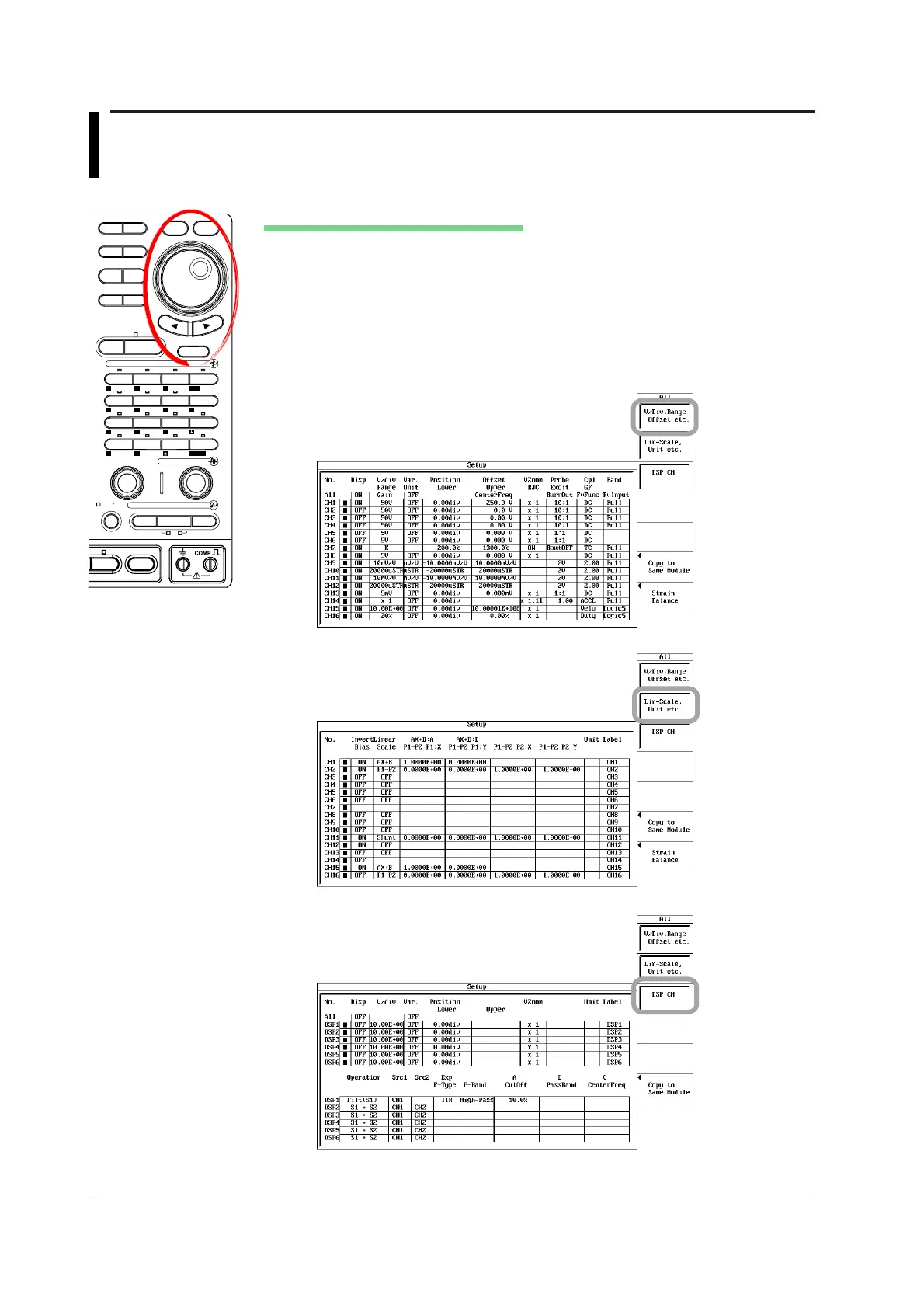

5.13 Displaying the All Channel Setup Menu

Procedure

MEASURE

CURSOR RESET SELECT

ALL CH

MODE

POSITION

SIMPLE/ENHANCED

ACQ

START/STOP

SETUP DISPLAY

ZOOM

DUAL

CAPTURE

HISTORY

MATH

DELAY

MANUAL TRIG

V/DIV TIME/DIV

TRIGGER

TRIG D

VERTICAL

HORIZONTAL

CAL

X-Y

DSP 1

8 9

DSP 2

654

ENTER

DSP 6DSP 5

LOGIC A

LOGIC B

EVENT

DSP 3 DSP 4

EXP

GO/NO-GO

ACTION

FILE

SHIFT

Displaying the All Channel Setup Menu

1. Press ALL CH.

2. Press the V/Div, Range Offset etc., Lin-Scale, Unit etc., or DSP CH (optional)

soft key to show the setup menu.

3. Turn the jog shuttle or press the arrow keys to move the cursor to the desired

parameter.

4. Press SELECT to display the setup menu for the selected parameter.

5. Use the jog shuttle, SELECT, and arrow keys to set each parameter.

• V/Div, Range Offset etc.

• Lin-Scale, Unit etc.

• DSP CH
