YOKOGAWA DL750 User Manual

6-34
IM 701210-05E

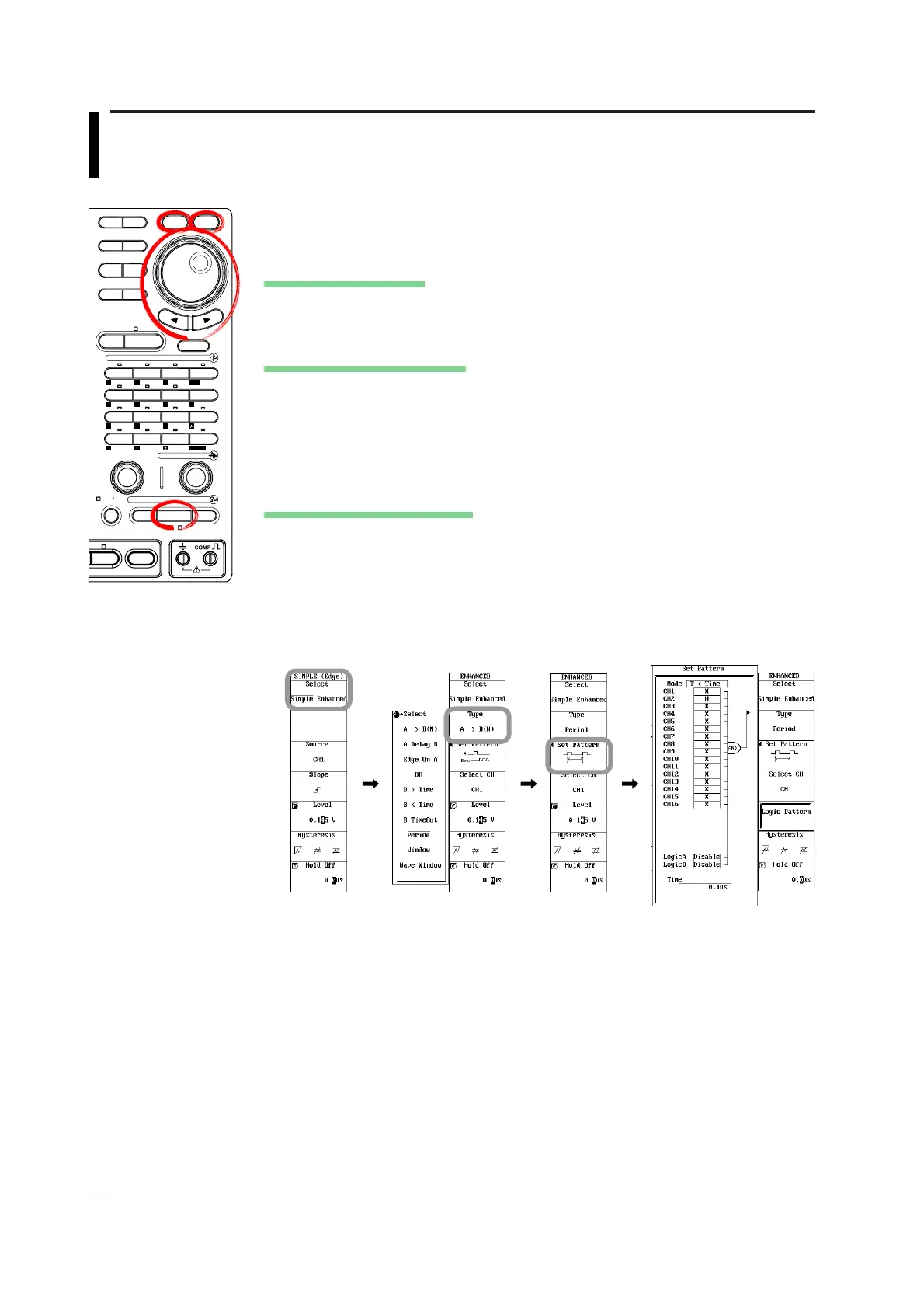

6.15 Setting the Period Trigger (ENHANCED)
<For a description of this function, refer to page 2-24.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Enhanced.
Setting the Trigger Type
3. Press the Type soft key. The trigger type selection menu appears.
4. Use the jog shuttle and SELECT to select Period.
Setting the Condition B Status
5. Press the Set Pattern soft key. The Period trigger setup menu appears.
6. Press the Mode soft key and use the jog shuttle and SELECT to select T >
Time, T < Time, T1 < T < T2, or T < T1,T2 < T.
7. Use the jog shuttle and SELECT to select the pattern of each channel (CH1 to
CH16) from H, L, and X. For logic input channels, select Disable or Enable.
Setting the Time of Satisfaction
• For T > Time or T < Time
8. Use the jog shuttle and SELECT to set Time. Pressing RESET resets the
value to 0.1 µs.
• For T1 < T < T2 or T < T1,T2 < T
8. Use the jog shuttle and SELECT to set Time1 and Time2. Pressing RESET
resets Time1 to 0.1 µs and Time2 to 0.2 µs.
