4-3
IM 701210-05E
Common Operations
4

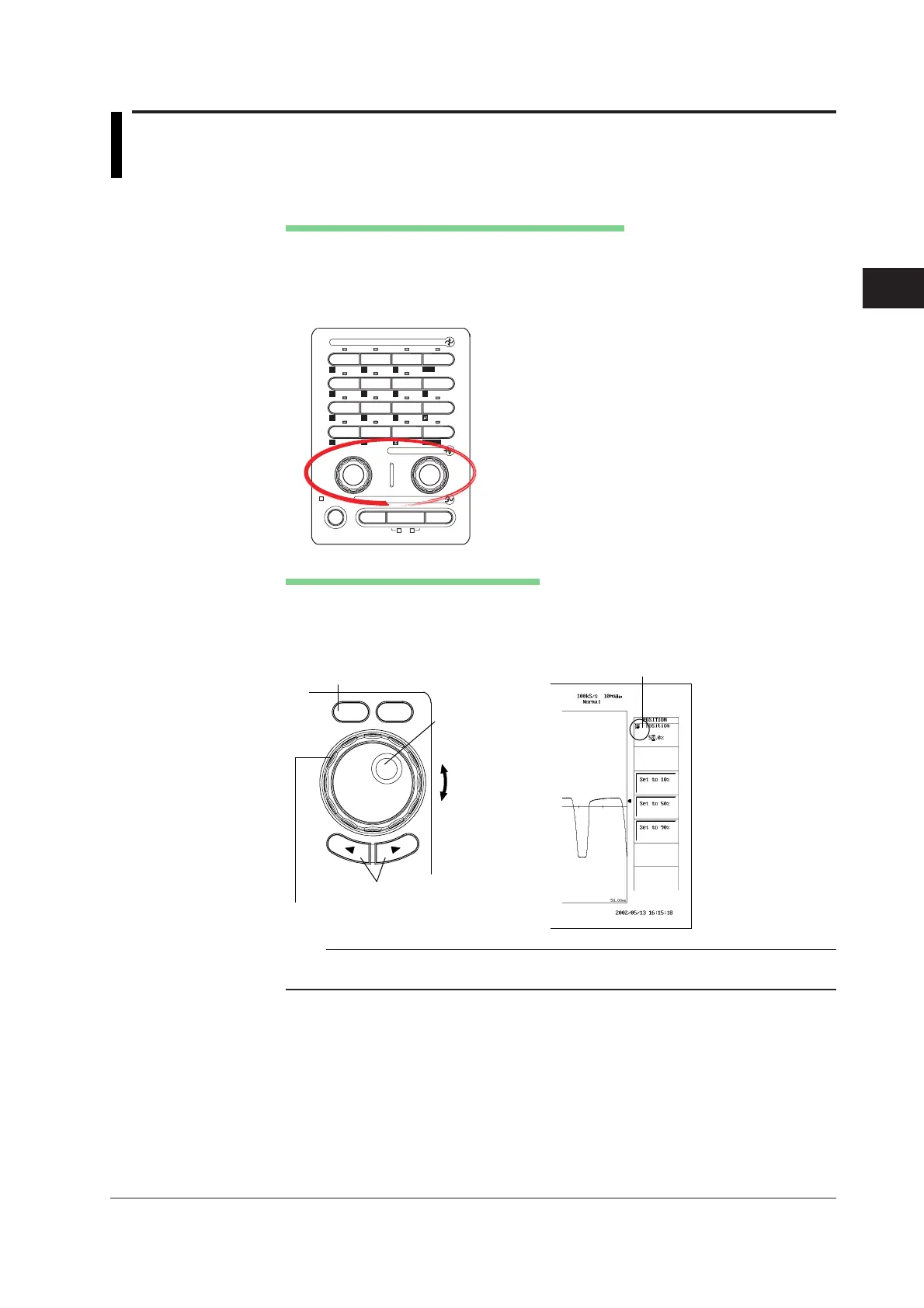

4.2 Entering Values and Strings
Entering Values
Entering Values Directly Using the Dedicated Knob
The dedicated knobs indicated below can be used to directly enter values by turning the
knob.
• V/DIV knob
• TIME/DIV knob
CH
MODE
POSITION
SIMPLE/ENHANCED
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
ACTION
Entering Values Using the Jog Shuttle
After selecting the setup item using the soft key, use the jog shuttle to change the value.
The outer shuttle ring can be used step through the values in large increments. On
some items, the arrow keys below the jog shuttle can be used to move among the digits.
Parameters that can be specified using the jog shuttle
RESET SELECT
Resets the value to the initial value.
Arrow keys: Moves the current digit.
Jog shuttle
Shuttle ring
Increases
the value.
Decreases
the value.
Note
The items that can be changed using the jog shuttle are reset to their initial values when the
RESET key is pressed.
