5-57
IM 701210-05E
Horizontal and Vertical Axes
5

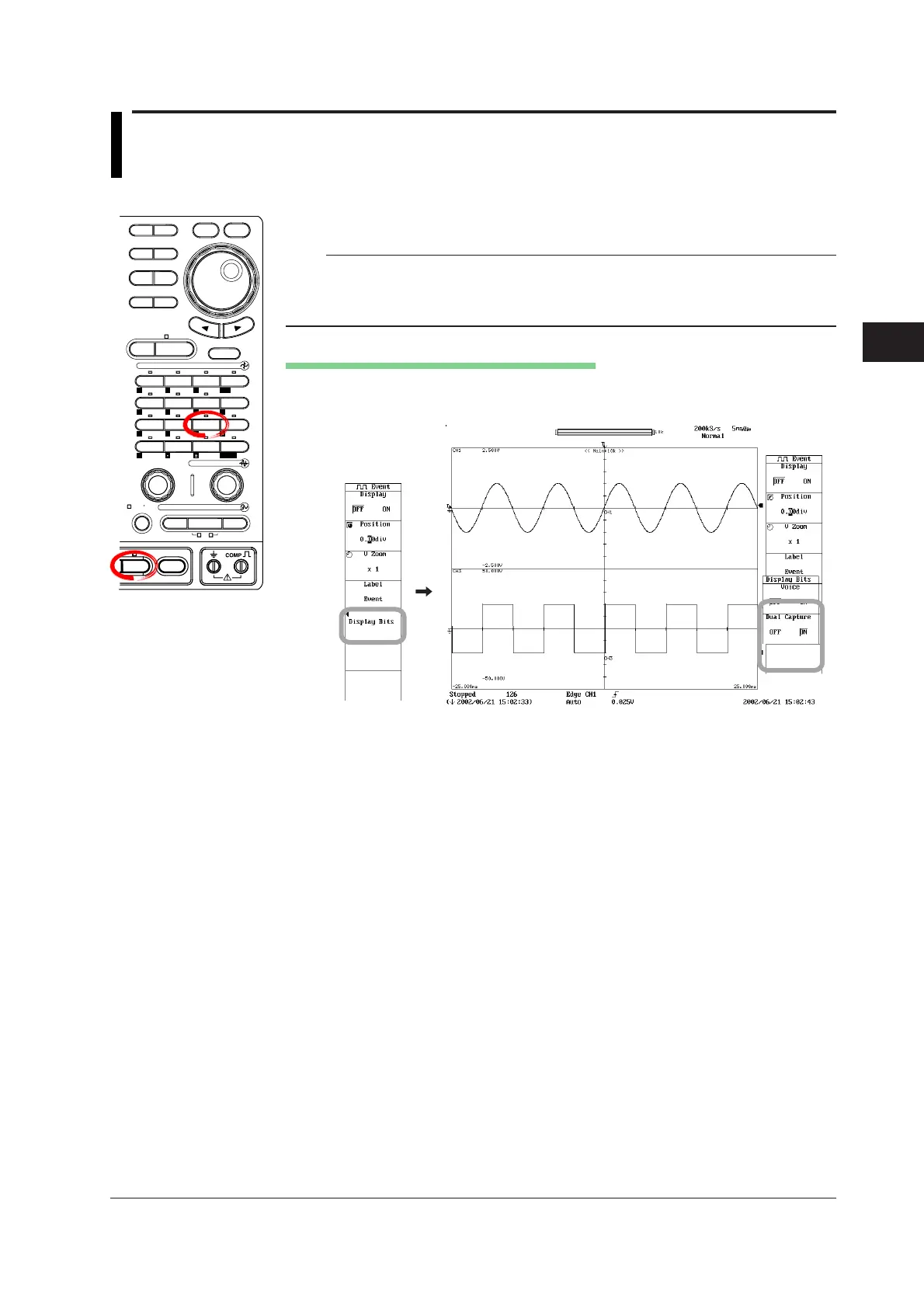

5.21 Setting Event Waveforms
<For a description of this function, refer to page 2-19.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SHIFT+CH11(EVENT).
Note
For a description of turning ON/OFF the event waveform, see section 5.1. For a description
of setting the vertical position, see section 5.4. For a description of zooming vertically by
setting the zoom rate, see section 5.8. For a description of setting waveform labels, see
section 8.10.
Selecting the Event Waveform to Be Displayed
2. Press the Display Bits soft key.
3. Press the Dual Capture or Voice soft key to select ON or OFF.
To Next Page
