11-5
IM 701210-06E
Waveform Analysis/Search
11

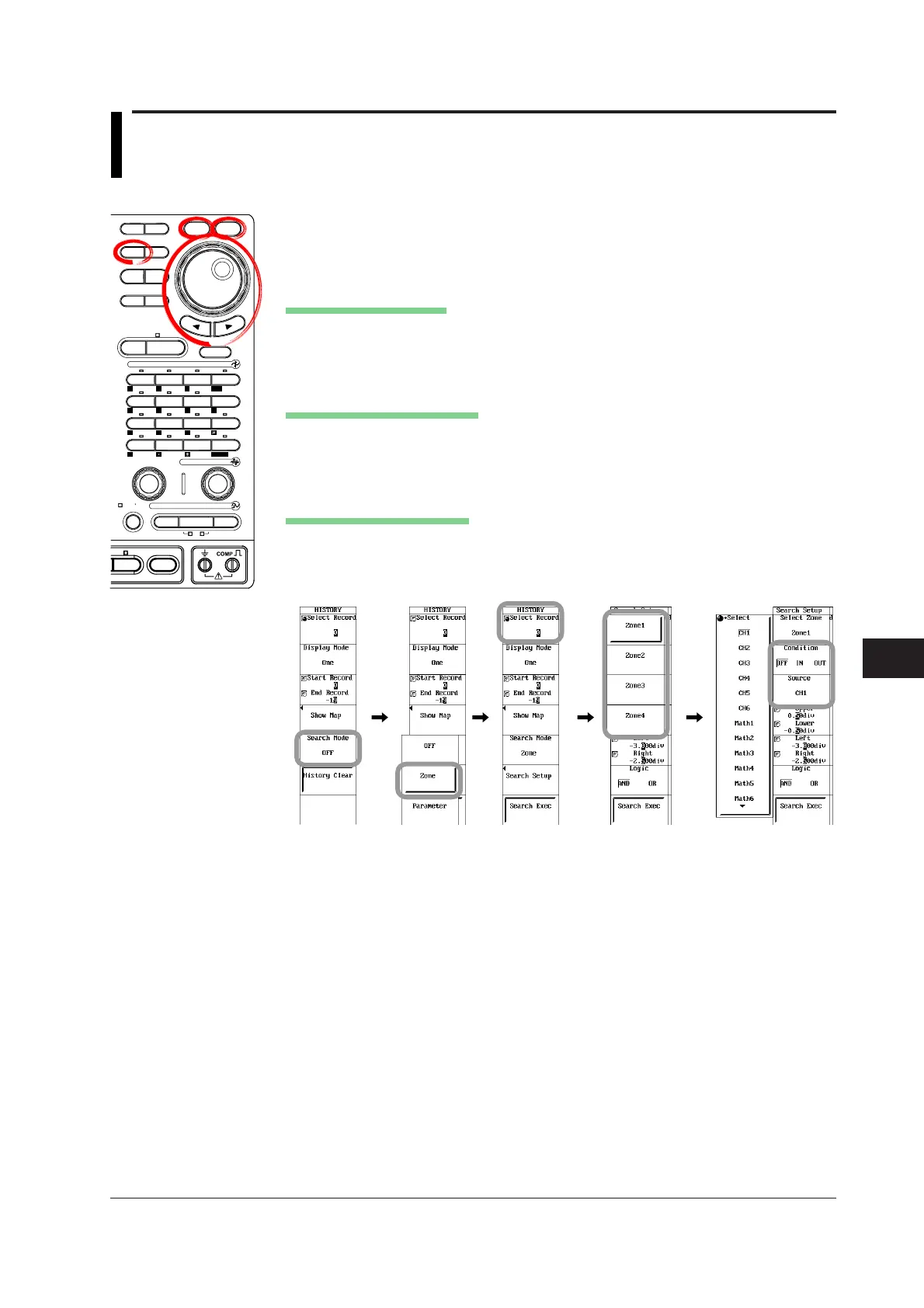

11.2 Searching History Memory Data Using Zones
(History Search Function)
<For a description of this function, refer to page 2-53.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press HISTORY.
2. Press the Search Mode soft key. The search mode menu appears.
3. Press the Zone soft key.
Setting the Search Zone
4. Press the Search Setup soft key. The search setup menu appears.
5. Press the Select Zone soft key. The search condition selection menu appears.
6. Press any of the Zone1 to Zone4 soft keys to select the search condition.
Setting the Search Condition
7. Press the Condition soft key to select OFF, IN, or OUT.
If you select IN or OUT, a search window appears in the area where the Source
channel is displayed.
Setting the Source Channel
8. Press the Source soft key. The source channel selection menu appears.
9. Press the soft key corresponding to the desired channel to select the source
channel.
To Next Page
