13-70
IM 701210-06E
13.19 Using the Voice Comment Function
<For a description of this function, refer to page 2-64.>
This section describes only the voice comment function. For details on the voice memo
function, see section 7.9.
Before using the voice comment function, connect the earphone microphone with a
PUSH switch to the DL750/DL750P by referring to section 3.14, “Connecting the
Earphone Microphone with a PUSH Switch and Connecting the Speaker.”
Note
• The REC LEVEL and VOLUME knobs on the left side panel click in place at the center
position. When using the earphone microphone with a PUSH switch, set the REC LEVEL and
VOLUME knobs to the center position to obtain adequate recording level and play volume.
• If you are outputting the voice to an external speaker for the first time by using the optional
speaker cable (sold separately), set the play volume to the minimum setting using the
VOLUME knob.

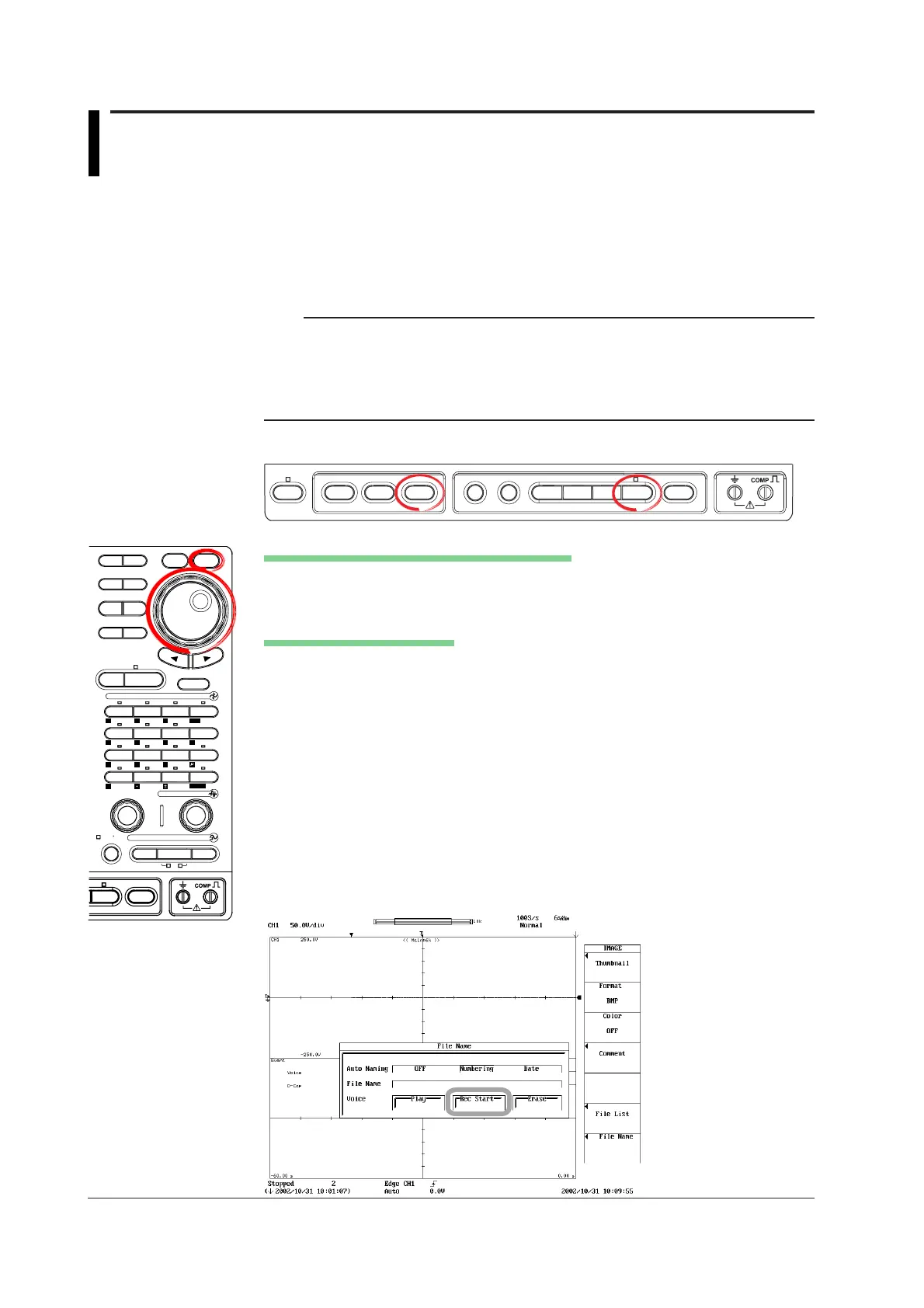

Procedure
FILE
SHIFT
HELP
MISC
NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
SNAPSHOT CLEAR TRACE
MENU MENU
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
Setting the Screen Image Data Save Operation
1. Set the screen image data save operation according to steps 1 to 16 in section
13.11.
Recording a Voice Comment
There are two record methods.
• Recording by Using the File Name Dialog Box
2. Use the jog shuttle and SELECT to press the Rec Start button on the File
Name dialog box. Recording starts. The maximum record time is 10 s. The
Rec Start display changes to Rec Stop.
3. Press the Rec Stop button to stop the recording. (When 10 s elapses after
starting the recording, the recording automatically stops even if the Rec Stop
button is not pressed.) Proceed to step 4.
• Recording by Using the PUSH Switch on the Earphone Microphone
2. Record the voice comment while holding down the PUSH switch on the
earphone microphone.
3. After recording, release the PUSH switch. Proceed to step 4.
To Next Page
