YOKOGAWA DL750 User Manual

11-44
IM 701210-06E

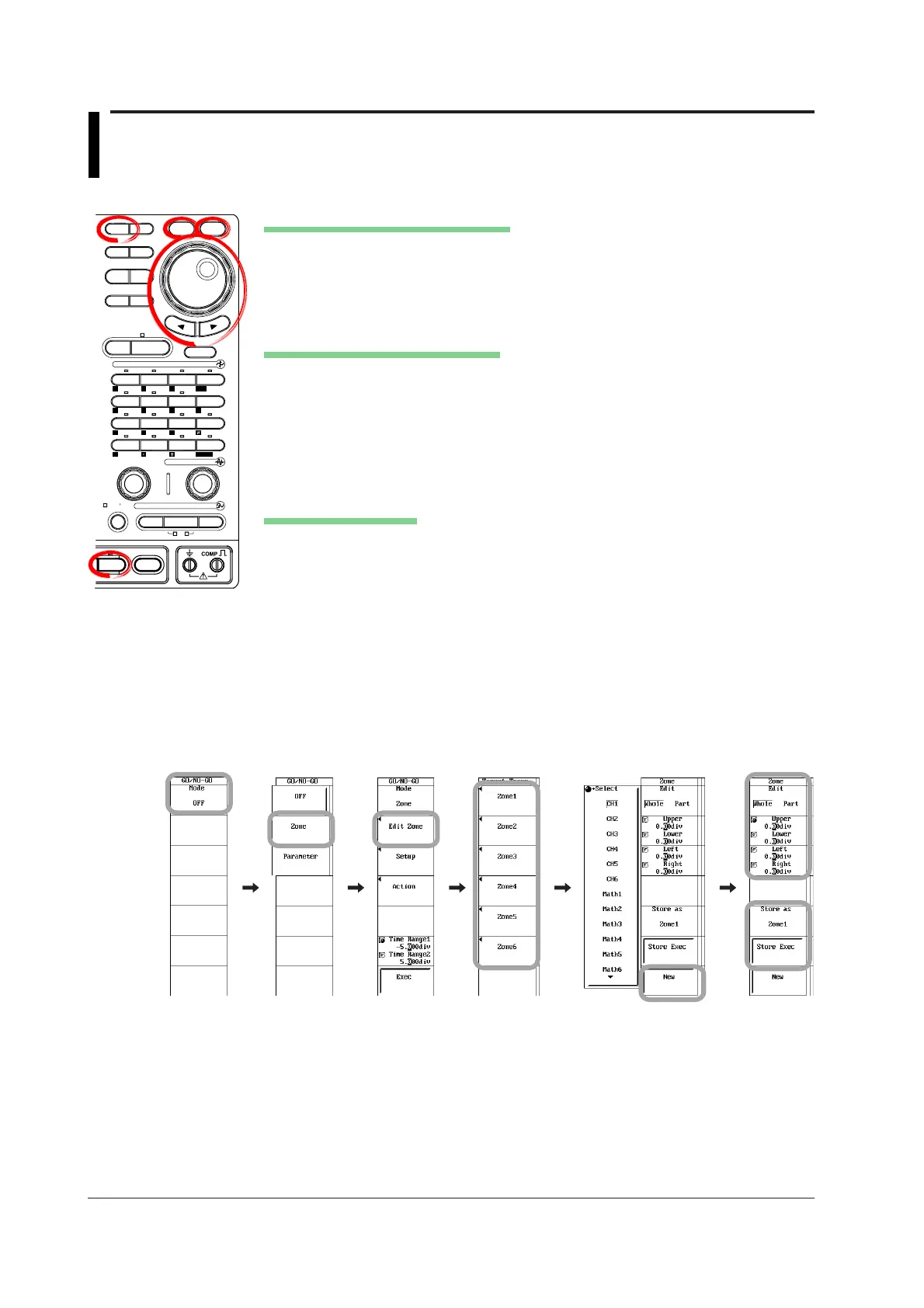

11.8 Performing GO/NO-GO Determination Using
Zones
<For a description of this function, refer to page 2-58.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
Setting GO/NO-GO Determination Mode
1. Press SHIFT+MEASURE.
2. Press the Mode soft key. A menu for setting GO/NO-GO determination mode
appears.
3. Press the Zone soft key.
Creating a New Determination Zone
4. Press the Edit Zone soft key.
5. Press any of the Zone1 to Zone6 soft keys to select the Zone.
6. Press the New soft key. A menu for selecting the reference waveform for
creating the zone appears.
7. Press the soft key corresponding to the reference waveform. The zone edit
menu appears.
Editing the Entire Zone
8. If Edit is not set to Whole, press the Edit soft key to select Whole.
9. Press the Upper/Lower or Left/Right soft key to select the direction to set the
zone.
10. Turn the jog shuttle to create the zone.
11. Repeat steps 9 and 10 to edit the zone.
12. Press the Store as soft key to open a menu used to set the destination for
registering the new zone.
13. Press the soft key corresponding to the destination from Zone1 to Zone6.
14. Press the Store Exec soft key to confirm the registration.
Proceed to step 15 to edit a section of the zone. Proceed to step 23 to finish
the creation the zone.
DSP1 to DSP6 are optional.
