13.14 Loading/Converting Realtime Recorded
Waveforms
<For a description of this function, refer to page 2-35.>
Procedure
Loading the Realtime Recorded Waveform Data
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT

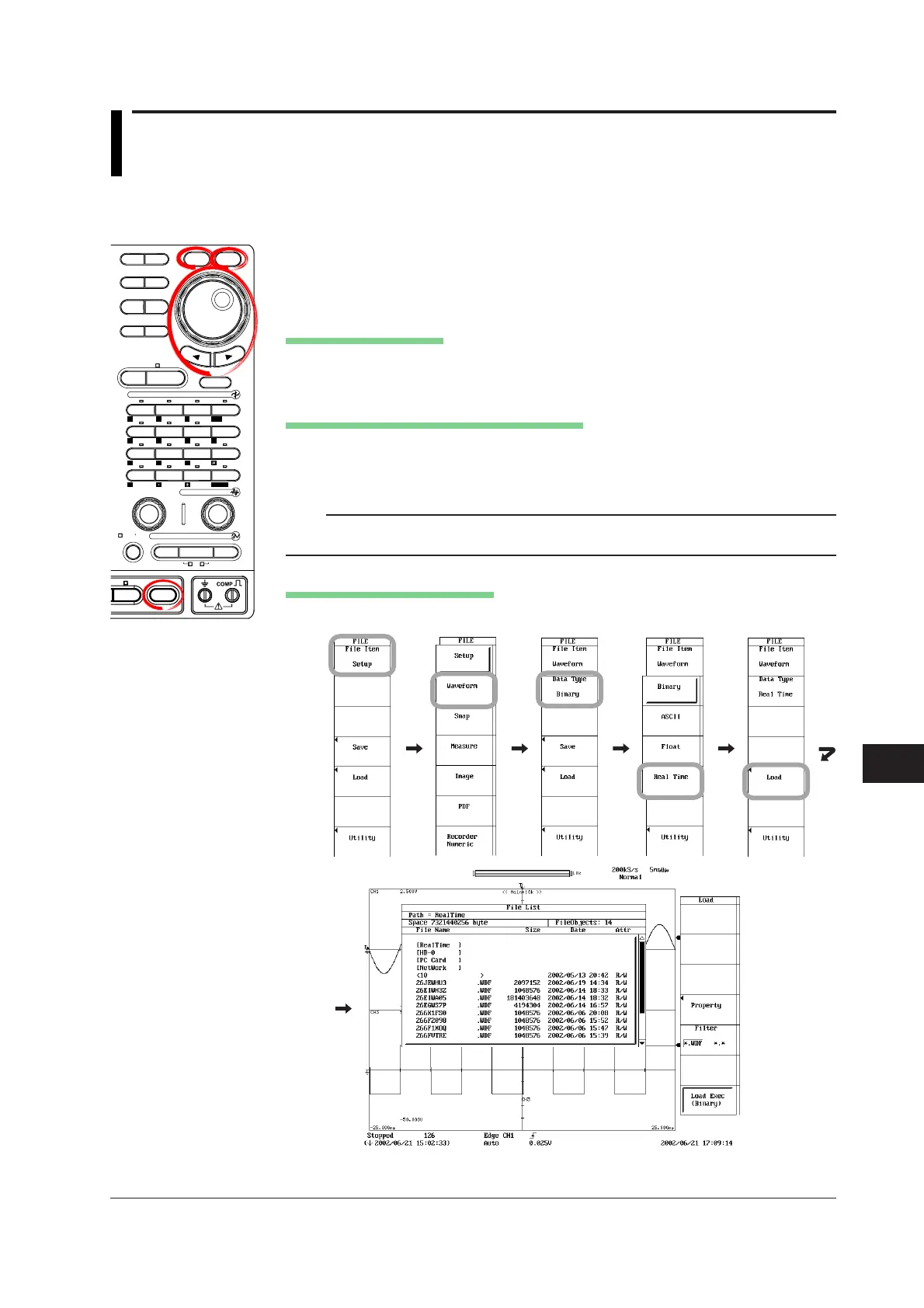

1. Press FILE.
2. Press the File Item soft key. The File Item setup menu appears.
3. Press the Waveform soft key.
Selecting the Data Type
4. Press the Data Type soft key. The data type selection menu appears.
5. Press the Real Time soft key.
Selecting the Load Source Medium/Directory
6. Press the Load soft key. The load setup menu and File List window appear.
7. Select the load source directory according to steps 13 to 18 in “Saving the
Waveform Data” in section 13.7.
Note
The files that have been realtime recorded are saved in the [RealTime] drive. WDF data that
is copied from the [RealTime] drive to another drive can also be loaded.
Selecting the File to Be Loaded
8. Turn the jog shuttle to select the file.
To Next Page
