YOKOGAWA DL750 User Manual

5-40
IM 701210-05E

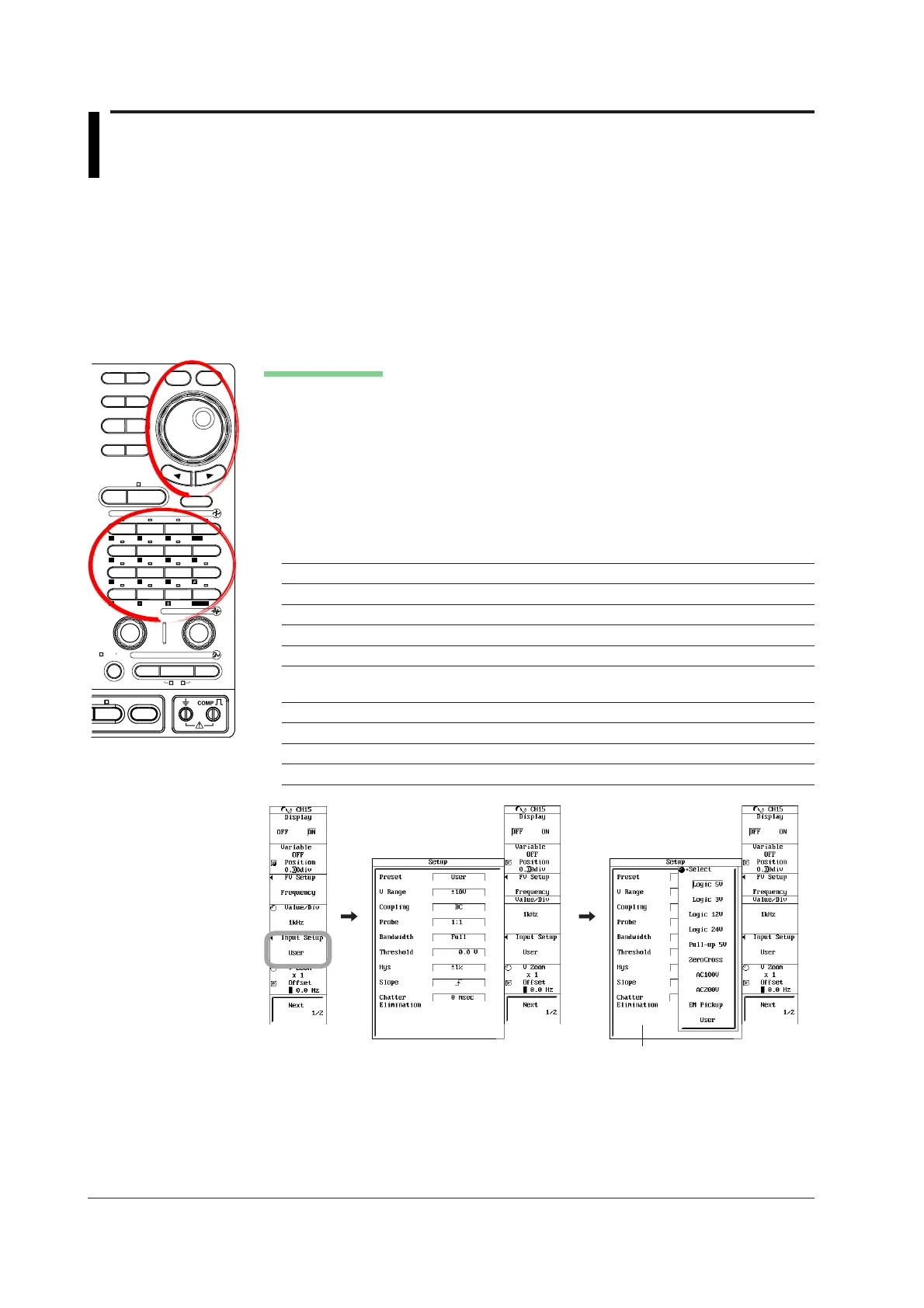

5.19 Setting the Frequency (Number of Rotations,
Period, Duty Cycle, Power Supply Frequency,
Pulse Width, Pulse Integration, and Velocity)
Measurement
<For a description of this function, refer to page 2-16.>
Procedure
1. Press one of the keys from CH1 to CH16 to select the desired channel (select a
channel with the 701280(FREQ) installed).
Setting the Input
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
Setting the Preset
2. Press the Input Setup soft key. A setup dialog box opens.
3. Use the jog shuttle and SELECT to select Preset according to the type of
sensor that is connected to the frequency module. When you select a preset
(Logic 5V to EM Pickup), the input is set to a value appropriate for the signal.
(Some items need to be manually entered.)
If you select User (user-defined), all the setup items can be set arbitrarily. For a
description of the setup items, see the next page.
Typical Applications and Signal Examples of Each Preset
Preset Application and Signal Example
Logic 5V 5-V logic signal, 5-V output sensor, and sensor with TTL output
Logic 3V 3-V logic signal and 3-V output sensor
Logic 12V 12-V driven relay/sequence circuit and 12-V driven sensor
Logic 24V 24-V driven relay/sequence circuit and 24-V driven sensor
ZeroCross Sensor/Encoder that outputs positive and negative voltages and sensor that
outputs sine waves
AC100V When measuring a supply voltage of 100 VAC using the isolated probe (700929)
AC200V When measuring a supply voltage of 200 VAC using the isolated probe (700929)
EM Pickup Power-generating electromagnetic pickup
Pull -up 5V Open-collector output sensor and contact circuit
The Pull Up setup menu appears only when
you set the preset to Pull-up 5V.
