6-12
IM 701210-05E

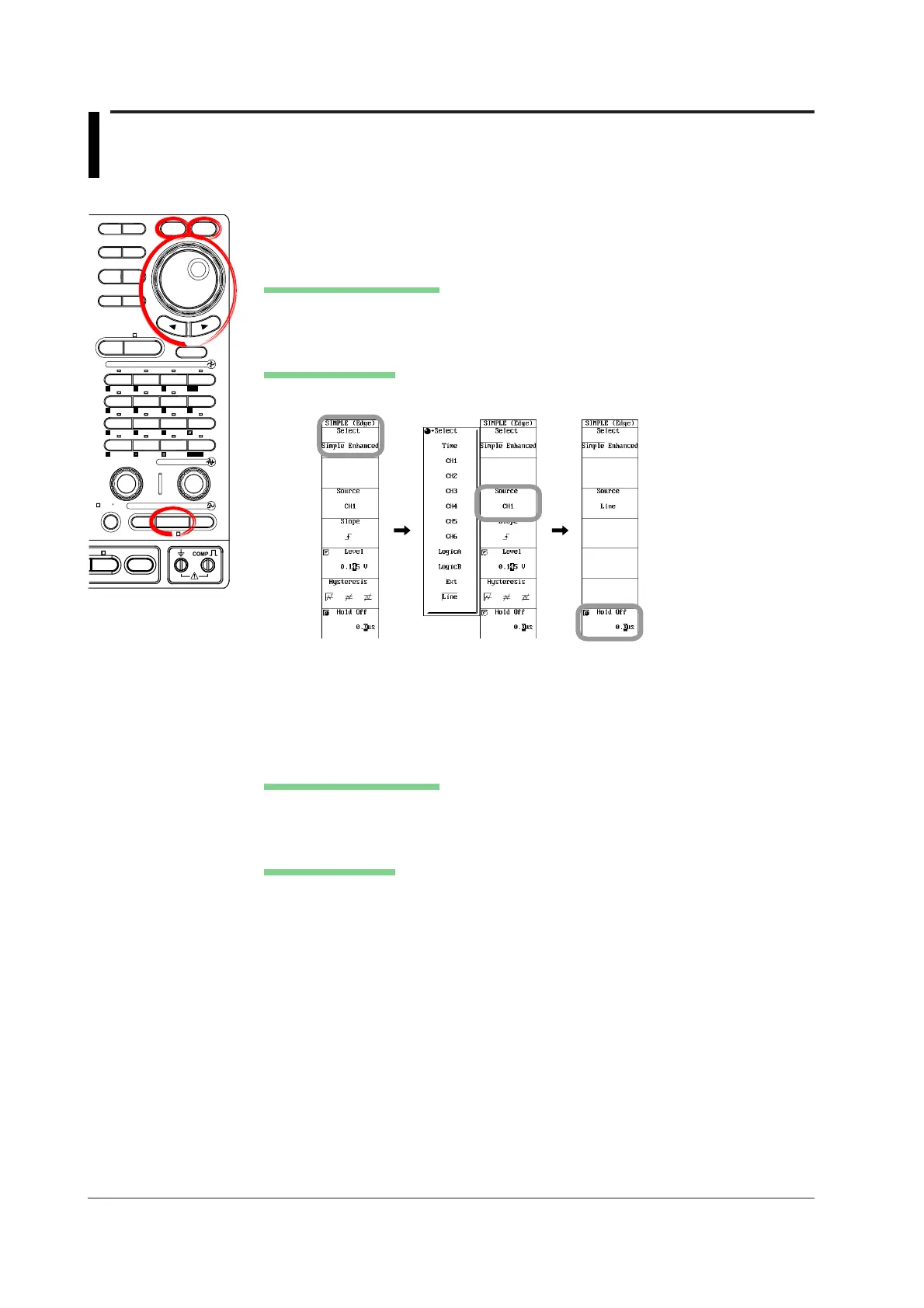

6.7 Generating Triggers on the Power Signal
(SIMPLE)
<For a description of this function, refer to page 2-20.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Simple.
Setting the Trigger Source
3. Press the Source soft key. The trigger source selection menu appears.
4. Use the jog shuttle and SELECT to select Line.
Setting the Hold Off
5. Set the hold off time according to the procedures given in section 6.4.
DSP1 to DSP6 are optional.
Explanation
Triggers can be generated on the rising edge of the power signal that is being supplied
to the DL750/DL750P. Waveforms can be observed by synchronizing to the commercial
power supply frequency (50 Hz or 60 Hz).
Setting the Trigger Source
Select Line. The power signal that is being supplied to the DL750/DL750P becomes the
trigger source.
Setting the Hold Off
For details, see section 6.4, “Setting the Hold Off Time.”
To Next Page
