5-18
IM 701210-05E

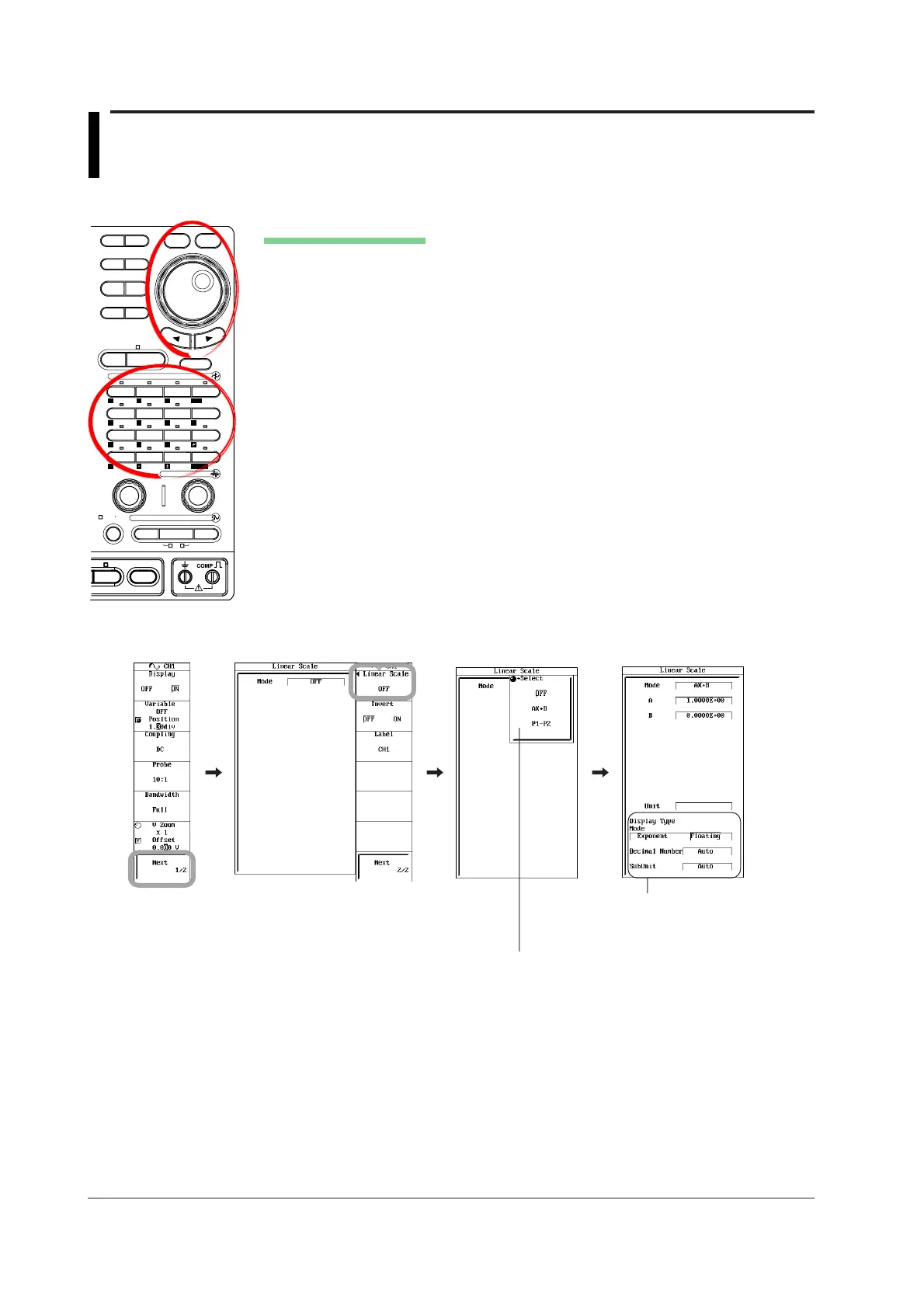

5.11 Using the Linear Scaling Function (AX+B, P1-P2)
<For a description of this function, refer to page 2-10.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
Selecting Linear Scaling
1. Press a key from CH1 to CH16 keys to select the desired channel.
2. Press the Next 1/2 soft key.
3. Press the Linear Scale soft key. A Linear Scale setup dialog box appears.
4. Use SELECT, jog shuttle, and SELECT to set Mode to AX+B or P1-P2.
• When AX+B Is Selected
5. Use SELECT and the jog shuttle to set A (scaling coefficient).
6. Use SELECT and the jog shuttle to set B (offset voltage).
• Setting the Unit
7. As necessary, enter the Unit according to the procedures given in section 4.2.
When measuring voltage on the voltage module or strain on the strain module,
proceed to step 8.
• Setting the Display Type
8. Use SELECT and the jog shuttle to set Mode under Display Type to Exponent
or Floating.
9. If Floating was selected in step 8, use SELECT and the jog shuttle to set
Decimal Number and SubUnit.
Select the number of digits to the right of the decimal from Auto, 0 to 3.
Select the sub unit from Auto, p, n, µ, m, None, k, M, G, and T.
When measuring voltage on the voltage
module or strain on the strain module, the
setup items for display type is displayed.
On the 701271 (STRAIN_DSUB), “Shunt” is displayed.
The Shunt item is used to perform shunt calibration on
the strain module. For the setup procedure of Shunt,
see section 5.17.
To Next Page
