YOKOGAWA DL750 User Manual

5-19
IM 701210-05E
Horizontal and Vertical Axes
5
5.11 Using the Linear Scaling Function (AX+B, P1-P2)
• When P1-P2 Is Selected
5. Use SELECT and the jog shuttle to set the P1:X value. Or, turn the jog
shuttle to select Get Measure P1:X and then press SELECT to read the
measured value into P1:X.
6. Use SELECT and the jog shuttle to set the P1:Y value.
7. Use SELECT and the jog shuttle to set the P2:X value. Or, turn the jog
shuttle to select Get Measure P2:X and then press SELECT to read the
measured value into P2:X.
8. Use SELECT and the jog shuttle to set the P2:Y value.
• Setting the Unit
9. As necessary, enter the Unit according to the procedures given in section 4.2.
When measuring voltage on the voltage module or strain on the strain module,
proceed to step 10.
• Setting the Display Type
10. Use SELECT and the jog shuttle to set Mode under Display Type to Exponent
or Floating.
11. If Floating was selected in step 8, use SELECT and the jog shuttle to set
Decimal Number and SubUnit.
Select the number of digits to the right of the decimal from Auto, 0 to 3.
Select the sub unit from Auto, p, n, µ, m, None, k, M, G, and T.

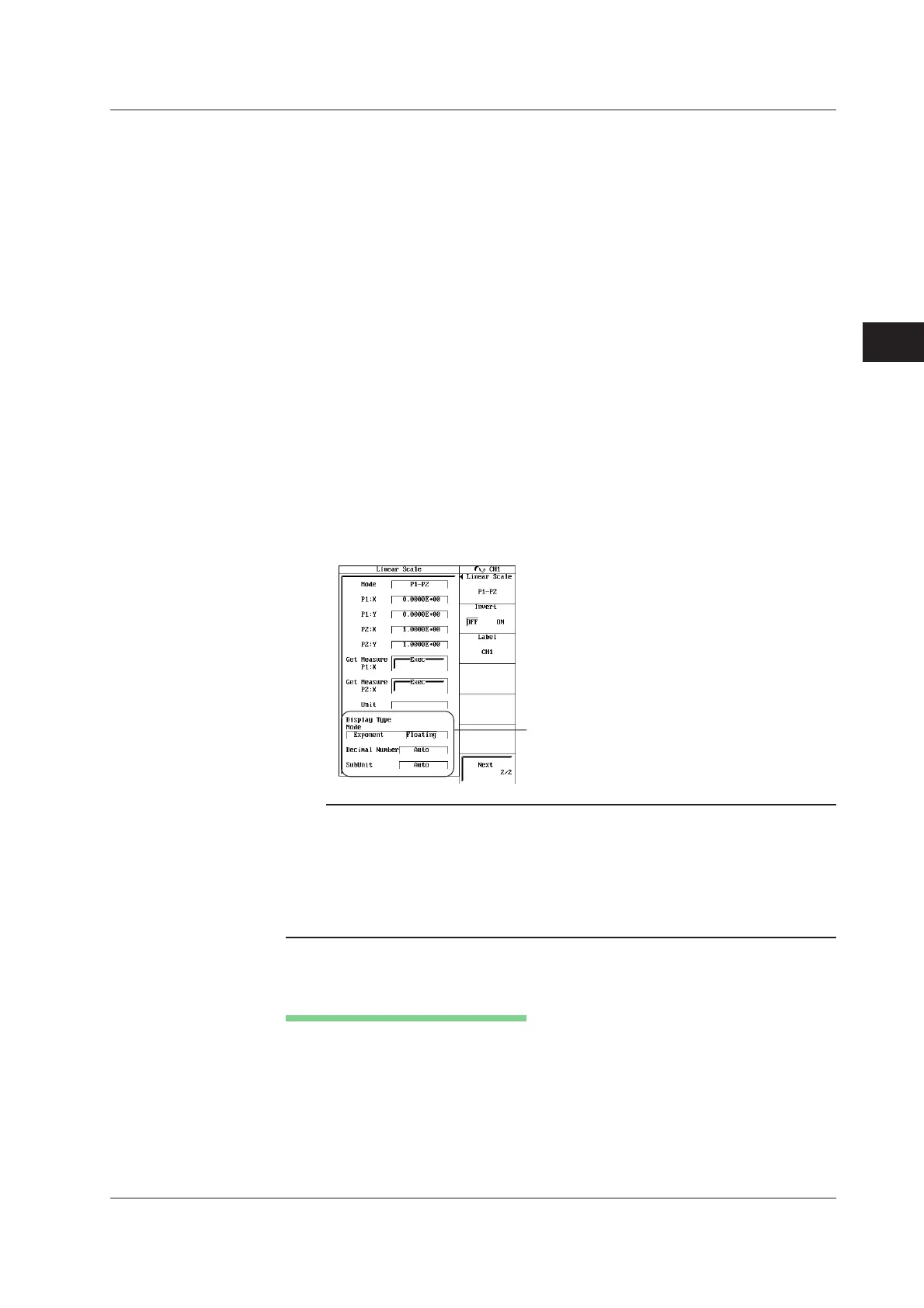

When measuring voltage on the voltage
module or strain on the strain module, the
setup items for display type is displayed.
Note
• Linear scaling is not possible when observing temperature or acceleration.
• Linear scaling is not available for the following waveforms.
Snapshot waveforms
Accumulated waveforms (excluding the newest waveform)
• Linear scaling is set for each channel.
• The scaling coefficient A and offset value B that you entered are held even if you turn OFF
the linear scaling function.
• Computation is performed using the linear scaling results.
Explanation
There are two linear scaling methods available: AX+B and P1–P2.
Selecting the Linear Scaling Method
Select the linear scaling method from the following:
• OFF
No linear scaling.
• AX+B
The results obtained from the following computation based on the specified scaling coefficient
A and offset B are displayed as cursor measurement values and automated measurement
values of waveform parameters. You can also assign a unit to the result of linear scaling.
Y = AX + B (where X is the measured value and Y is the linear scaling result)
