11-1
IM 701210-06E
Waveform Analysis/Search
11
Chapter 11 Waveform Analysis/Search
11.1 Displaying History Waveforms
<For a description of this function, refer to page 2-53.>

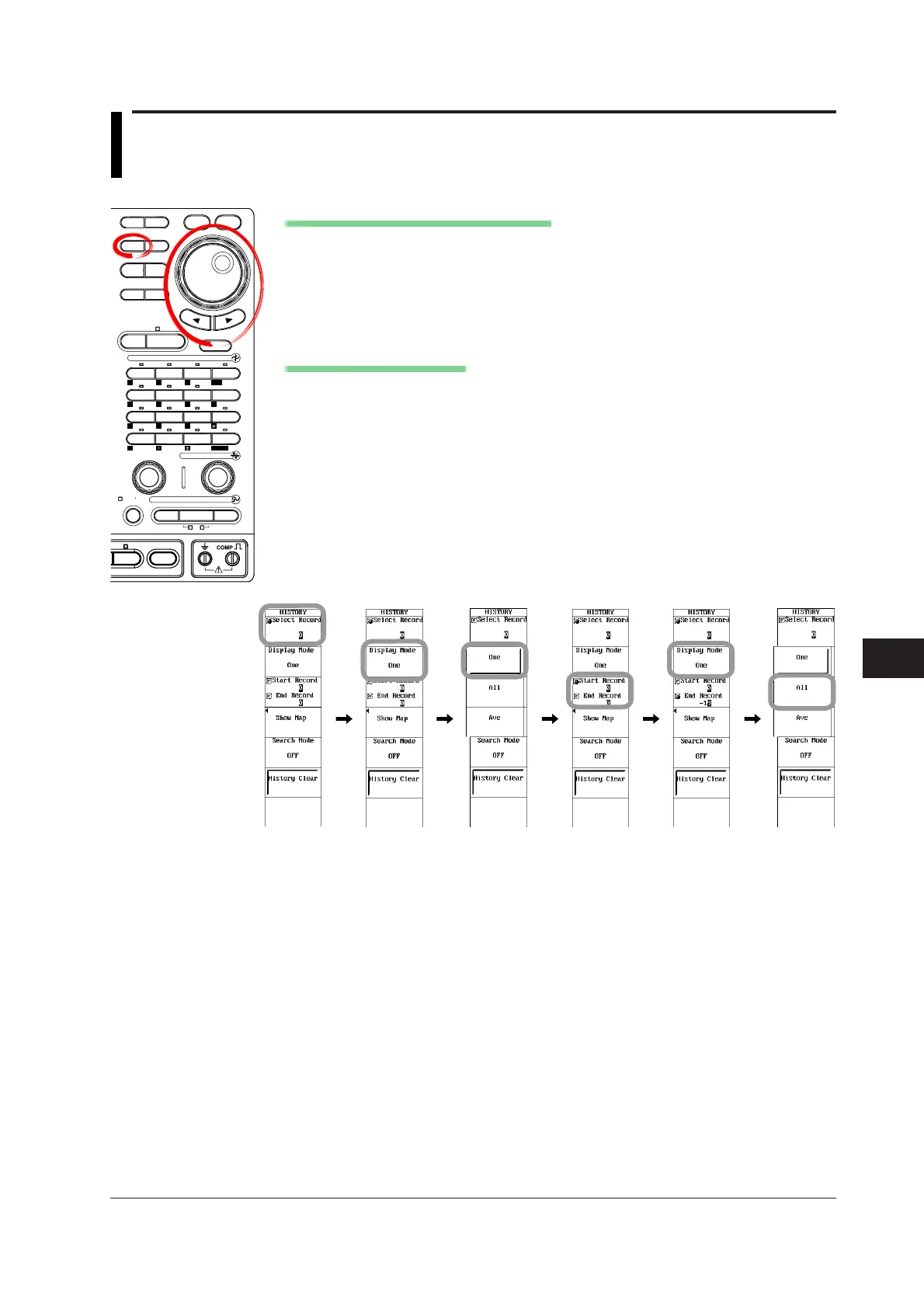

Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
Recalling Data from the History Memory
1. Press HISTORY.
2. Press the Select Record soft key.
3. Turn the jog shuttle to set the record No. you wish to recall. Set the record No.
in the range of Start Record to End Record.
4. Press the Display Mode soft key to select One.
Data Accumulation Display
5. Press the Start Record/End Record soft key to set the jog shuttle control to
Start Record.
6. Turn the jog shuttle to set the first record No. to be accumulated.
7. Likewise, set the last record No. (End Record) to be accumulated.
8. Press the Display Mode soft key to select All.
The data of record numbers specified in steps 5 to 7 are displayed accumulated.
To abort the accumulated display, press the Display Mode soft key to select
One.
To Next Page
