Average Display of Data
9. Press the Start Record/End Record soft key to set the jog shuttle control to
Start Record.
10. Turn the jog shuttle to set the first record No. to be averaged.
11. Likewise, set the last record No. (End Record) to be averaged.
12. Press the Display Mode soft key to select Ave.
The data of record numbers specified in steps 5 to 7 are displayed averaged.
To abort the average display, press the Display Mode soft key to select One.
Displaying a List of Time Stamps

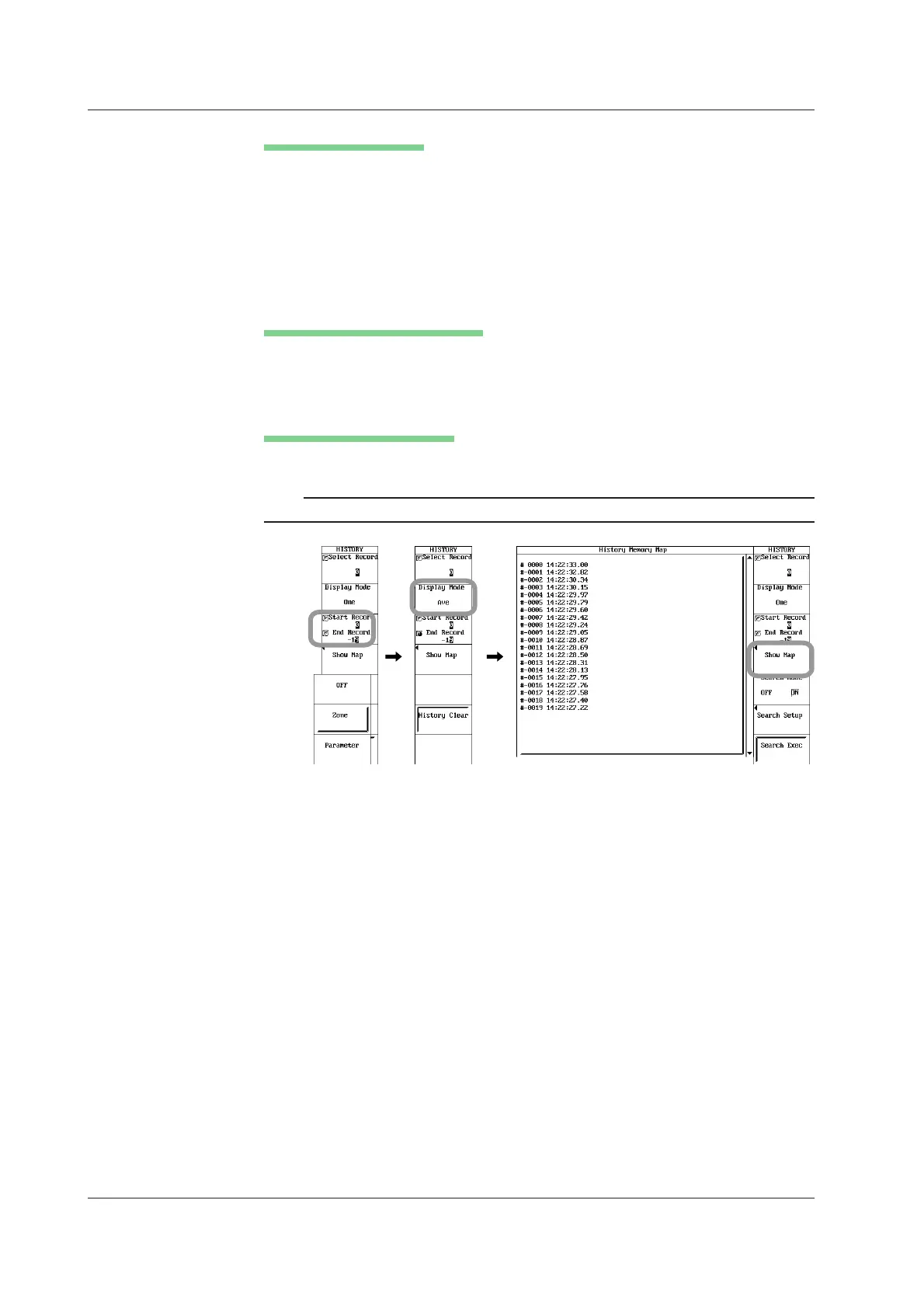

13. Press the Show Map soft key. A list of acquired data numbers and the time at
acquisition end are displayed.
14. Turn the jog shuttle to select the data you wish to display and press SELECT.
Clearing the History Memory
15. Press the History Clear soft key. All the waveforms in the acquisition memory
are cleared.
Note
Waveform acquisition cannot be started when the HISTORY menu is displayed.
11.1 Displaying History Waveforms
To Next Page
