11-38
IM 701210-06E

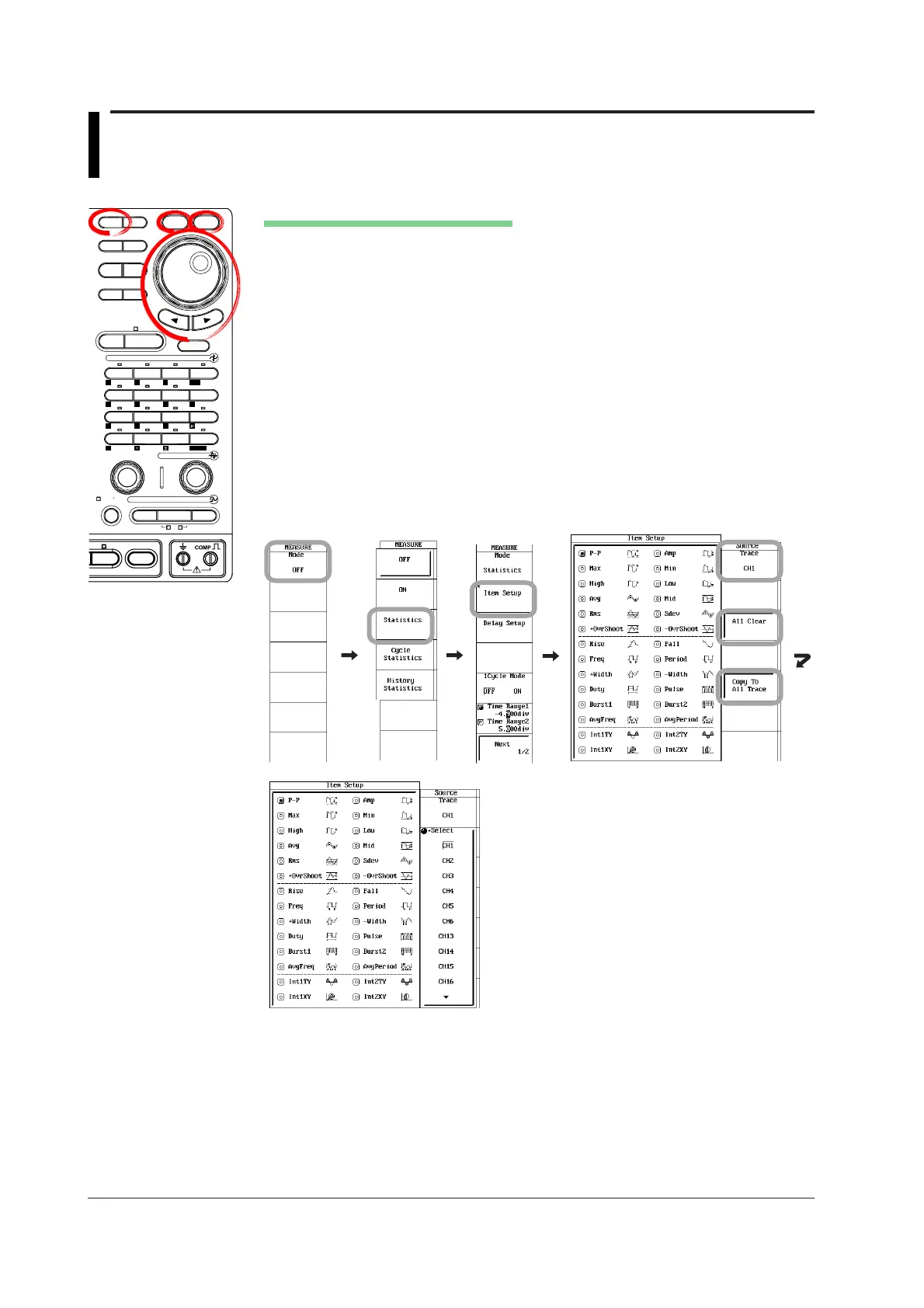

11.7 Performing Statistical Processing
<For a description of this function, refer to page 2-57.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
Setting Normal Statistical Processing
1. Press MEASURE.
2. Press the Mode soft key to select Statistics.
3. Press the Item Setup soft key. The measurement parameter dialog box and the
measurement channel menu appear.
4. Press the Trace soft key and use the jog shuttle and SELECT to select the
measurement channel.
5. Turn the jog shuttle to move the cursor to the parameter you wish to turn ON.
6. Press SELECT to turn on the parameter selected in step 5.
You can turn OFF all parameters at once by pressing the All Clear. You can
copy the current parameter settings to all traces by selecting “Copy to All
Trace.”
7. Repeat steps 4 to 6 as many times as necessary. Press ESC.
The setting of other parameters is the same as the automated measurement of
waveform parameters (see step 8 and following steps in section 11.6).
DSP1 to DSP6 are optional.
