6-5
IM 701210-05E
Triggering
6

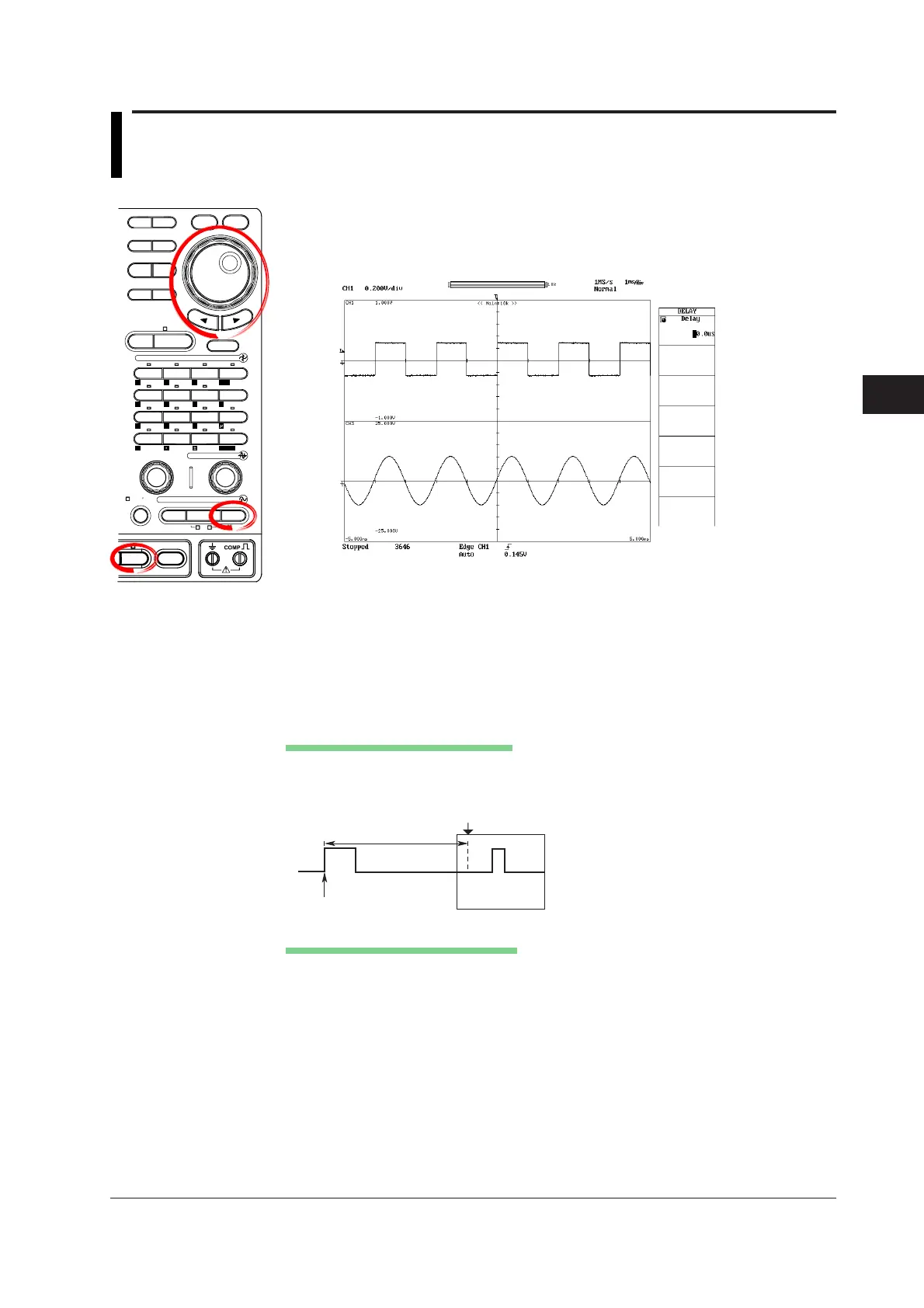

6.3 Setting the Trigger Delay
<For a description of this function, refer to page 2-28.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SHIFT+POSITION.
2. Turn the jog shuttle to set the trigger delay.
Press RESET to reset the value corresponding to the selected unit to 0.0 µs.
Explanation
Although the display usually shows the waveform before and after the trigger point, it is
possible to display the acquired waveform after a fixed time period elapses using the
delay function.
Selectable Range of Trigger Delay
0 to 10 s
(Minimum resolution is 100 ns.)
Delay
Trigger point
T (Trigger position)
Notes for Setting the Trigger Delay
• When T/div is changed, the trigger delay remains unchanged.
