8-1
IM 701210-05E
Display
8
Chapter 8 Display
8.1 Changing the Display Format
<For a description of this function, refer to page 2-37.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT

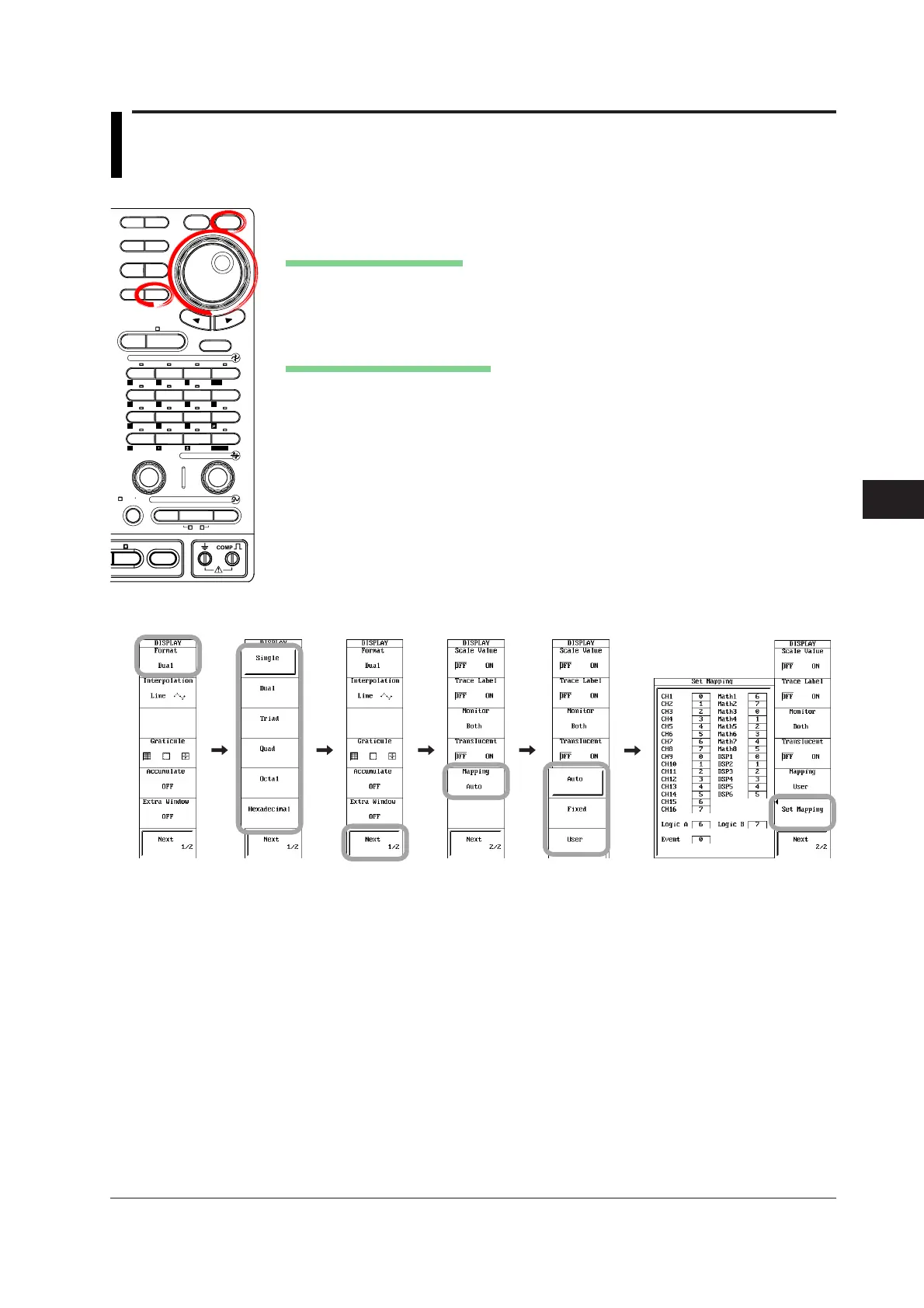

1. Press DISPLAY.
Setting the Display Format
2. Press the Format soft key. The format selection menu appears.
3. Press the soft key corresponding to the desired format from Single (one division)
to Hexadecimal (16 divisions).
Setting the Waveform Mapping
4. Press the Next 1/2 soft key.
5. Press the Mapping soft key to select Auto, Fixed, or User. If you select User,
proceed to step 6.
6. Press the Set Mapping soft key. The waveform mapping setup menu appears.
7. Use the jog shuttle and SELECT to set the mapping number of each channel.
Mapping: User
DSP1 to DSP6 are optional.
