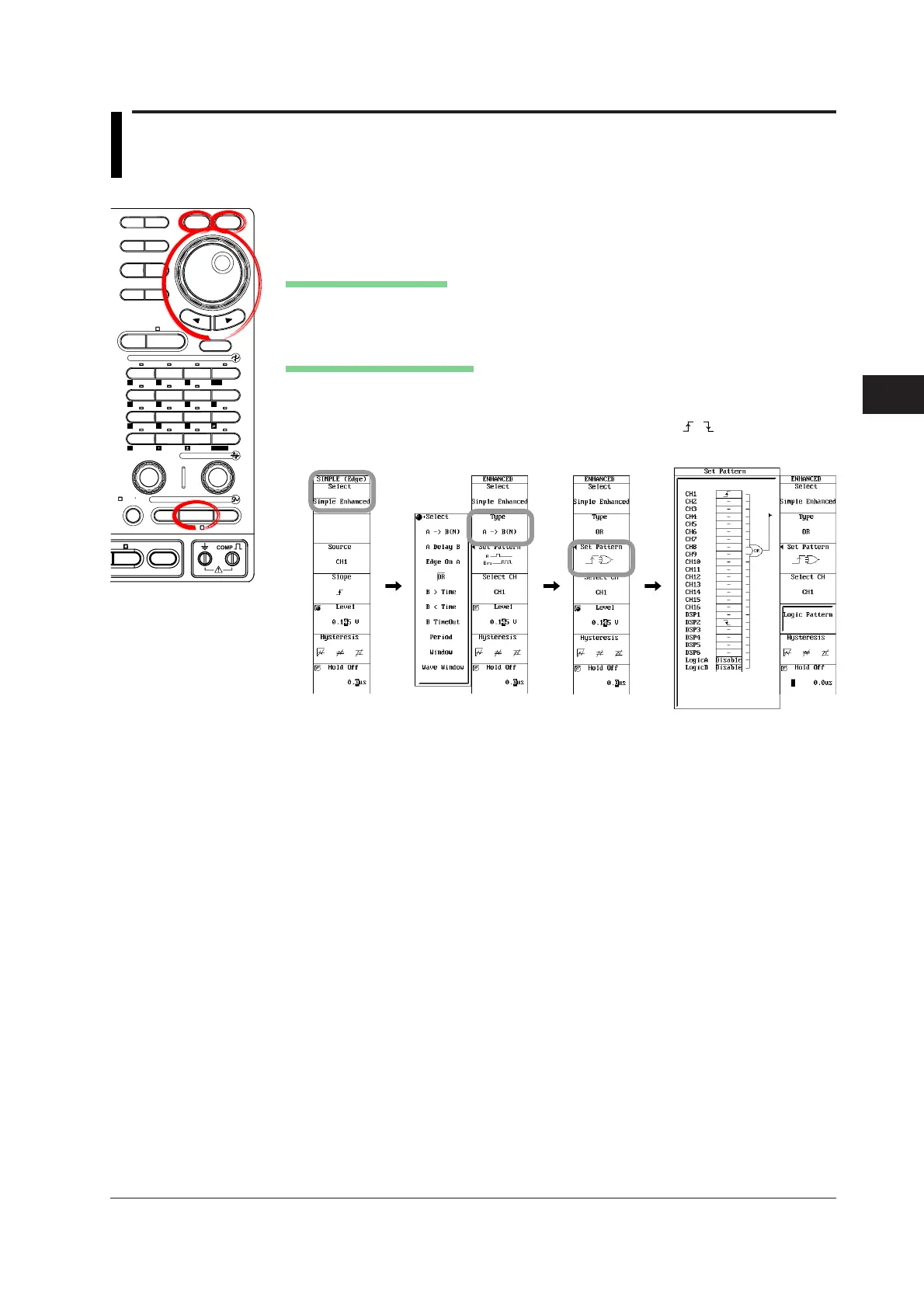

6.13 Setting the OR Trigger (ENHANCED)
<For a description of this function, refer to page 2-22.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Enhanced.
Setting the Trigger Type
3. Press the Type soft key. The trigger type selection menu appears.
4. Use the jog shuttle and SELECT to select OR.
Setting the Edge Trigger OR
5. Press the Set Pattern soft key. The OR trigger setup menu appears.
6. Use the jog shuttle and SELECT to select the edge trigger OR status of each
channel (CH1 to CH16, DSP1 to DSP6 (optional)) from , , and –. For logic
input channels, select Disable or Enable.
To Next Page
