13-38
IM 701210-06E

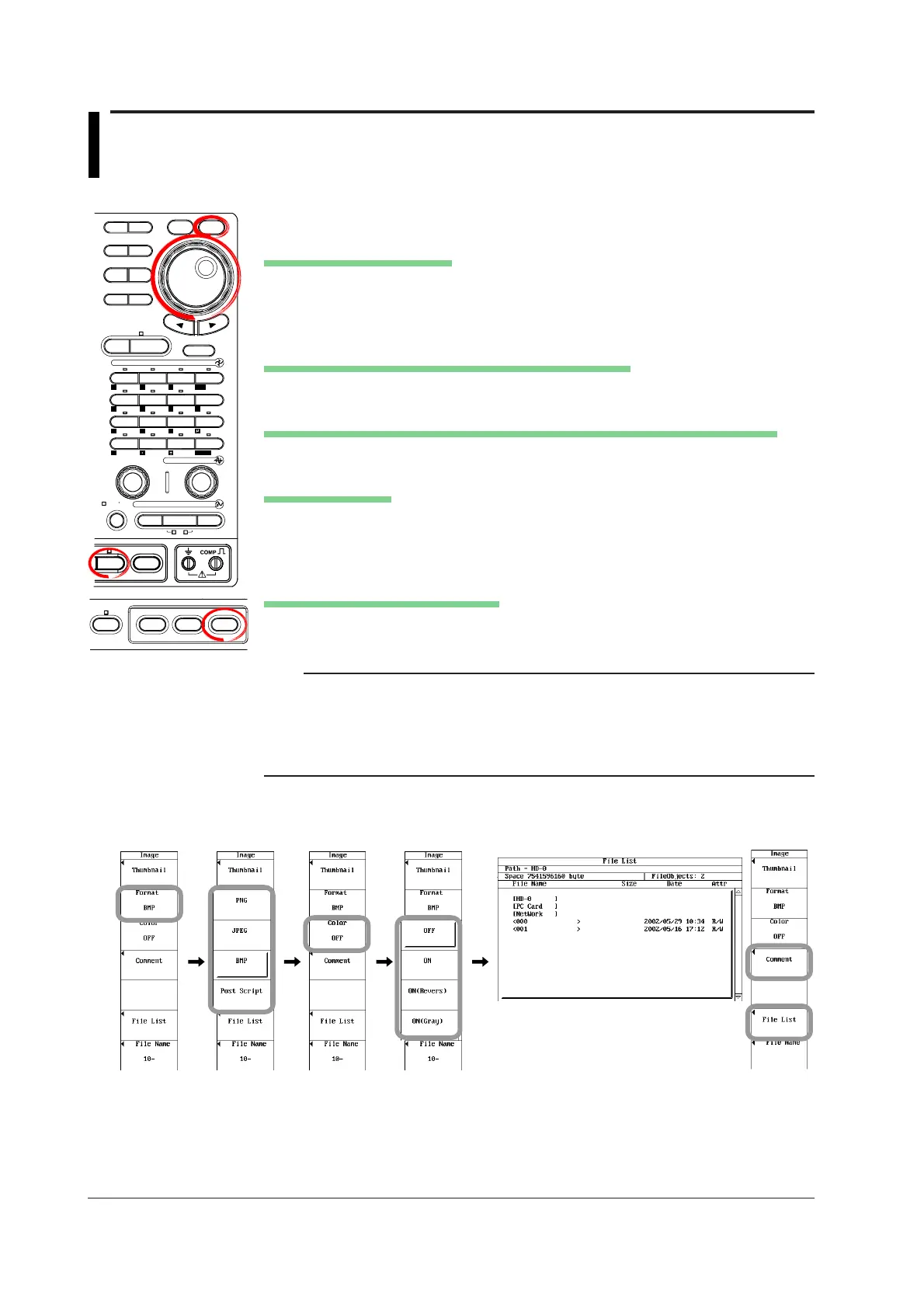

13.11 Saving Screen Image Data
<For a description of this function, refer to page 2-63.>
Procedure
PROTECT
VOICE
MEMO
SAVE
PRINT
MENU MENU
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SHIFT+IMAGE SAVE.
Selecting the Output Format
2. Press the Format soft key.
3. Press the soft key corresponding to the desired output format from PNG, JPEG,
BMP, and Post Script.
Setting the Color (When Format Is PNG, JPEG, or BMP)
4. Press the Color soft key to select ON, ON(Revers), ON(Gray), or OFF.
Setting the Compression Format (When Format Is BMP and Color Is Not OFF)
5. Press the Compression soft key to select ON or OFF.
Setting a Comment
5. Press the Comment soft key.
6. Enter the comment using up to 20 characters according to the procedure given
in section 4.2.
Selecting Save Destination Medium
7. Press the File List soft key. The save destination File List window appears.
8. Turn the jog shuttle to select the save destination storage medium.
Note
Storage media such as the built-in floppy disk, Zip disk, PC card, internal HD (option),
external SCSI device, and USB storage device are displayed in brackets.
• Floppy disk [FD] • Zip disk [ZIP]
• PC card [PC Card] • Internal hard disk [HD]
• External SCSI device [SCSI] • USB storage device [USB]
Directories are displayed using < >.
9. Press SELECT. The contents of the selected storage medium or directory are
displayed.
To Next Page
