YOKOGAWA DL750 User Manual

11-50
IM 701210-06E
11.9 GO/NO-GO Determination Using Measured
Waveform Parameters
<For a description of this function, refer to page 2-58.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

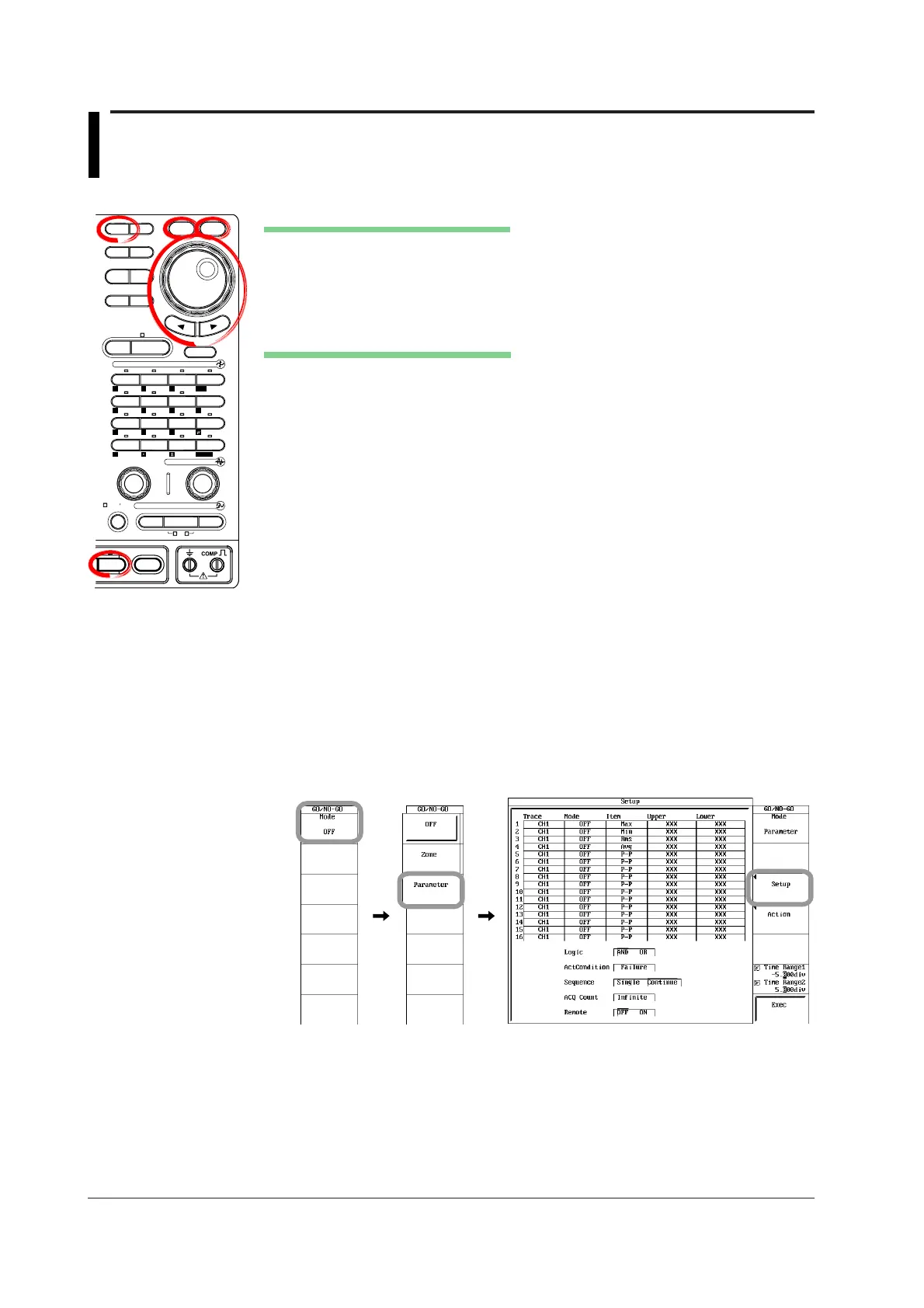

Setting GO/NO-GO Determination Mode
1. Press SHIFT+MEASURE.
2. Press the Mode soft key. A menu for setting GO/NO-GO determination mode
appears.
3. Press the Parameter soft key.
Setting the Determination Conditions
4. Press the Setup soft key. A criteria setup dialog box appears. Use the jog
shuttle or arrow keys to move the cursor to the item you wish to set.
• Selecting the Target Waveform
5. Use the jog shuttle and SELECT to set Trace of number 1.
• Selecting the Determination Criteria
6. Use the jog shuttle and SELECT to set Mode of number 1 to OFF, OUT, or IN.
• Selecting the Parameter
7. Use the jog shuttle and SELECT to select Item of number 1 from P-P to
Int2XY.
8. As necessary, set items 2 to 16.
• Setting the Upper and Lower Limits
9. Use the jog shuttle and SELECT to set Upper of number 1.
10. Likewise, set Lower of number 1.
• Setting the Logic
11. Use the jog shuttle and SELECT to set Logic to AND or OR.
• Setting the Action Condition
12. Use the jog shuttle and SELECT to set ActCondition to Always, Failure, or
Success.
