YOKOGAWA DL750 User Manual

9-12
IM 701210-05E
9.5 Recording T-Y Waveforms (T-Y Waveform
Recording)
<For a description of this function, refer to page 2-43.>
Procedure
Before carrying out the procedure below, set the recording conditions and recording
format of T-Y waveform recording according to the procedures in sections 9.2 to 9.4.
Starting/Stopping T-Y Waveform Recording

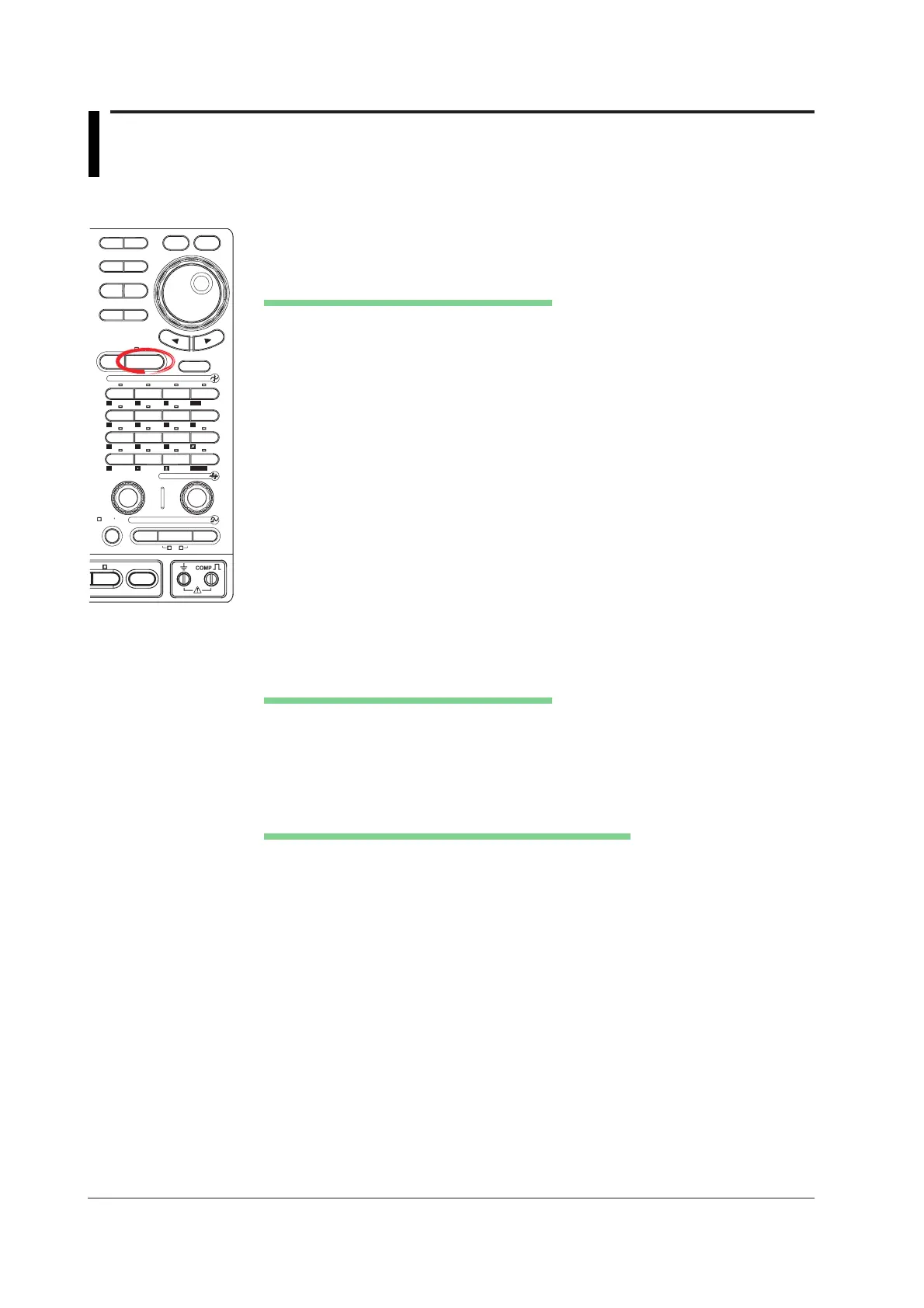

1. Press START/STOP to start the waveform acquisition and T-Y waveform
recording.
2. To stop T-Y waveform recording, press START/STOP again. Waveform
acquisition and T-Y waveform recording stop.
Explanation
Starting/Stopping T-Y Waveform Recording
When waveform acquisition is started by pressing the START/STOP key, T-Y waveform
recording to the built-in printer also starts. To abort the T-Y waveform recording, press
the START/STOP key to stop the waveform acquisition. However, if the T-Y waveform
recording to the built-in printer was set to OFF in section 9.4, the data is saved only to
the internal memory. T-Y waveform recording to the built-in printer is not performed.
Changing the Settings during T-Y Waveform Recording
• The input conditions can be changed even during T-Y waveform recording. (The
recording does not stop.)
• Calibration is not executed during T-Y waveform recording.
• The recording format cannot be changed during T-Y waveform recording.
• The chart speed can be changed even during T-Y waveform recording. (The data
after the chart speed is changed is saved to the internal memory.)
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
RECORDER
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
DUAL
CAPTURE
