5.8 Zooming Vertically by Setting the Zoom Rate
<For a description of this function, refer to page 2-7.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

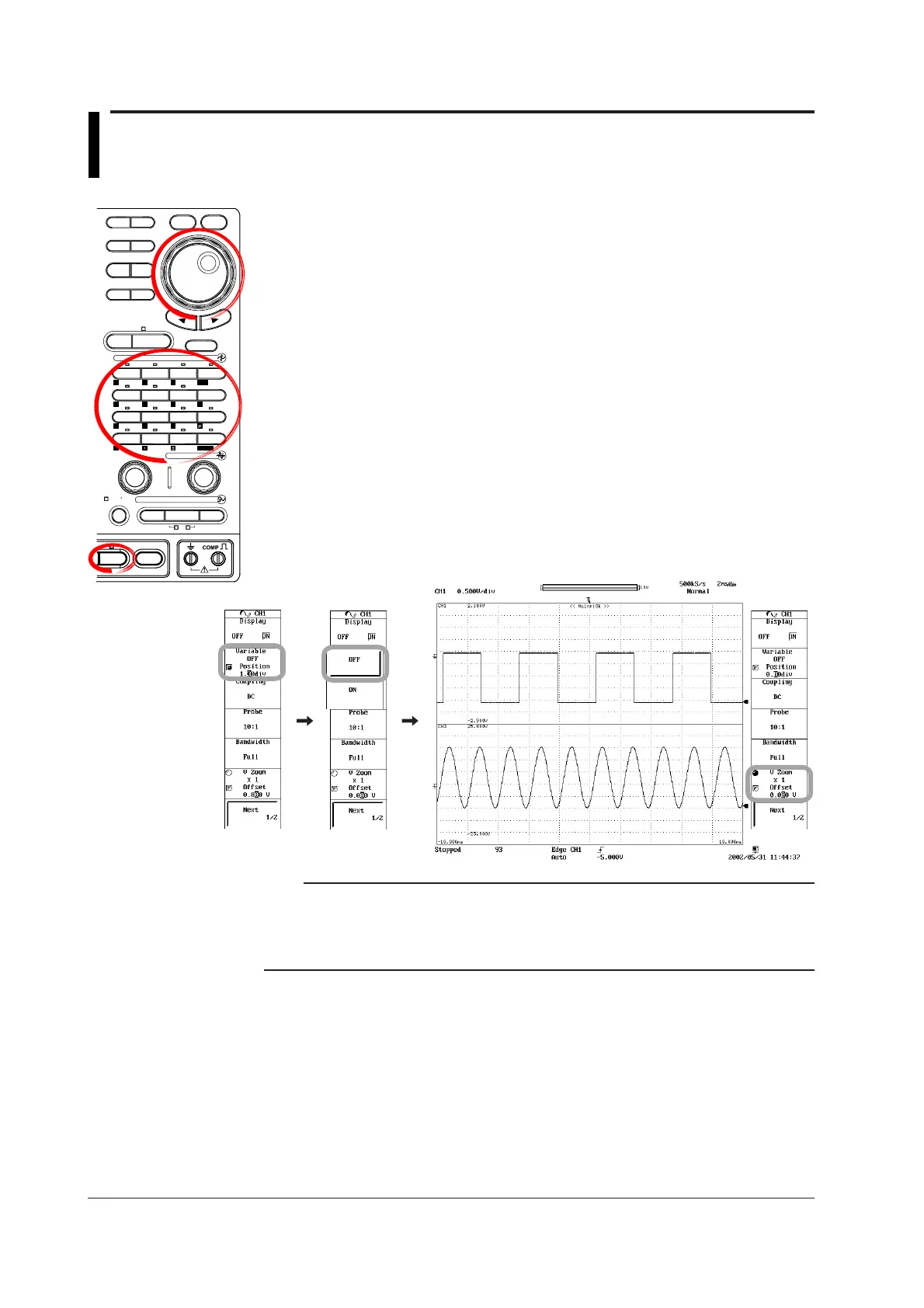

1. Press a key from CH1 to CH16 keys to select the desired channel.
To select a logic waveform, press SHIFT+CH9 (LOGIC A) or SHIFT+CH10
(LOGIC B).
To select an event waveform, press SHIFT+CH11 (EVENT).
To select a DSP channel (optional), press SHIFT + CH1 (DSP1) through SHIFT
+ CH6 (DSP6).
2. Press the Variable soft key to select OFF.
3. Press the V Zoom/Offset soft key (the V Zoom soft key for logic input) to set
the jog shuttle control to V Zoom.
4. Turn the jog shuttle to set the zoom rate.
Note
• Pressing the RESET key while the jog shuttle control is set to V Zoom sets the zoom rate
to ×1.
• When zooming in on the waveforms vertically using V Zoom, the V/div indication (upper
left corner of the screen) shows the V/div corresponding to the displayed waveform in the
top row and the value being entered using the V/DIV knob in the bottom row.
