9-6
IM 701210-05E

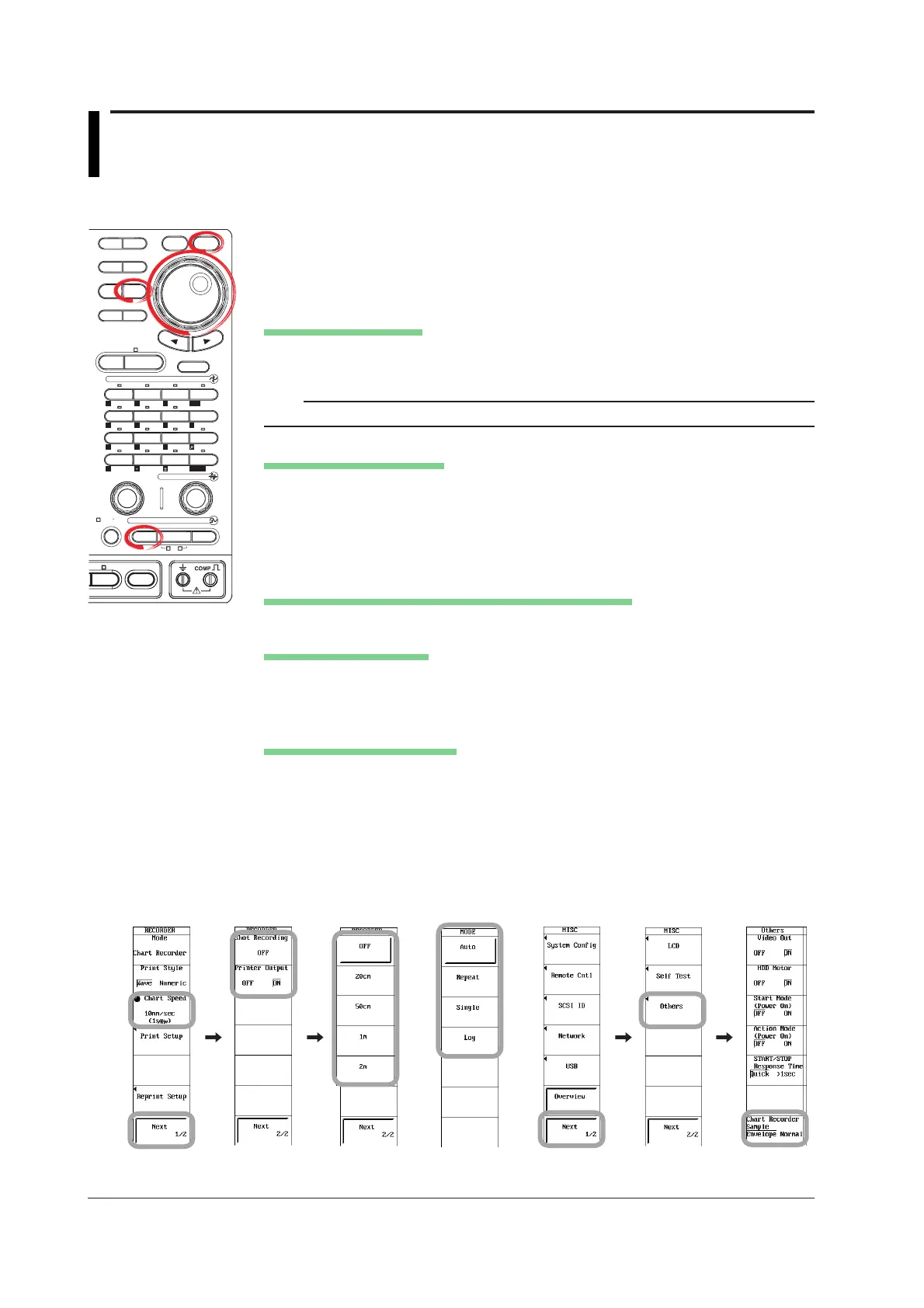

9.3 Setting the Record Conditions of T-Y
Waveform Recording
<For a description of this function, refer to page 2-43.>
Procedure
Before carrying out the procedure below, set the recorder mode and print style as follows
according to the procedures in section 9.2.
• Recorder mode: Chart Recorder
• Print style: Wave (T-Y waveform recording)
Setting the Chart Speed
1. Press the Chart Speed soft key.
2. Use the jog shuttle to set the chart speed in the range of 10 mm/h to 20 mm/s.
Note
The chart speed can also be set using the TIME/DIV knob.
Setting the Shot Recording
3. Press the Next 1/2 soft key
4. Press the Shot Recording soft key to display a menu used to select the length
of the short recording.
5. Press the soft key corresponding to the desired length of the short recording.
Select OFF (no shot recording), 20 cm, 50 cm, 1 m, or 2m.
Enabling/Disabling T-Y Recording to the Built-in Printer
6. Press the Printer Output soft key to select ON or OFF.
Setting the Trigger Mode
7. Press MODE.
8. Press the soft key corresponding to the desired mode to set the trigger mode to
Auto, Repeat, Single, or Log.
Setting the Acquisition Mode
Normally, the acquisition mode in Chart Recorder mode is envelope. If you wish to
switch to normal mode, carry out steps 9 to 12 below.
9. Press MISC.
10. Press the Next 1/2 soft key.
11. Press the Others soft key.
12. Press the Chart Recorder Sample soft key to select Envelope or Normal.
Set the trigger mode
Set the chart speed and enable/disable
shot recording and T-Y recording
Set the acquisition mode
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
RECORDER
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
DUAL
CAPTURE
To Next Page
