7-20
IM 701210-05E
7.8 Setting the Action When Waveform Display Is
Updated (Action-on-Stop)
<For a description of this function, refer to page 2-36.>

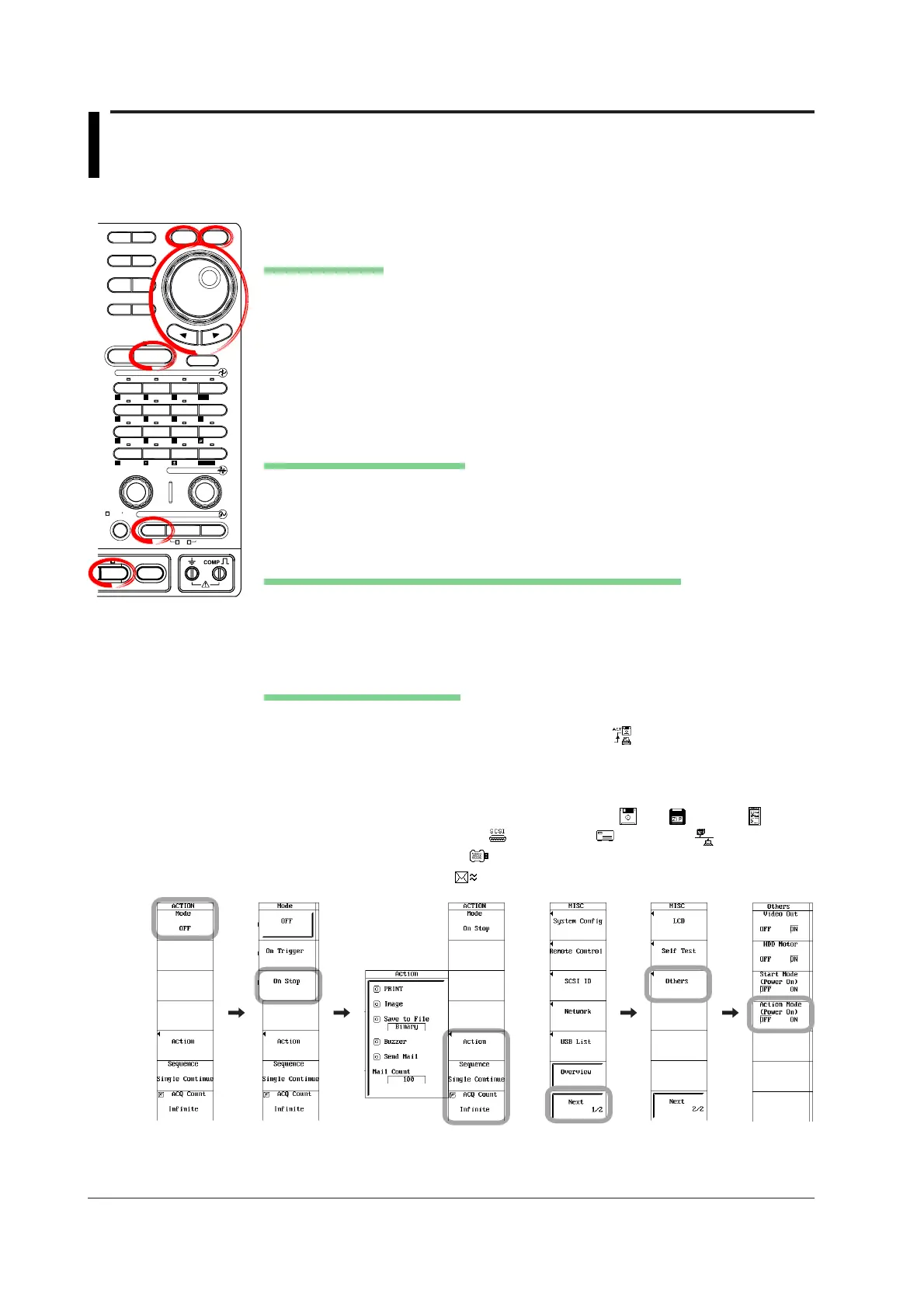

Procedure
1. Press SHIFT+MODE to display the ACTION menu.
Setting the Action
2. Press the Mode soft key to display the Mode setup menu.
3. Press the On Stop soft key.
4. Press the Action soft key to display the Action setup menu.
5. Use the jog shuttle and SELECT to select action to be enabled. (You can
select multiple actions.)
6. If you selected Save to File in step 3, use the jog shuttle and SELECT to set
the file save format to Binary, ASCII, or Float. If you selected Send Mail, use
the jog shuttle and SELECT to set Mail Count.
Setting the Number of Actions
7. Press the Sequence soft key to select Single or Continue.
8. Press the ACQ Count sof key.
9. Turn the jog shuttel to set the numeber of actions. Pressing RESET resets the
count Infinite.
Setting the Execution Mode of the Action-on-Stop at Power ON
10. Press MISC.
11. Press the Next 1/2soft key
12. Press the Others soft key.
13. Press the Action Mode (Power ON) soft key to select ON or OFF.
Executing the Action-on-Stop
14. Press START/STOP. Waveform acquisition is started, and action-on-stop is
executed. While action-on-stop is in execution, is displayed in the upper left
corner of the screen.
In addition, if the following action is specified, the following icon is displayed in
the upper left corner of the screen while the action is being executed.
Image/Save to File: Save destination medium (
FD, Zip disk, PC
card, SCSI device, internal HD, network drive,
or USB storage device)
Send Mail:
