Horizontal and Vertical Axes
5
5.20 Setting Logic Waveforms
<For a description of this function, refer to page 2-19.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

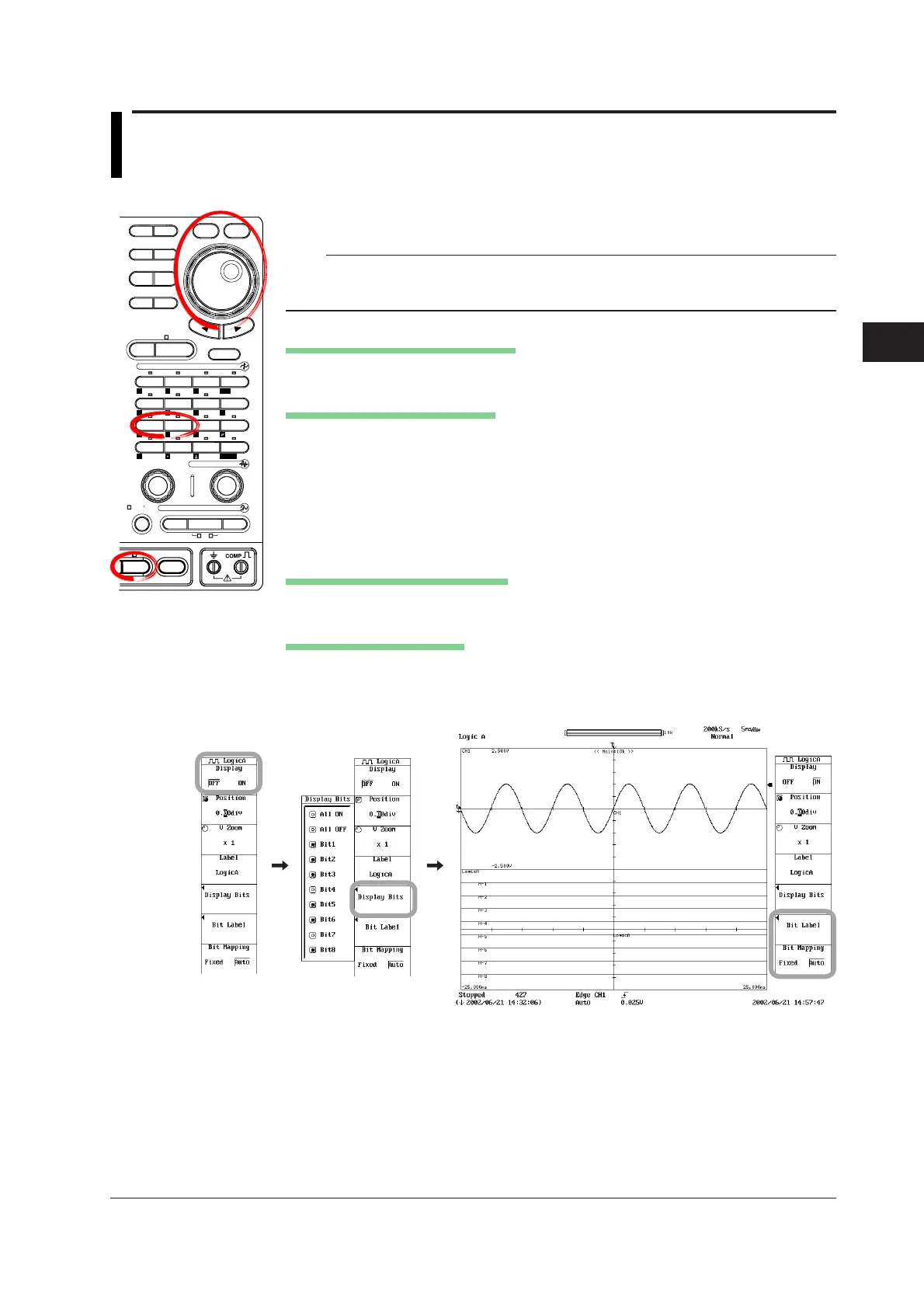

1. Press SHIFT+CH9(LOGIC A) or SHIFT+CH10(LOGIC B).
Note
For a description of setting the vertical position, see section 5.4. For a description of zooming
vertically by setting the zoom rate, see section 5.8. For a description of setting waveform
labels, see section 8.10.
Turning ON/OFF Logic Waveforms
2. Press the Display soft key to select ON or OFF.
Turning ON/OFF the Bit Display
3. Press the Display Bits soft key to display the display ON/OFF setup screen.
4. Turn the jog shuttle to move the cursor to the bit you wish to turn ON.
5. Press SELECT to turn it ON.
You can turn ON all items at once by selecting All ON.
You can turn OFF all items at once by selecting All OFF.
6. As necessary, repeat steps 4 and 5.
Selecting the Bit Display Position
7. Press the Bit Mapping soft key to select Fixed or Auto.
Setting Labels for Each Bit
8. Press the Bit Label soft key. A setup dialog box opens.
9. Turn the jog shuttle to move the cursor to the bit on which to set the label and
enter the label according to the procedures given in section 4.2.
