Triggering
6
6.9 Setting the Logic Trigger (SIMPLE)
<For a description of this function, refer to page 2-20.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT

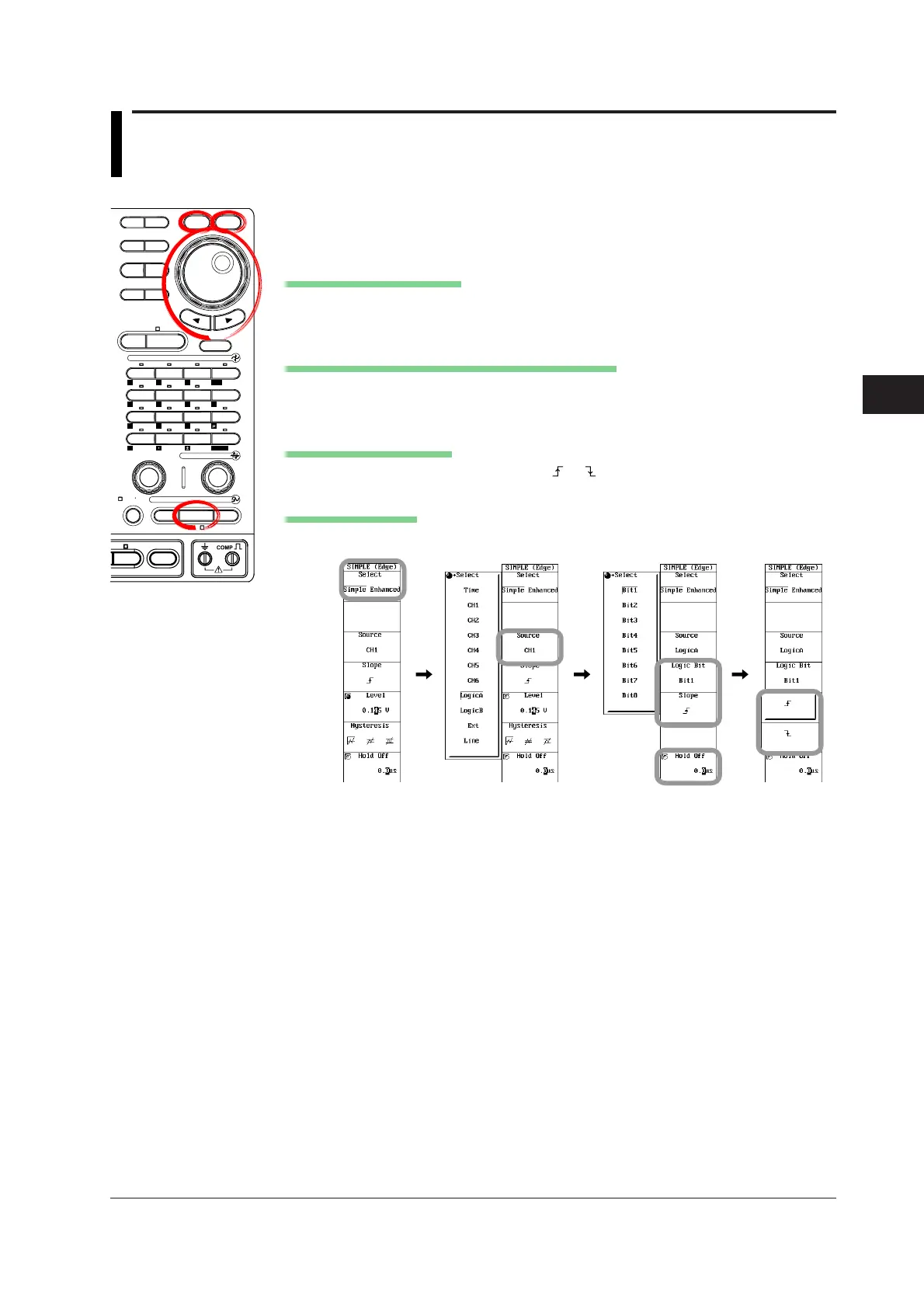

1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Simple.
Setting the Trigger Source
3. Press the Source soft key. The trigger source selection menu appears.
4. Use the jog shuttle and SELECT to select Logic A or Logic B.
Specifying the Bit for Assigning the Trigger Slope
5. Press the Logic Bit soft key. The bit source selection menu appears.
6. Use the jog shuttle and SELECT to set the bit to assign the trigger slope.
Setting the Trigger Slope
7. Press the Slope soft key to select or .
Setting the Hold Off
8. Set the hold off time according to the procedures given in section 6.4.
DSP1 to DSP6 are optional.
