YOKOGAWA DL750 User Manual

7-10
IM 701210-05E

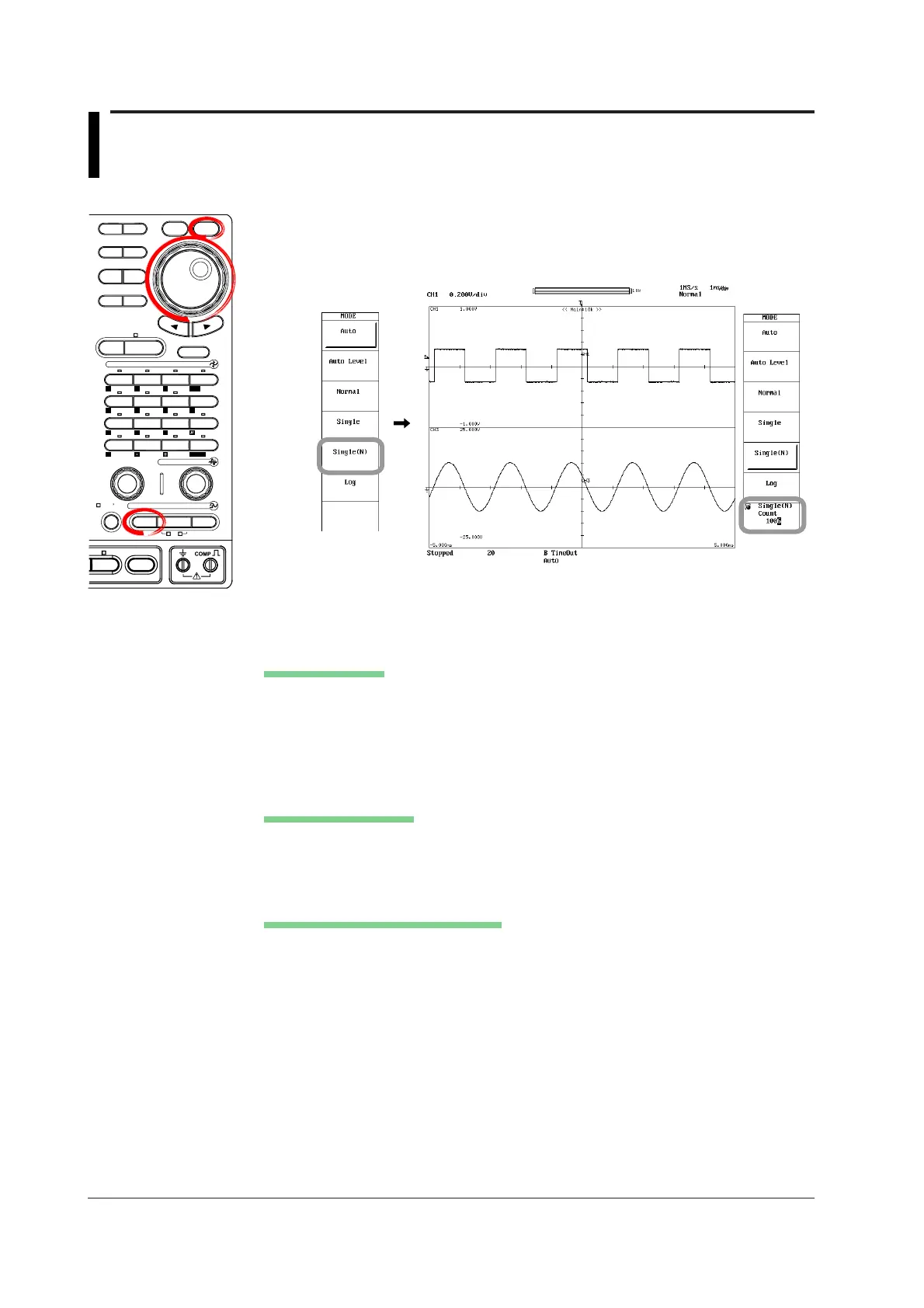

7.5 Acquiring Data Using the Sequential Store
Function (Single (N) Mode)
<For a description of this function, refer to page 2-33.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press MODE.
2. Press the Single(N) soft key.
3. Use the jog shuttle and SELECT to set Single(N) Count.
Explanation
By setting the trigger mode to Single(N), the sequential store function can be used.
Acquisition Count
Set the acquisition count in the range from 1 to 2000.
However, the selectable acquisition count varies depending on the selected record
length and acquisition mode.
For details, see appendix 1, “Relationship between the Time Axis Setting, Sample Rate
and Record Length.”
Displaying Waveforms
You can recall waveforms from memory in the same fashion as for the history memory
function.
For details, see section 11.1, “Displaying History Waveforms.”
Notes When Using Sequential Store
• If you stop waveform acquisition by pressing the START/STOP key, the sequential
store operation also stops. Sequential store restarts from the beginning when
acquisition resumes.
