YOKOGAWA DL750 User Manual

6-40
IM 701210-05E

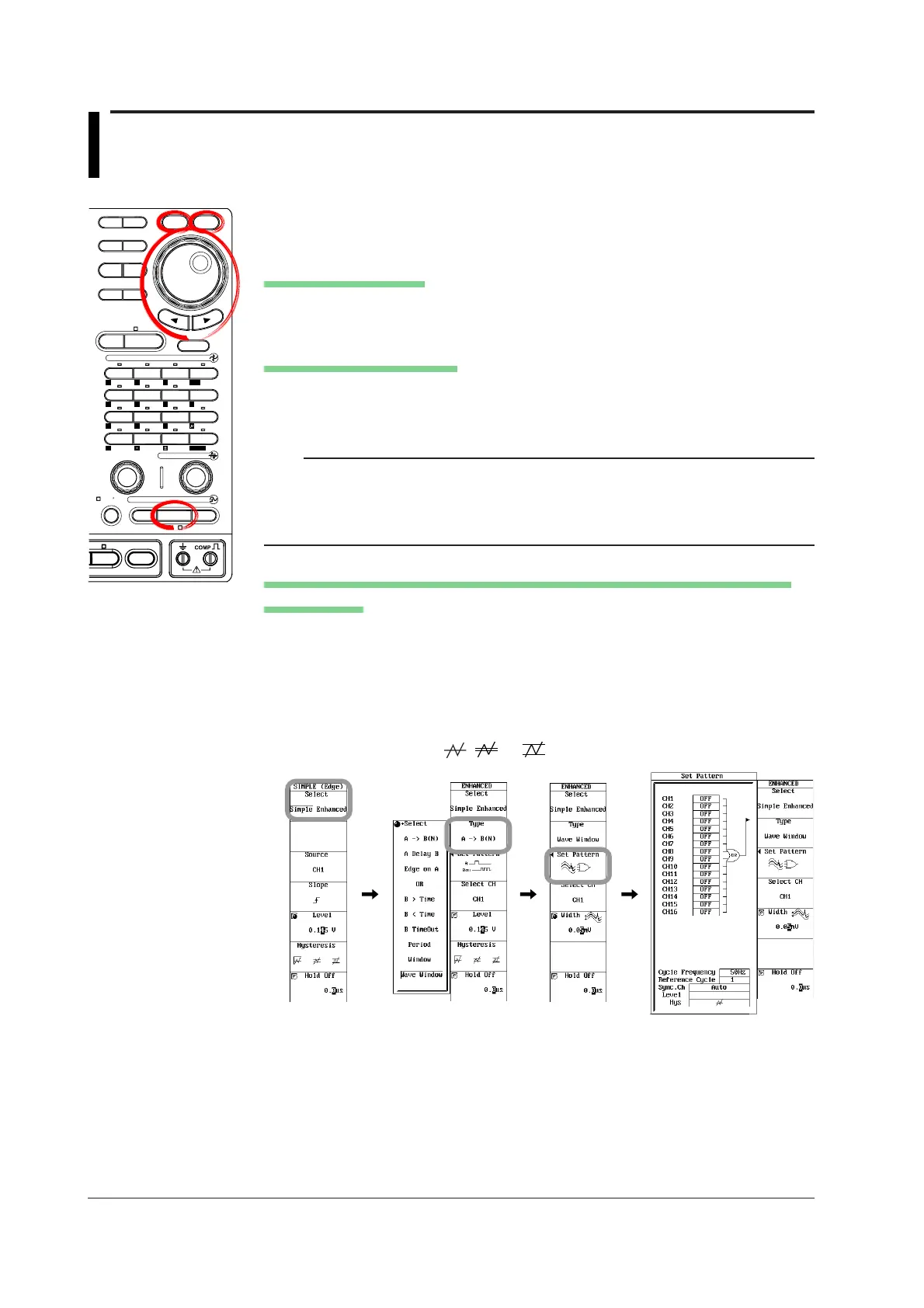

6.17 Setting the Wave Window Trigger (ENHANCED)
<For a description of this function, refer to page 2-26.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Enhanced.
Setting the Trigger Type
3. Press the Type soft key. The trigger type selection menu appears.
4. Use the jog shuttle and SELECT to select Wave Window.
Setting the Trigger Condition
5. Press the Set Pattern soft key. The Wave Window trigger setup menu appears.
6. Use the jog shuttle and SELECT to select the pattern of each channel (CH1 to
CH16) from ON and OFF.
Note
• The wave window trigger does not apply to the 701265 (TEMP/HPV) and the 701280
(FREQ).
• Wave window trigger is not applicable when measuring temperature on the 701261
(UNIVERSAL) or 701262 (UNIVERSAL (AAF)).
• Wave window trigger cannot be used in the recorder mode.
Setting the Cycle Frequency, Reference Cycle, Synchronization Channel, Level,
and Hysteresis
7. Use the jog shuttle, SELECT, and jog shuttle to set the Cycle Frequency.
Pressing RESET resets the frequency to 50 Hz.
8. Likewise, set the Reference Cycle to 1, 2, or 4.
9. Likewise, set Sync. Ch to Auto or CH1 to CH16.
10. If a setting other than Auto was selected in step 9, set the Level of the
synchronization channel.
11. Likewise, set Hys to , , or .
