5-21
IM 701210-05E
Horizontal and Vertical Axes
5

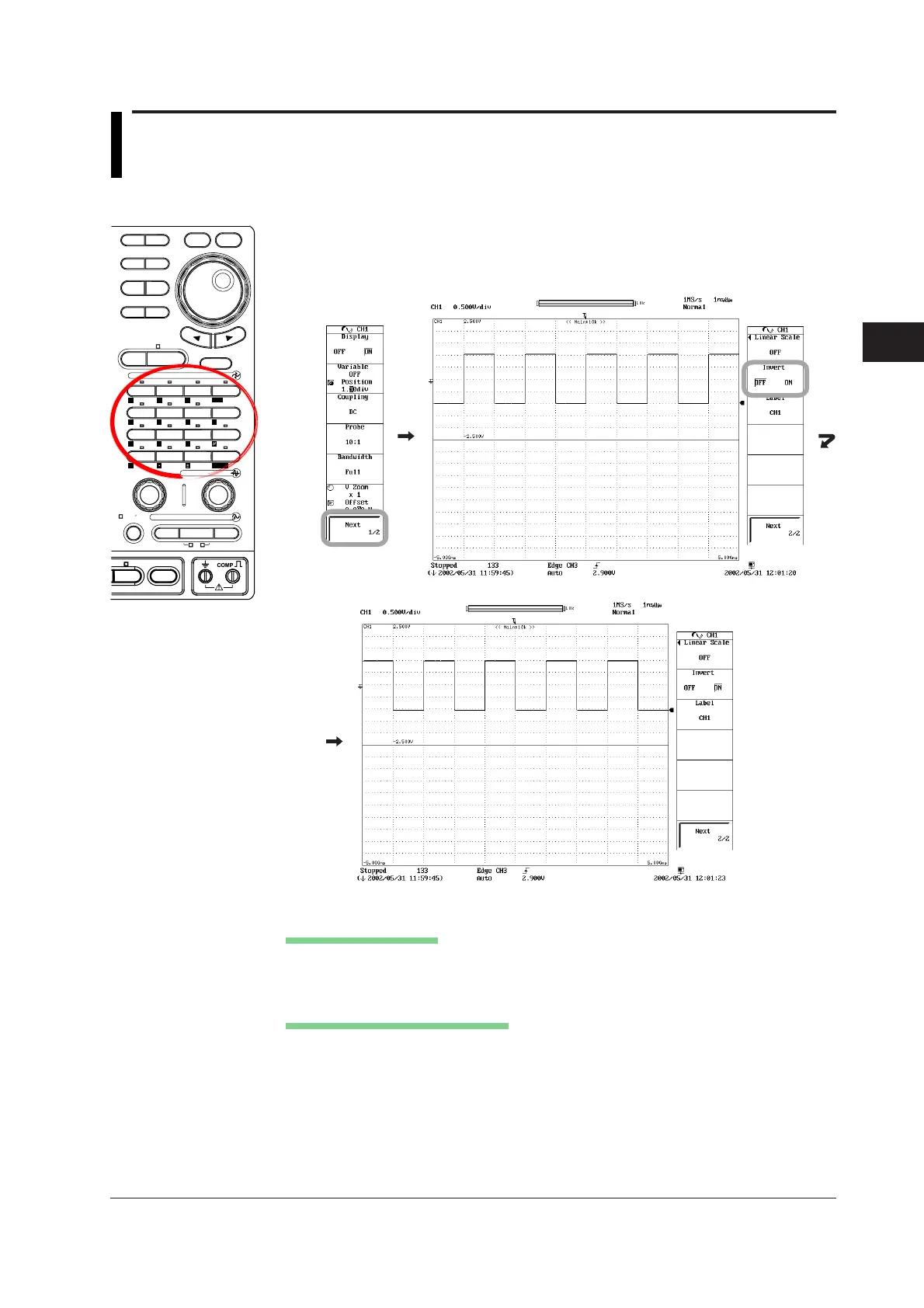

5.12 Inverting Waveforms
<For a description of this function, refer to page 2-10.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press a key from CH1 to CH16 keys to select the desired channel.
2. Press the Next 1/2 soft key.
3. Press the Invert soft key to select ON.
Explanation
Channel to Be Inverted
The input signals to channels CH1 to CH16 can be inverted independently.
The waveform is inverted around the vertical position.
Notes When Inverting Waveforms
• Cursor measurements, automated measurement of waveform parameters, and
computation are performed on the inverted waveform.
• The trigger function is executed on the original waveform even if the waveform is
inverted.
• When measuring strain, inversion is not possible on waveforms after measurements.
The invert ON/OFF change takes effect on the next measurement.
To Next Page
