YOKOGAWA DL750 User Manual

9-22
IM 701210-05E

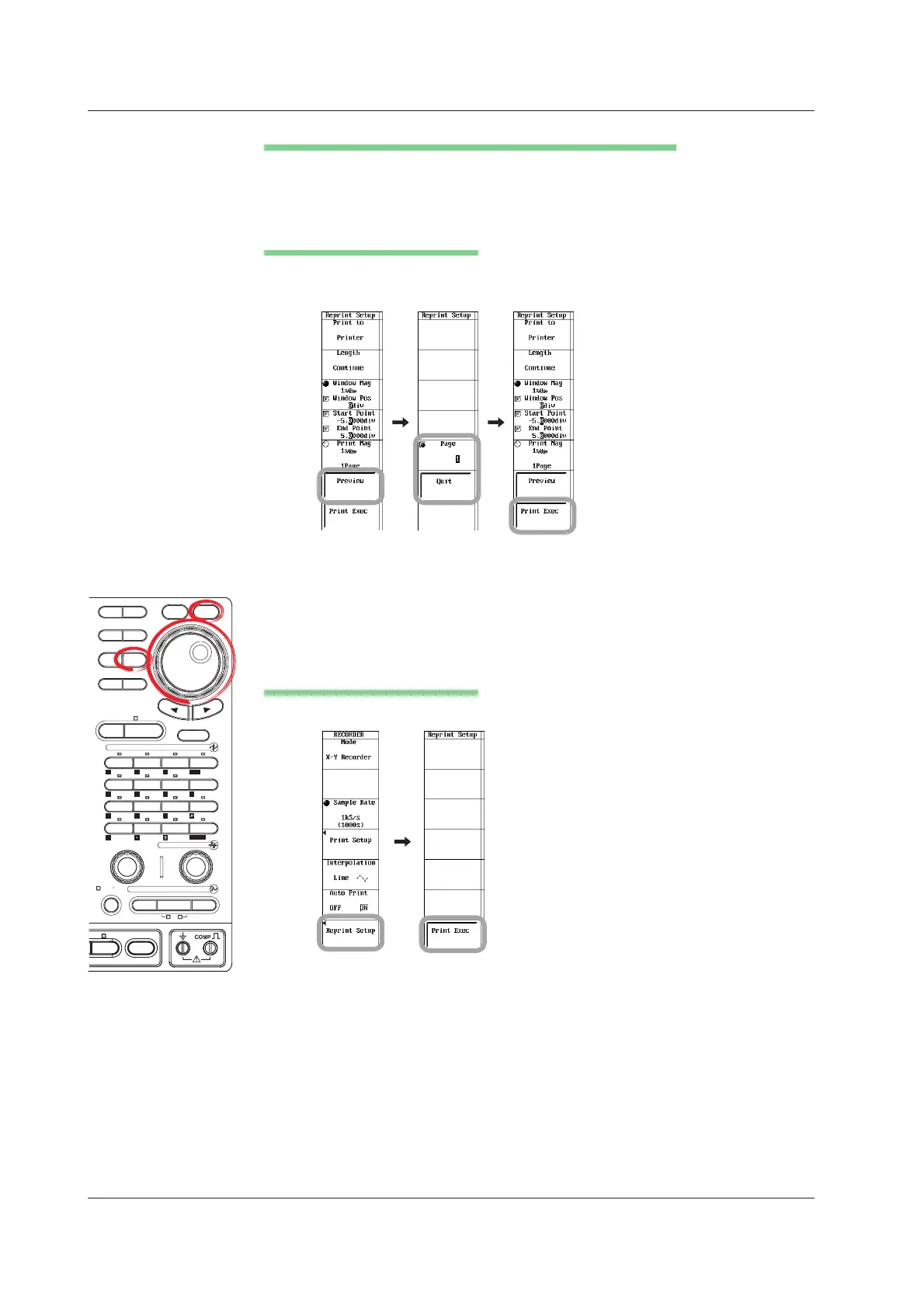

Displaying the Preview (Only If Continue Is Selected in Step 5)
14. Press the Preview soft key.
15. Use the jog shuttle to select the page you wish to preview.
16. Press the Quit soft key. The preview display closes.
Executing the Reprint Operation
17. Press the Print Exec soft key. Reprint is executed using the conditions set in
steps 6 to 13.
Reprinting the Waveform Recorded in X-Y Recorder Mode
Before carrying out the procedure below, record the X-Y waveform in X-Y Recorder
mode according to the procedures in sections 9.2 and 9.7.
1. Press the Reprint Setup soft key.
Executing the Reprint Operation
2. Press the Print Exec soft key.
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
RECORDER
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
DUAL
CAPTURE
9.8 Reprinting on the Built-in Printer
