12-18
IM 701210-06E

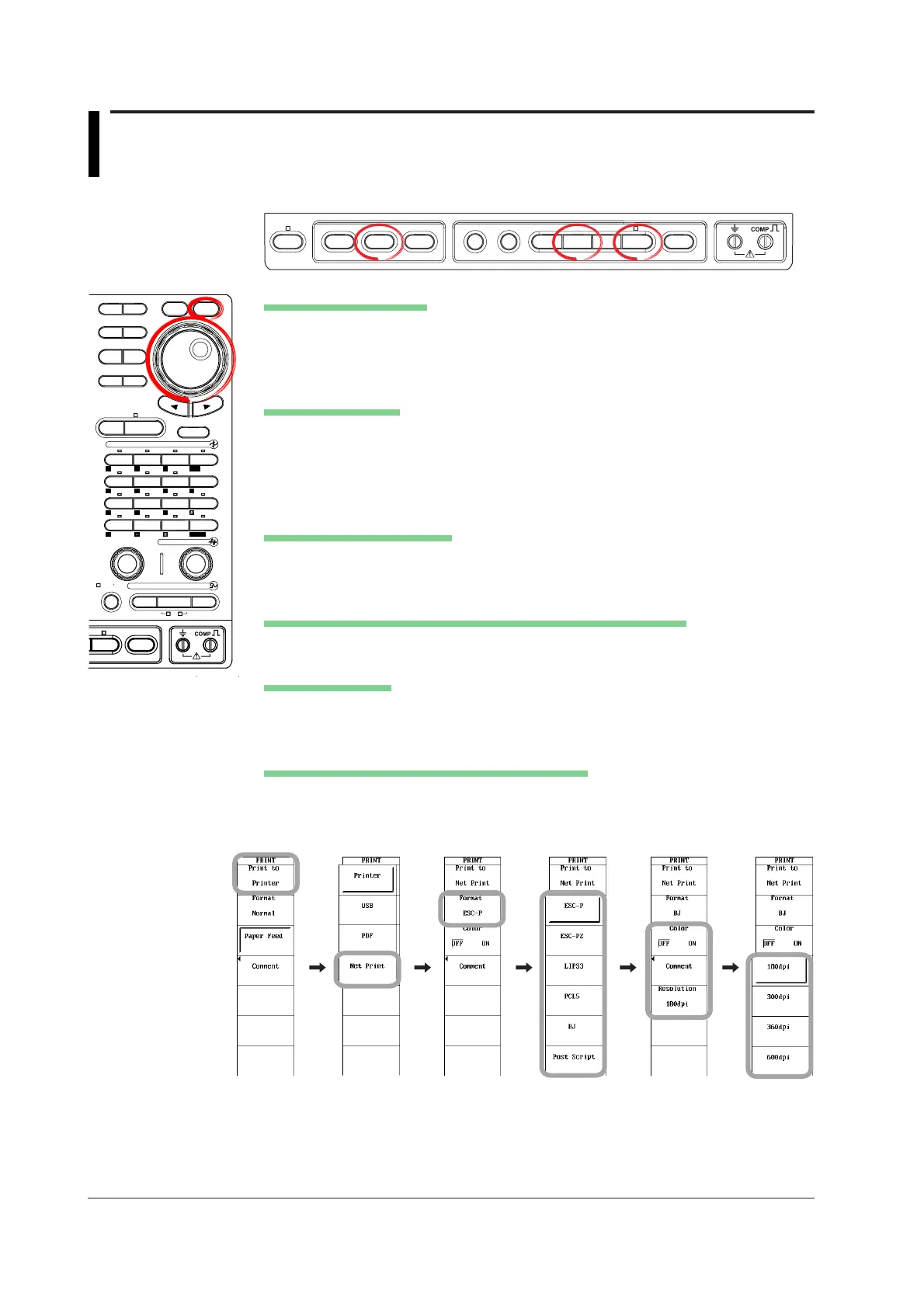

12.4 Printing the Screen Image Data on a Network
Printer
<For a description of this function, refer to page 2-62.>
Procedure
FILE
SHIFT
HELP
MISC
NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
SNAPSHOT CLEAR TRACE
MENU MENU
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
Configuring the Network
1. Configure the TCP/IP and network printer according to the procedures given in
section 16.2, “Configuring the TCP/IP” and section 16.4, “Configuring the
Network Printer.”
Selecting the Printer
2. Press SHIFT+PRINT.
3. Press the Print to soft key. The printer selection menu appears. (Net Print
appears only when the Ethernet interface option is installed.)
4. Press the Net Print soft key.
Selecting the Output Format
5. Press the Format soft key.
6. Select the soft key corresponding to the output format from ESC-P to PostScript.
Setting the Color (When Format Is ESC-P, ESC-P2, PCL5, or BJ)
7. Press the Color soft key to select ON or OFF.
Setting a Comment
8. Press the Comment soft key.
9. Enter the comment according to the procedure given in section 4.2.
Setting the Print Resolution (When Format Is BJ)
10. Press the Resolution soft key. The print resolution setup menu appears.
11. Press any of the soft keys corresponding to 180 dpi, 300 dpi, 360 dpi, and 600
dpi.
