10-1
IM 701210-06E
Waveform Computation
10
10.1 Adding, Subtracting, Multiplying, and Dividing
Waveforms
<For a description of this function, refer to page 2-47.>

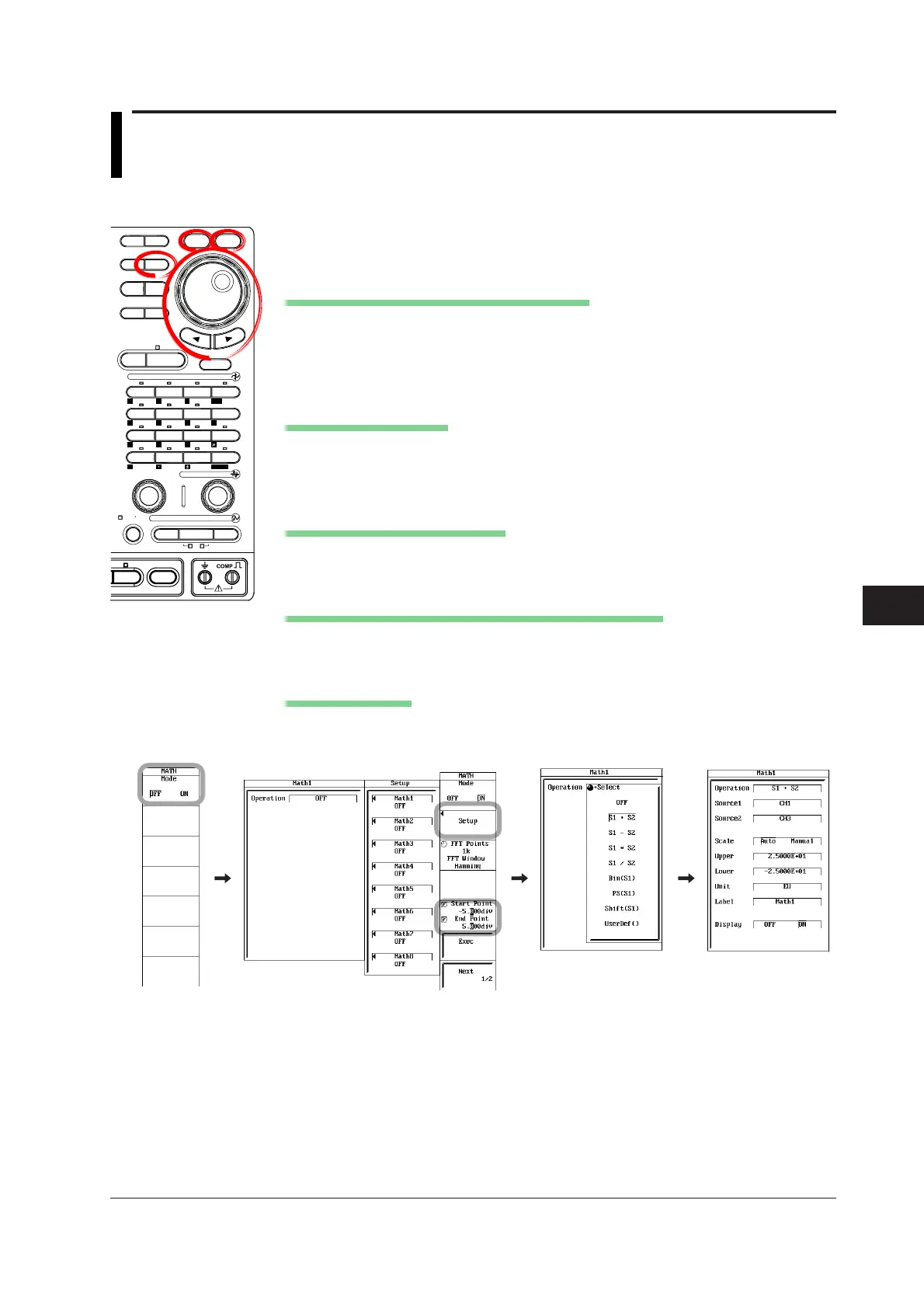

Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press MATH.
2. Press the Mode soft key to select ON.
Setting the Computation Start and End Points
3. Press the Start Point/End Point soft key to set the jog shuttle control to Start
Point.
4. Turn the jog shuttle to set the computation start point.
5. Likewise, set the End Point.
Setting the Computation
6. Press the Setup soft key. The Math1 to Math8 setup dialog boxes appear.
7. Use the jog shuttle and SELECT to select the Math waveform you wish to set.
The corresponding Math waveform setup dialog box appears.
Setting the Computing Operation
8. Use the jog shuttle and SELECT to set Operation to S1+S2, S1–S2, S1*S2, or
S1/S2.
Selecting the Channel on Which to Perform Computation
9. Use the jog shuttle and SELECT to select Source1.
10. Likewise, select Source2.
Setting the Scaling
11. Use the jog shuttle and SELECT to set Scale to Auto or Manual.
If you select Manual, proceed to step 9; if you select Auto, proceed to step 11.
Above is the menu when the user-defined computation option is installed.
The menu on models without the option is as follows:*1: Phase Shift, *2: Threshold, *3: Start Point/End Point, *4: Exec
*1
*2
*3
*4
Chapter 10 Waveform Computation
