3.5 Setting the Date and Time
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
FILE SHIFT HELP MISC NUM KEY

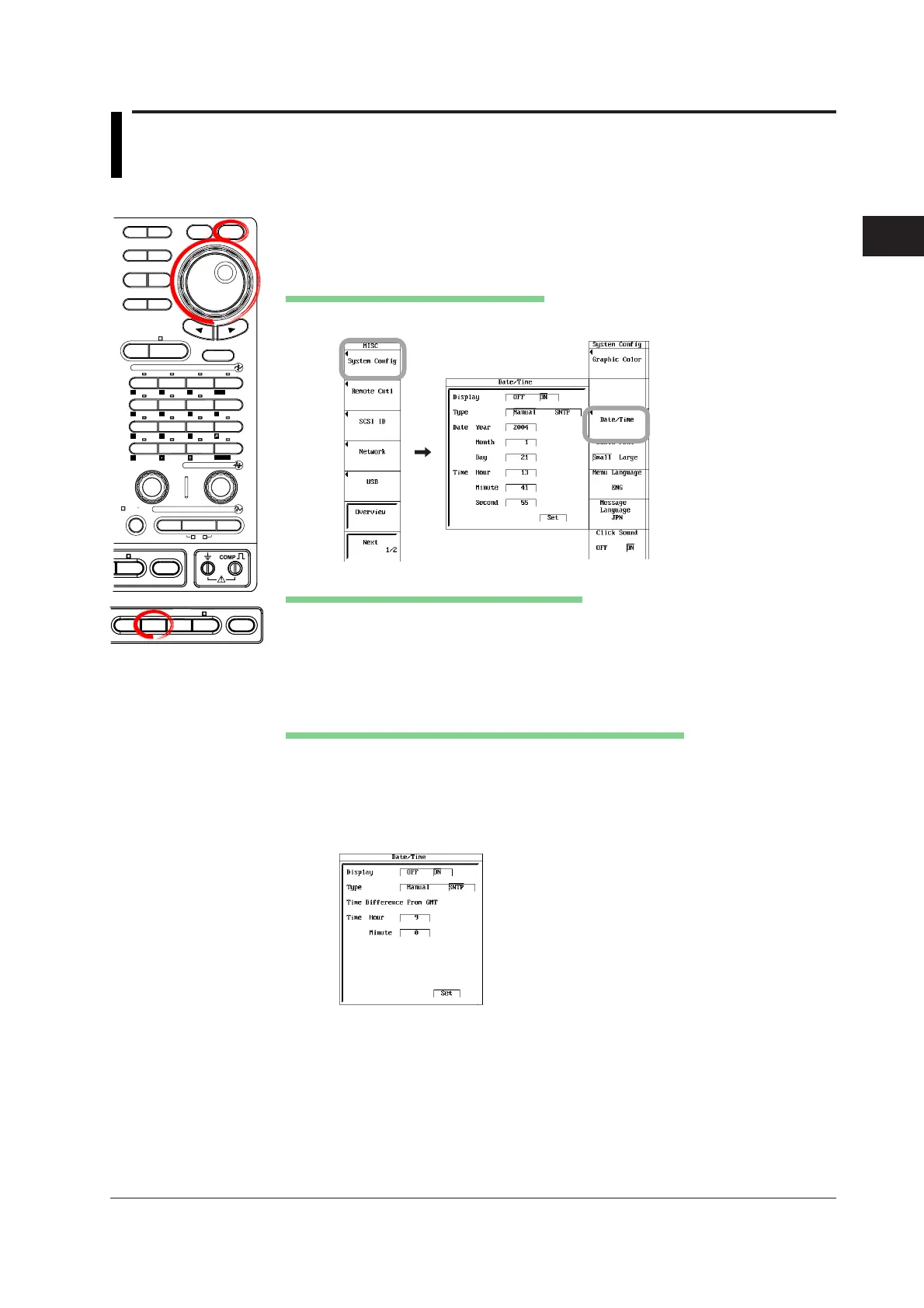

1. Press MISC.
2. Press the System Config soft key.
3. Press the Date/Time soft key. The date/time setting dialog box appears.
Turning ON/OFF the Date/Time Display
4. Use the jog shuttle and SELECT to set the Display ON or OFF.
Setting the Time and Date Manually (Manual)
5. Use the jog shuttle and SELECT to set the Type to Manual.
6. Use the jog shuttle and SELECT to set the Date Year.
7. Likewise, set the Month, Day, Time Hour, Minute, and Second.
8. Use the jog shuttle to move the cursor to Set and press SELECT. The date/
time specified in steps 4 and 5 are applied.
Setting the Date and Time Using the SNTP Server (Optional)
To obtain the time from the SNTP server, you must first connect to the network, and then
to the SNTP server. For details, see section 16.2, "Setting up the TCP/IP," and section
16.8, "Setting the Time Difference from GMT (Greenwich Mean Time)/Setting SNTP."
9. Proceed to step 4, then use the jog shuttle and SELECT to set the Type to
SNTP.
10. Use the jog shuttle and SELECT to set the time difference from GMT
(Greenwich mean time).
11. Likewise, set the Minute.
12. Use the jog shuttle Set to move the cursor to Set.
13. Press SELECT to obtain the time from the SNTP server. The time and date
calculated from the entered GMT time difference is set.
