16.2 Setting up the TCP/IP
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
FILE SHIFT HELP MISC NUM KEY

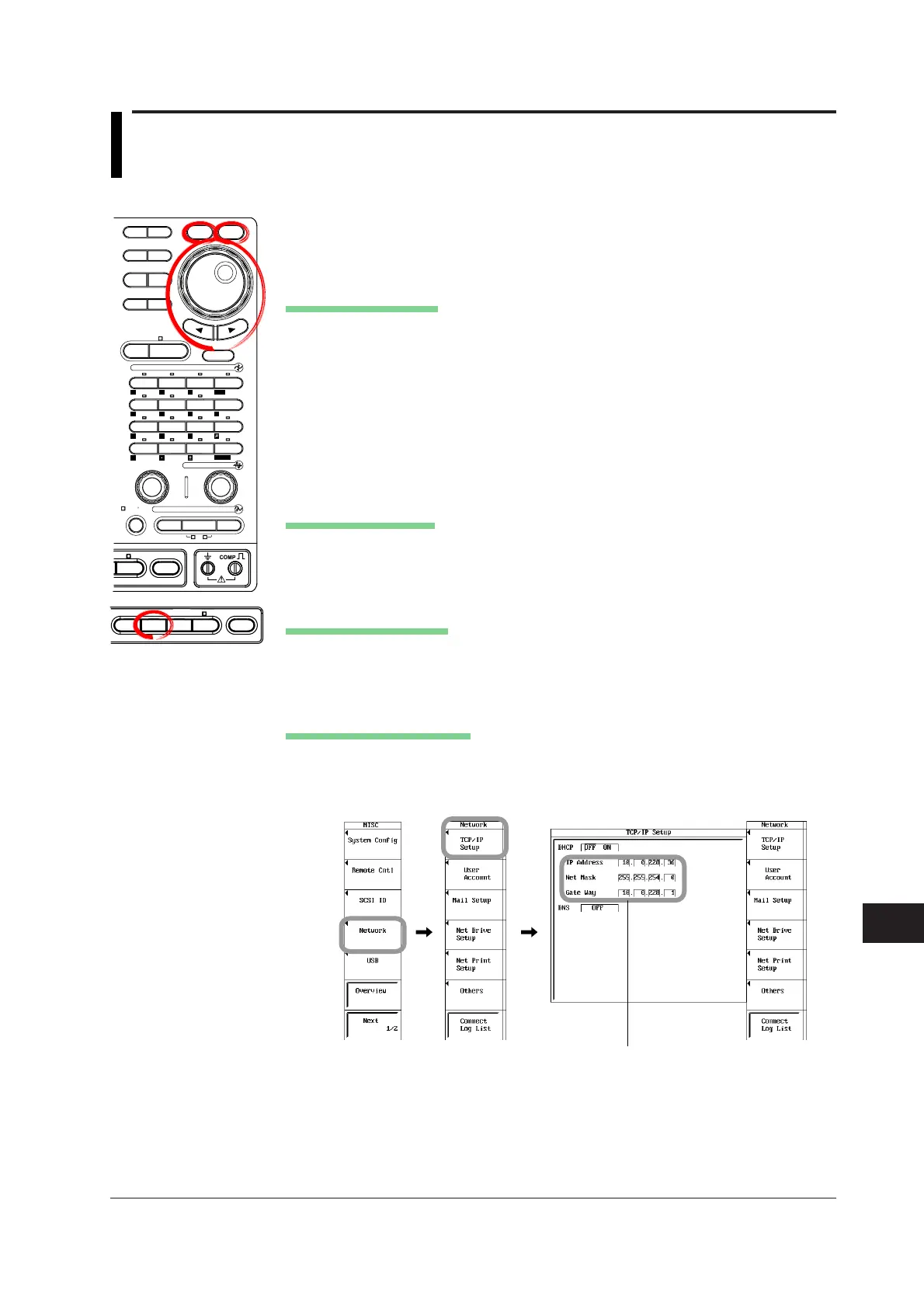

1. Press MISC.
2. Press the Network soft key.
3. Press the TCP/IP Setup soft key. The TCP/IP setup menu appears.
Turning DHCP ON/OFF
4. Use the jog shuttle and SELECT to set DHCP to ON or OFF.
If you DHCP to OFF, proceed to step 5.
If the DHCP is set to ON, you do not have to set the IP address, subnet mask,
and default gateway.
• To set up the DNS, proceed to step 11.
• If you do not wish to set up the DNS, check the network cable connection and
restart the DL750/DL750P. The IP address, subnet mask, and default
gateway are automatically configured.
Setting the IP Address
Set the IP address if you turned DHCP OFF.
5. Use the jog shuttle and SELECT to set the IP Address. Enter using values in
the range of 0 to 255.
Setting the Subnet Mask
Set the subnet mask if you turned DHCP OFF.
6. Use the jog shuttle and SELECT to set the Net Mask. Enter using values in
the range of 0 to 255.
Setting the Default Gateway
Set the default gateway if you turned DHCP OFF.
7. Use the jog shuttle and SELECT to set the Gate Way. Enter using values in
the range of 0 to 255.
Automatically configured when DHCP is turned ON.
