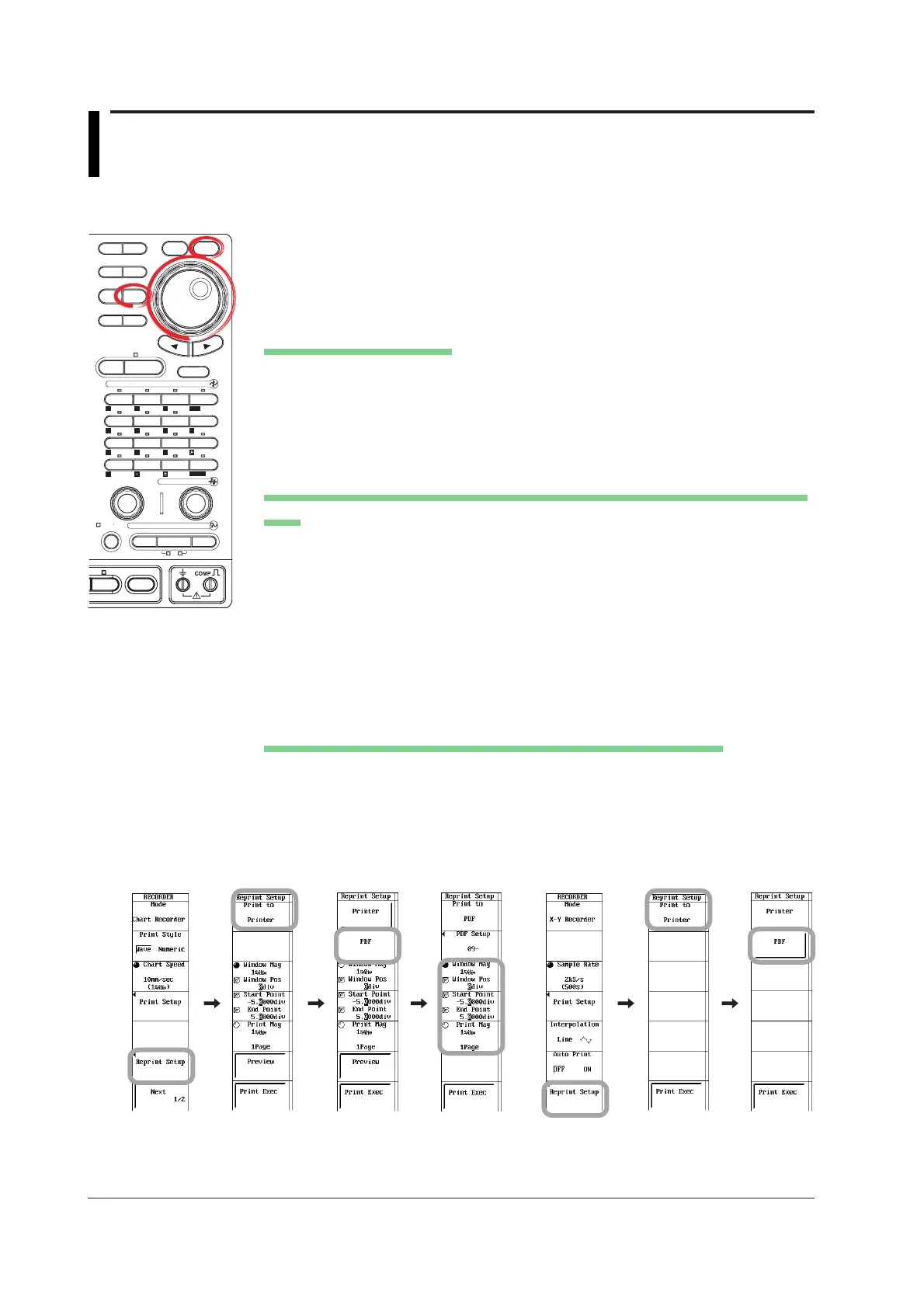

9.9 Creating a PDF File of the Reprint Image
<For a description of this function, refer to page 2-46.>
Procedure
Before carrying out the procedure below, record the T-Y waveform in Chart Recorder
mode according to the procedures in sections 9.2 and 9.5, or record the X-Y waveform in
X-Y Recorder mode according to the procedures in section 9.7.
1. Press the Reprint Setup soft key.
Setting the Print Destination
2. Press the Print to soft key to display the menu used to select the print
destination.
3. Press the PDF soft key.
In Chart Recorder mode, proceed to step 4.
In X-Y Recorder mode, proceed to step 12.
Selecting the Section to Be Output to the PDF File (Only When the Chart Recorder
Mode
4. Press the Window Mag/Window Pos soft key to select Window Mag.
5. Use the jog shuttle and SELECT to set the zoom rate. You can reduce the
zoom rate to redisplay the waveform that had been cleared from the screen.
6. Press the Window Mag/Window Pos soft key to select Window Pos.
7. Use the jog shuttle and SELECT to set the zoom position. You can move the
zoom position to redisplay the waveform that had been cleared from the screen.
8. Press the Start Point/End Point soft key.
9. Use the jog shuttle and SELECT to set the start and end points of the section
to be output to the PDF file.
Setting the Print Magnification (Only When the Chart Recorder Mode)
10. Press the Print Mag soft key.
11. Use the jog shuttle to set the magnification of the section to be output to the
PDF file that was selected in steps 4 to 9. The top section of the menu shows
the magnification; the bottom section shows the number of pages when the
waveform is recorded using the magnification indicated in the top section.
