5-2
IM 701210-05E

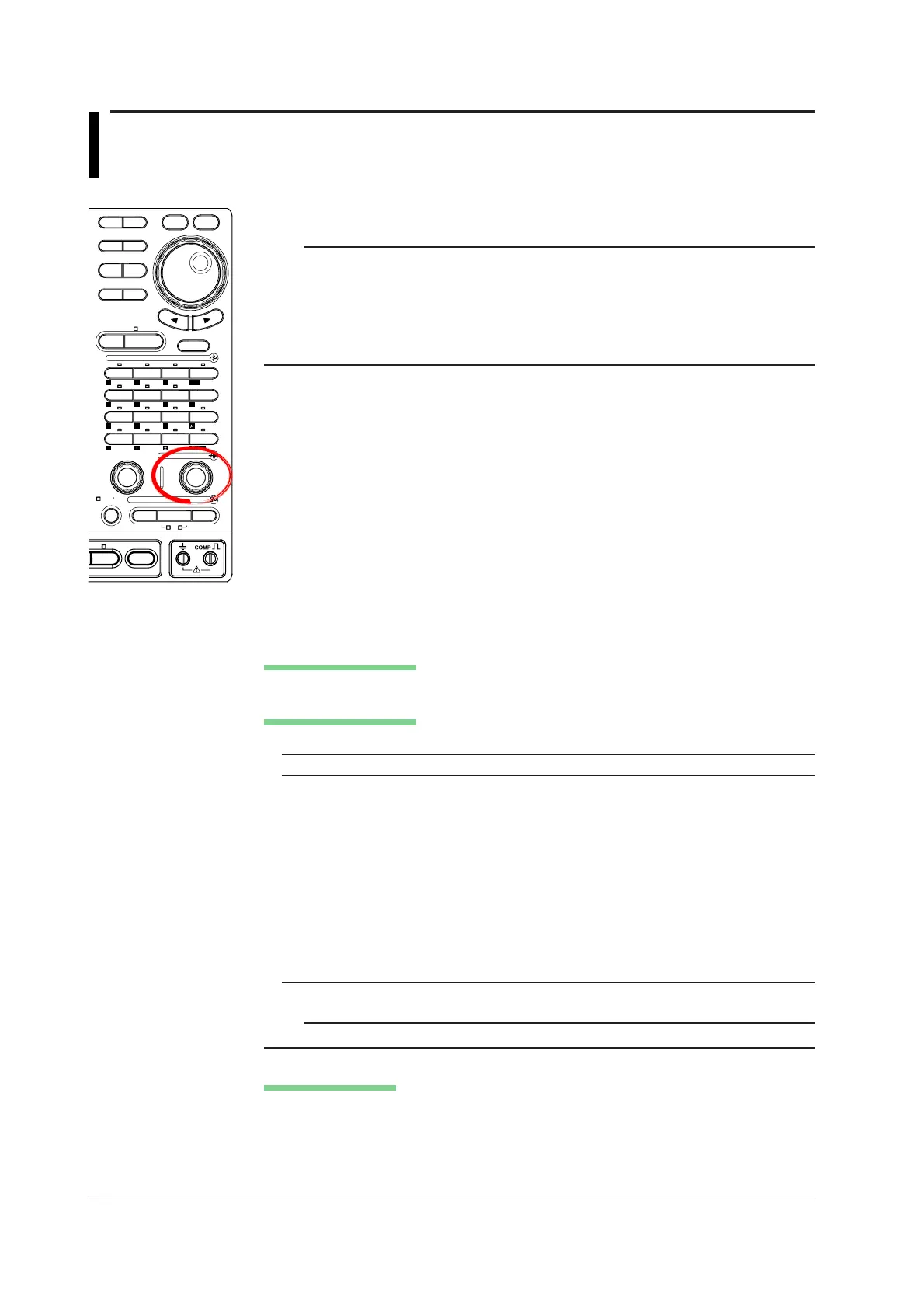

5.2 Setting T/div
<For a description of this function, refer to page 2-3.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Turn the TIME/DIV knob to set the T/div value.
Note
• If the TIME/DIV knob is turned while the waveform acquisition is stopped, the new T/div
value is displayed within the parentheses at the upper right corner of the screen. The new
T/div value becomes valid the next time acquisition is started.
• For details on the relationship between T/div and the sample rate, see appendix 1,
“Relationship between the Time Axis Setting, Sample Rate and Record Length.”
• For a description of the T/div setting of the sub waveform of the dual capture function, see
section 7.6.
Explanation
Set the time per division on the screen grid.
Selectable T/div Range
500 ns/div to 3 day/div
Maximum Sample Rate
The maximum sample rate varies depending on the input module as follows.
Input Module Maximum Sample Rate
701250 (HS10M12) 10 MS/s (5 MS/s)
701251 (HS1M16) 1MS/s
701255 (NONISO_10M12) 10 MS/s (5 MS/s)
701260 (HV (with RMS)) 100 kS/s
701261 (UNIVERSAL) 100 kS/s (when measuring voltage), 500 Hz (data update
rate when measuring temperature)
701262 (UNIVERSAL (AAF)) 100 kS/s (when measuring voltage), 500 Hz (data update
rate when measuring temperature)
701265 (TEMP/HPV) 500 Hz (data update rate)
701270 (STRAIN_NDIS) 100 kS/s
701271 (STRAIN_DSUB) 100 kS/s
701275 (ACCL/VOLT) 100 kS/s
701280 (FREQ) 25 kHz (data update rate)
Values inside the parentheses are those when the DSP channel (optional) is ON.
Note
The maximum sample rate of a DSP channel (optional) is 100 kS/s.
T/div and Roll Mode
The display switches to roll mode if T/div is set to 100 ms/div to 3 day/div under the
following conditions.
• Acquisition mode is set to a mode other than averaging.
• The trigger mode is set to auto, auto level, single, or log.
• The time base is set to the internal clock signal.
To Next Page
