6-13
IM 701210-05E
Triggering
6

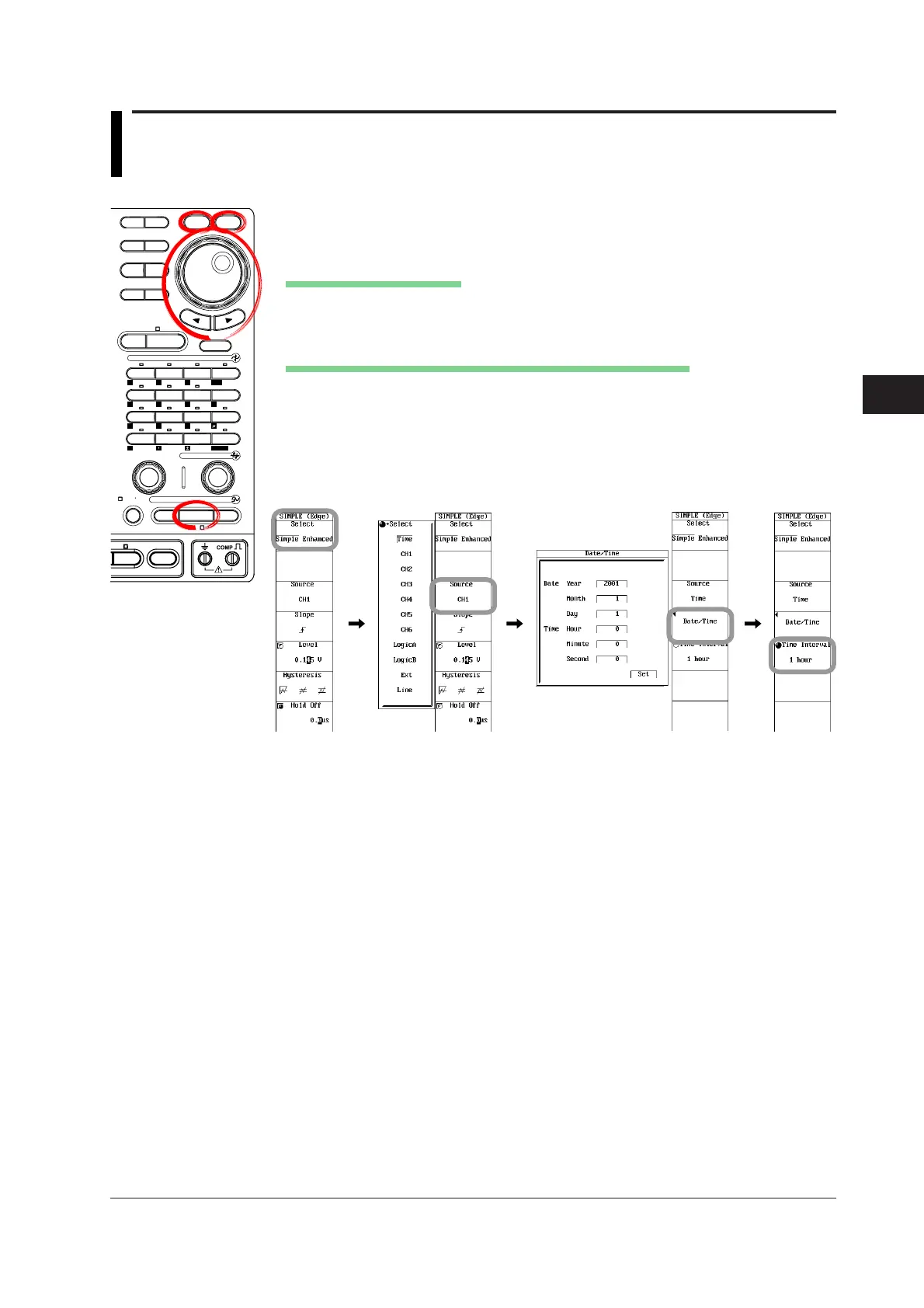

6.8 Setting the Timer Trigger (SIMPLE)
<For a description of this function, refer to page 2-20.>
Procedure
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE
SHIFT
1. Press SIMPLE/ENHANCED.
2. Press the Select soft key to select Simple.
Setting the Trigger Source
3. Press the Source soft key. The trigger source selection menu appears.
4. Use the jog shuttle and SELECT to select Time.
Setting the Date/Time and the Interval for Activating Triggers
5. Press the Date/Time soft key. A setup dialog box opens.
6. Use the jog shuttle and SELECT to set the Date and Time.
7. When you are done, use the jog shuttle and SELECT to select Set.
8. Press the Time Interval soft key.
9. Turn the jog shuttle to set the time interval for activating triggers in the range of
1 min to 24 hours.
DSP1 to DSP6 are optional.
To Next Page
