14-6
IM 701210-06E
14.5 External Start/Stop Input (GO/NO-GO)
The DL750/DL750P start/stop can be controlled externally.
External Start/Stop Input Terminal
The terminal is shared with the GO/NO-GO I/O Terminal. This terminal is used as an
external start/stop input when the GO/NO-GO determination I/O function is not used
(when Mode is OFF on the GO/NO-GO menu).
Specifications
Modular jack (RJ-11). Use the optional accessory 366973 (sold separately) for the
cable.
6
1
1
Pin No. Signal Name
2
3
4
5
6
NC (no connection)
START IN
NC (no connection)
GO/NO-GO
NC (no connection)
Connector on the DL
Start on the low edge
Stop on the high edge
GND
SPEAKER
Input level: TTL (0 to 5 V)

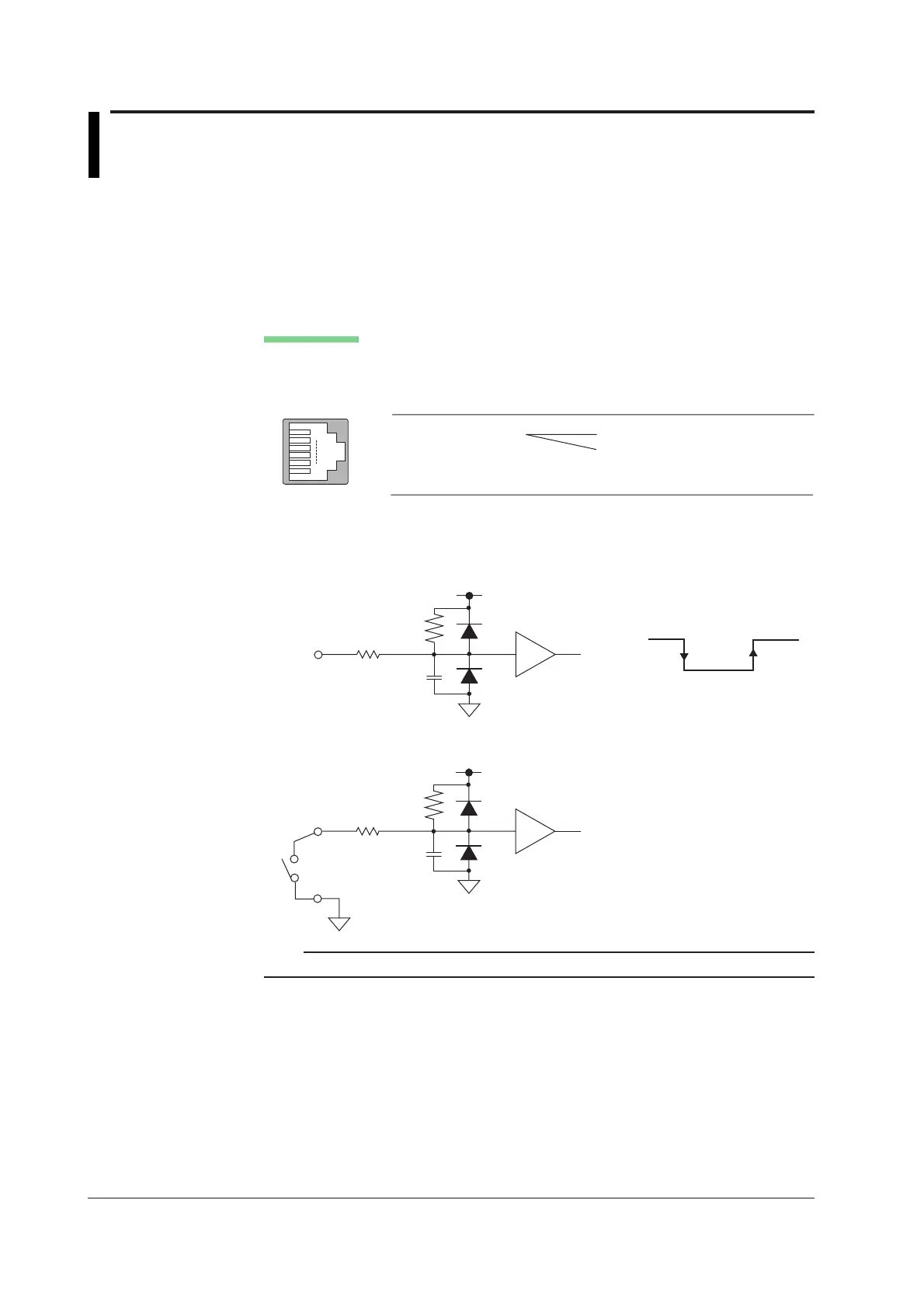

External Start/Stop Input Circuit Diagram
+5 V
120 Ω
LCX14
4.7 kΩ
100 pF
2
(Pin No.)
High
Low
START
STOP
+5 V
120 Ω
LCX14
4.7 kΩ
100 pF
2
• Switch input is possible
5
Start at ON
Stop at OFF
Note
Low and High edges are used to detect start/stop.
